C500

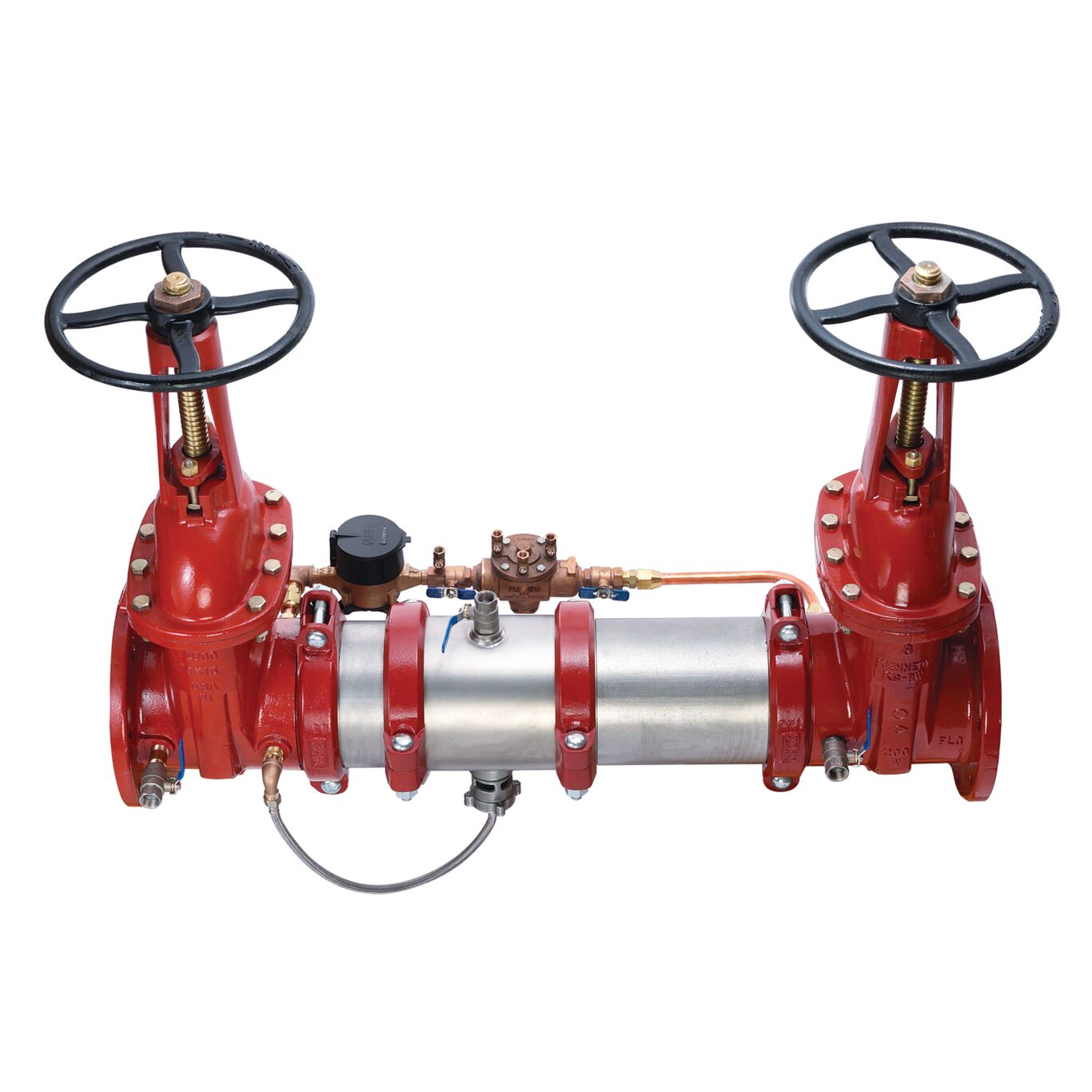

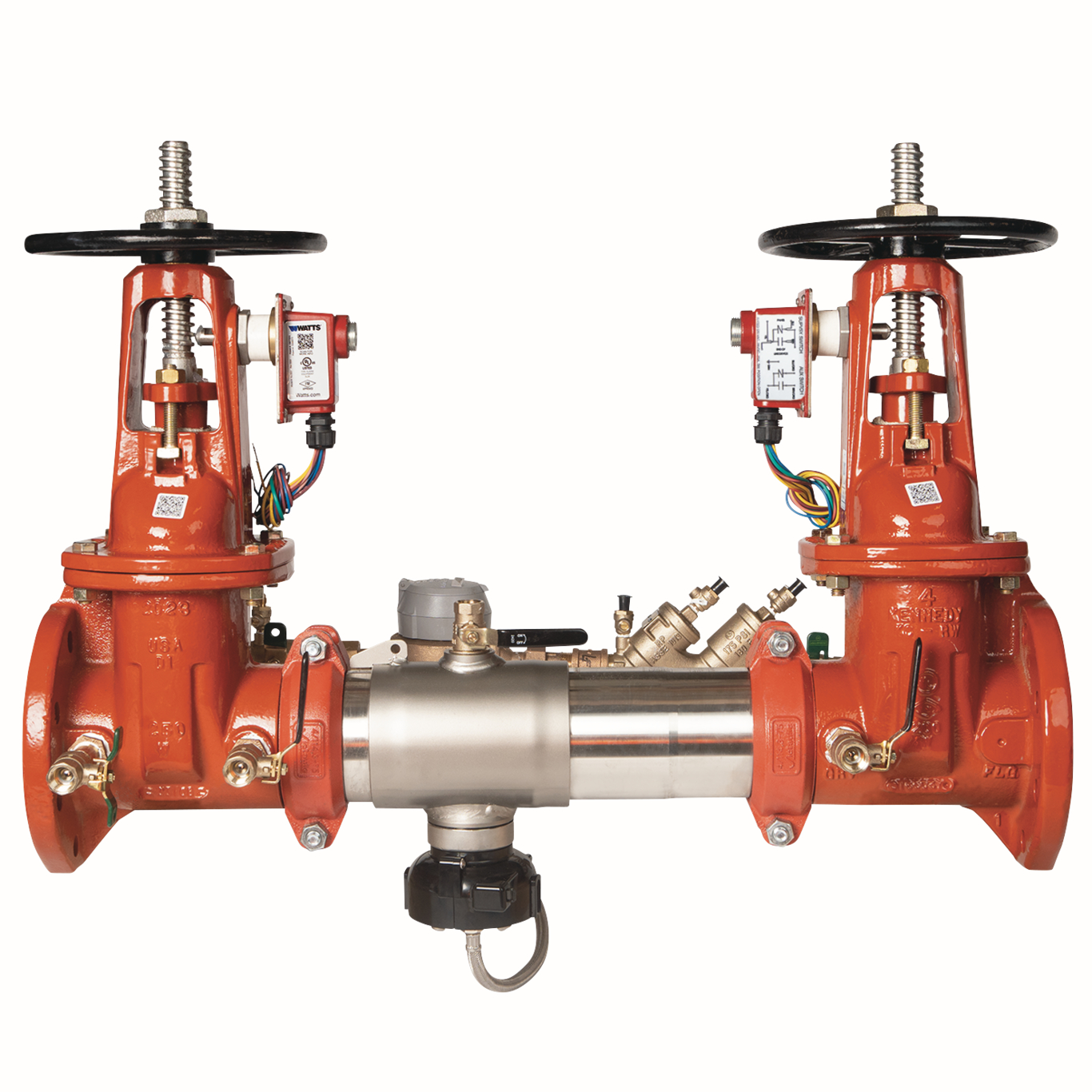

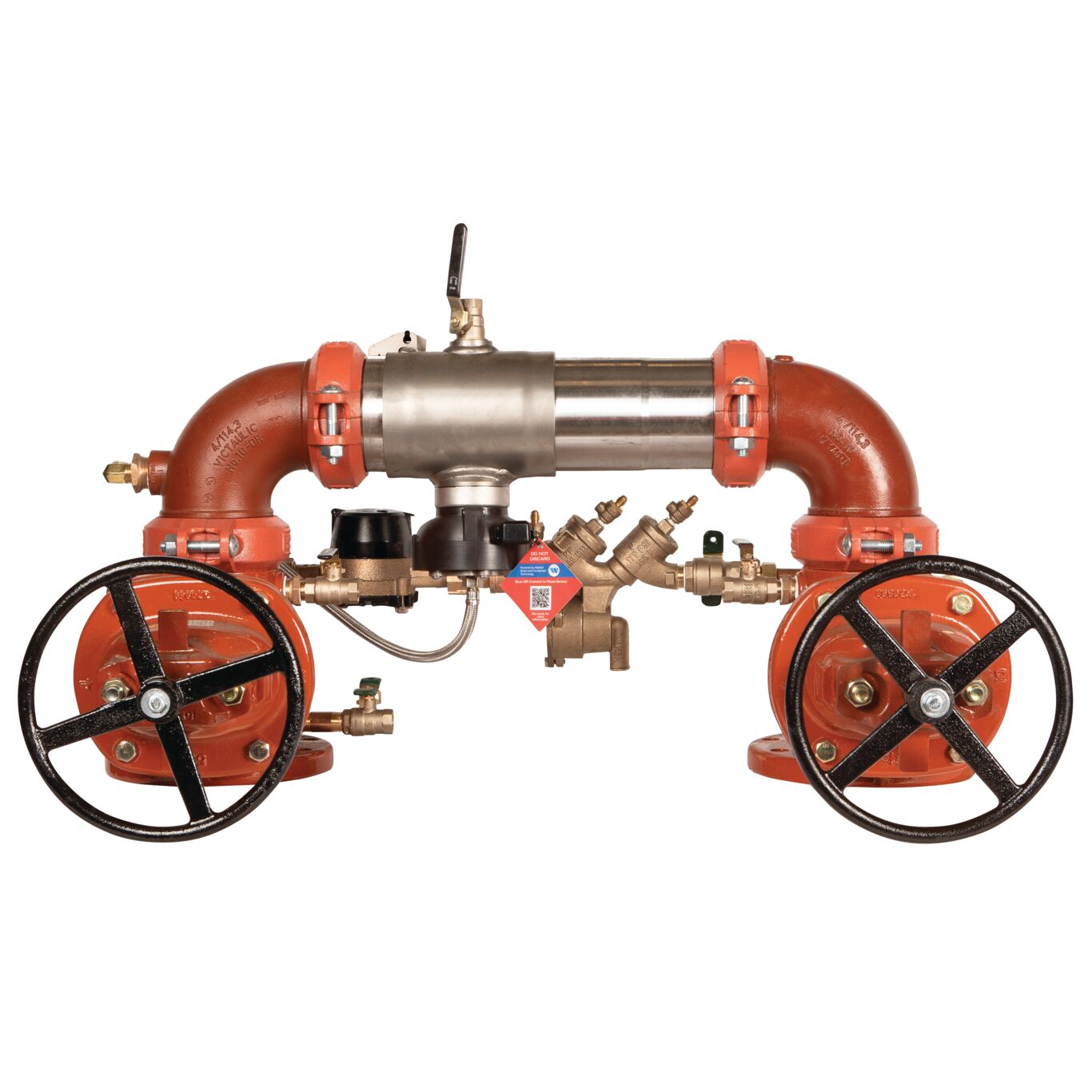

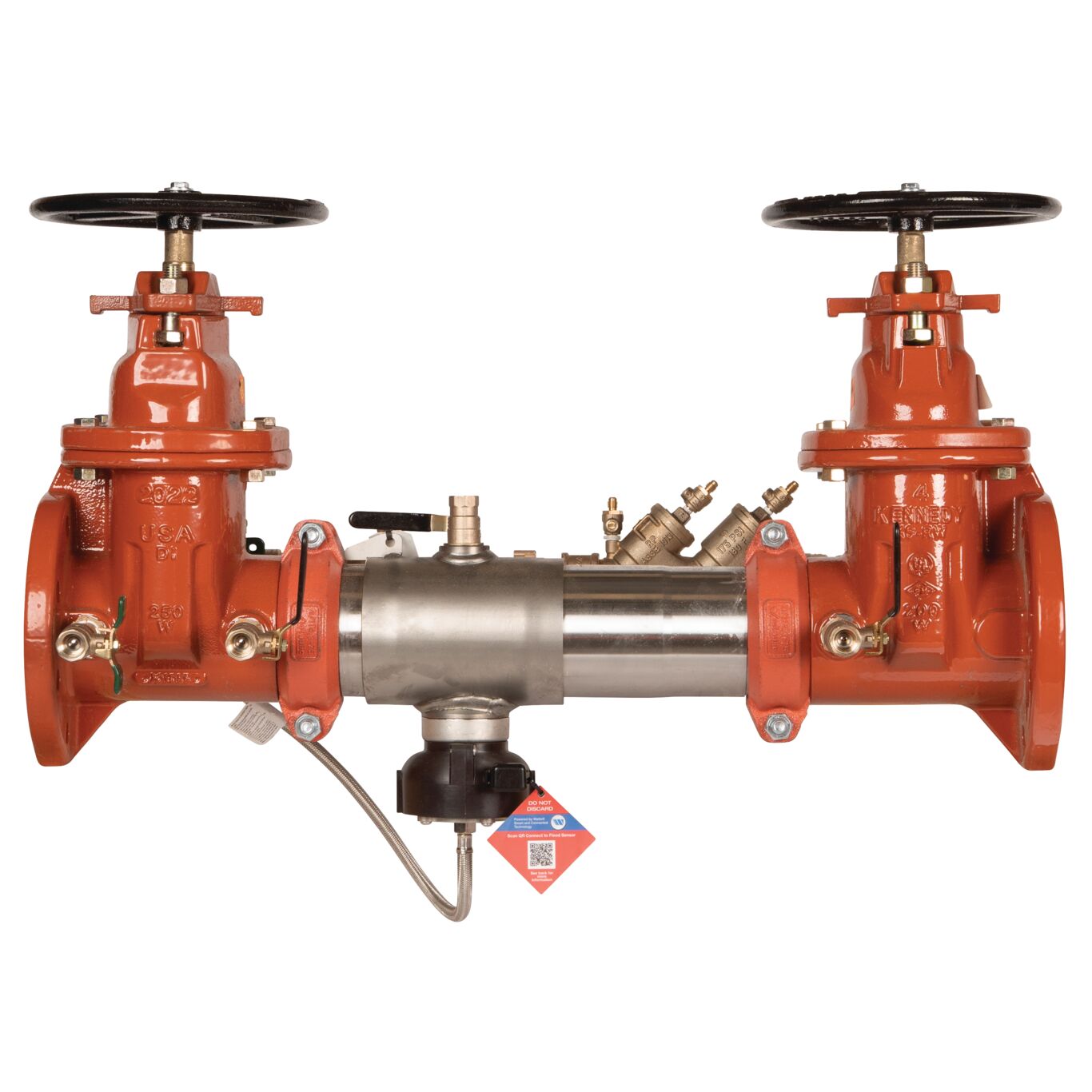

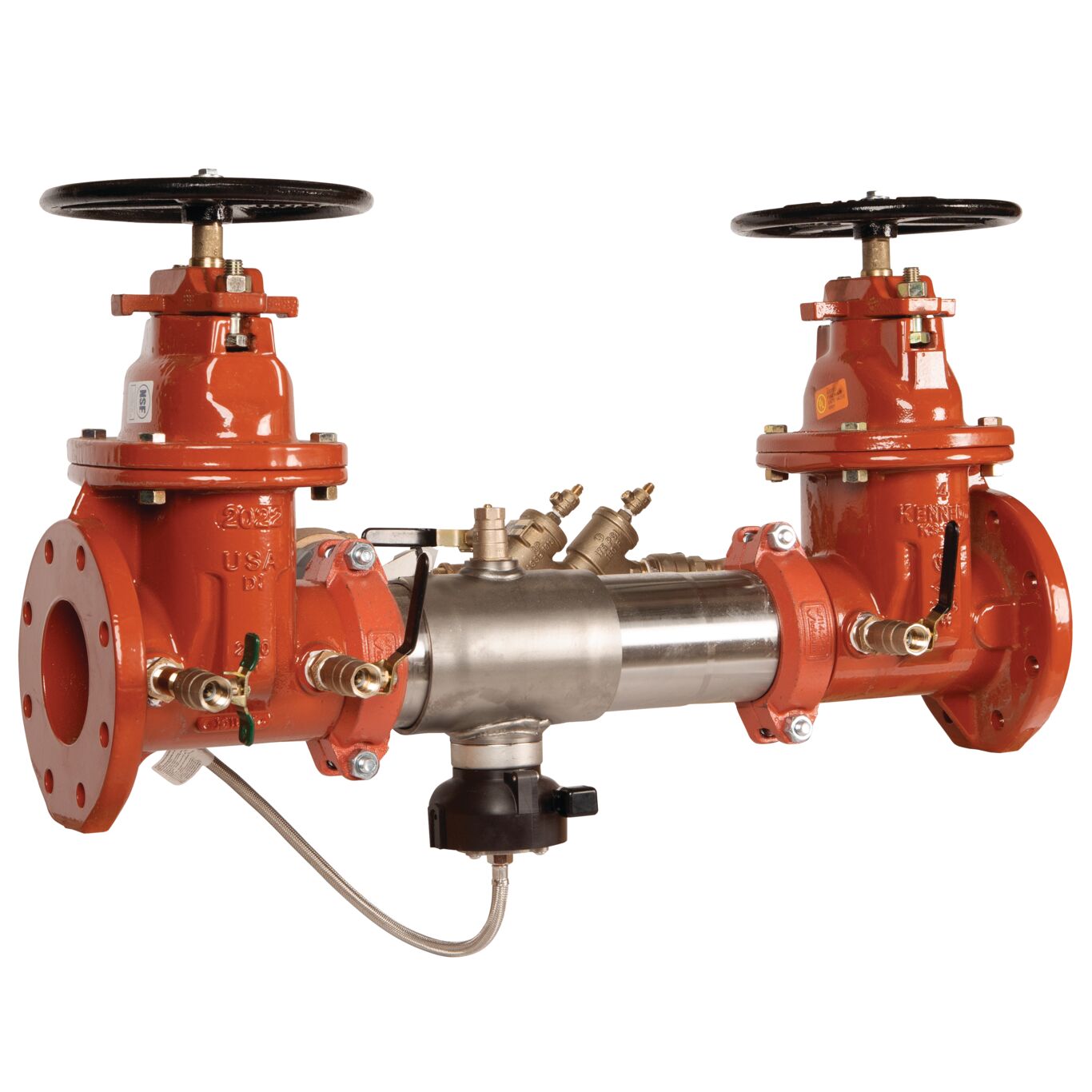

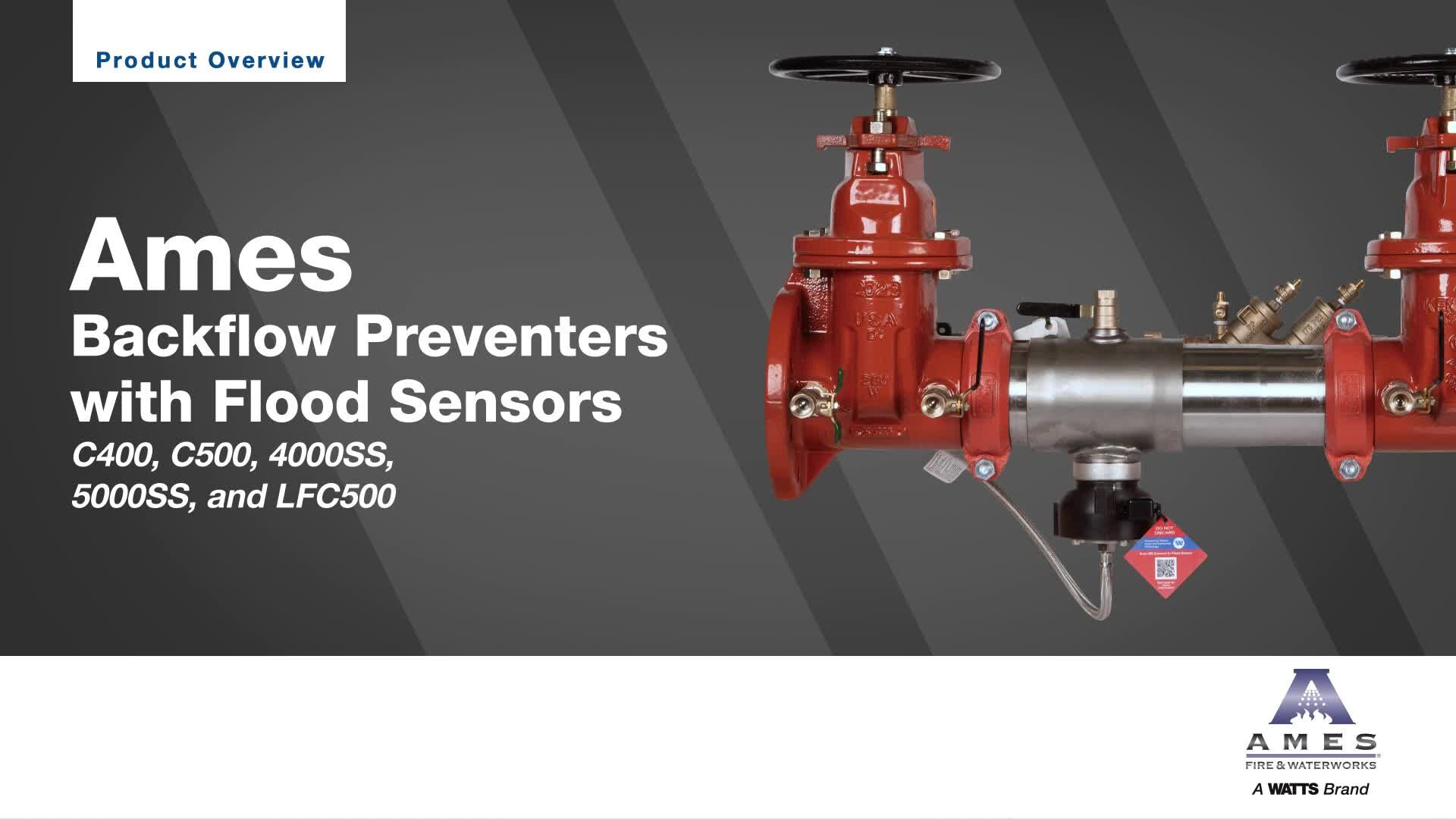

Stainless Steel Reduced Pressure Detector Assembly Backflow Preventers with Flood Sensor - 2 1/2 - 10 Inch Sizes
Series C500 reduced pressure detector assemblies feature a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. Activated through an add-on connection kit, the sensor can trigger the alert system sending notification of flood detection to facility personnel. Connection kits are available for BMS and cellular communication.
This series help stop the reverse flow of fire protection system substances being pumped or siphoned into the potable water supply. A meter incorporated to detect ground leaks and unauthorized illegal taps greatly reduces annual water expenses. It is 70% lighter than traditional designs and is ideal for health hazard cross-connections, such as on fire sprinkler systems. Check with local water authorities for installation requirements.
To learn more visit: https://www.watts.ca/floodprotectionsystem
Features
- Sensor on the relief valve for flood detection
- Protects drinking water supplies against dangerous cross-connections, plus detects loss due to underground water leaks or unauthorized water usage
- Entire valve body and closure sleeve manufactured from 304 stainless steel
- Includes two check valves, a pressure-differential relief valve, shutoff valves, torsion spring checks and relief valve, and bronze nickel-plated test cocks
- Extremely compact design is significantly lighter than traditional designs
- Patented link check provides low pressure loss
- Flood alert feature activated with add-on connection kit, compatible with BMS and cellular communication
