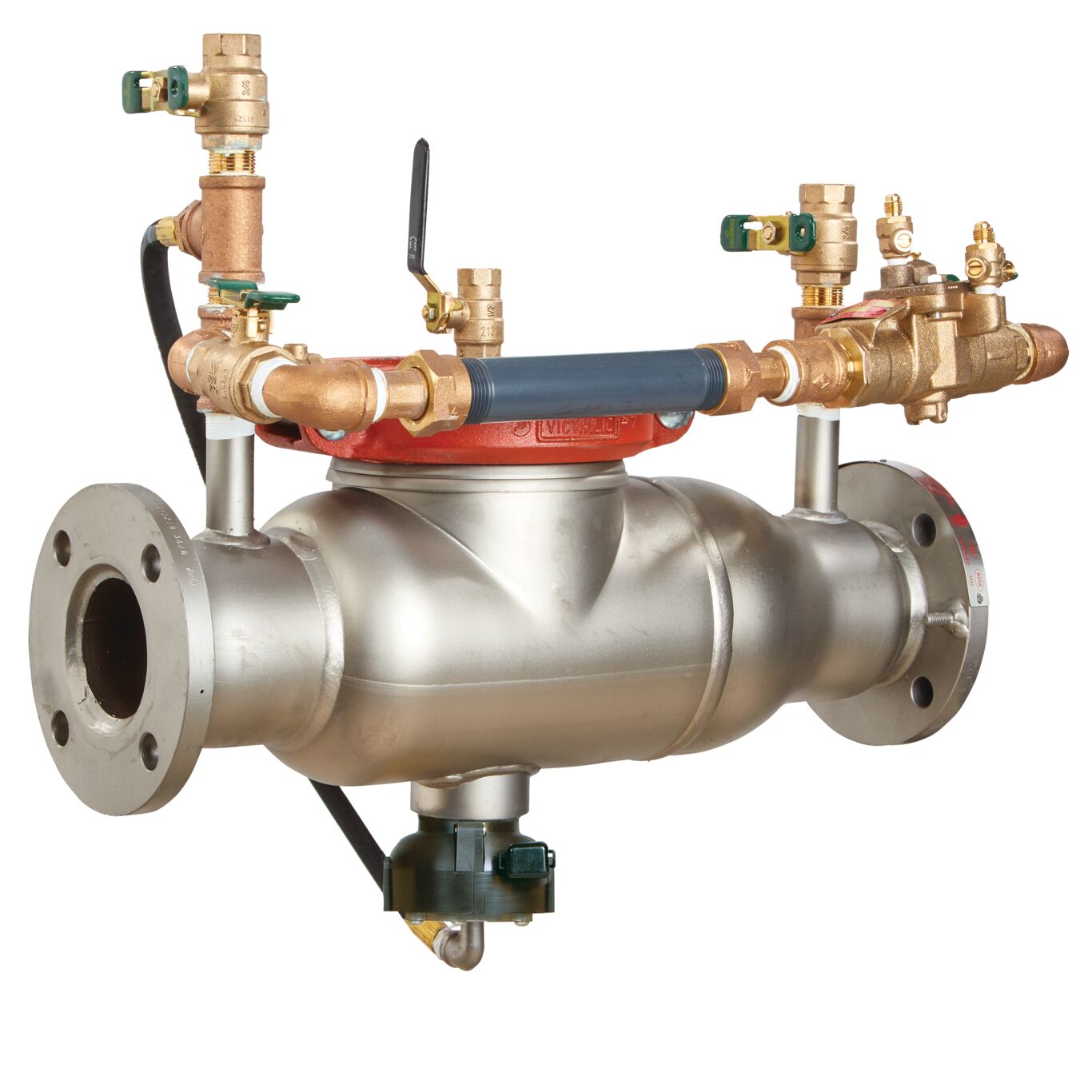

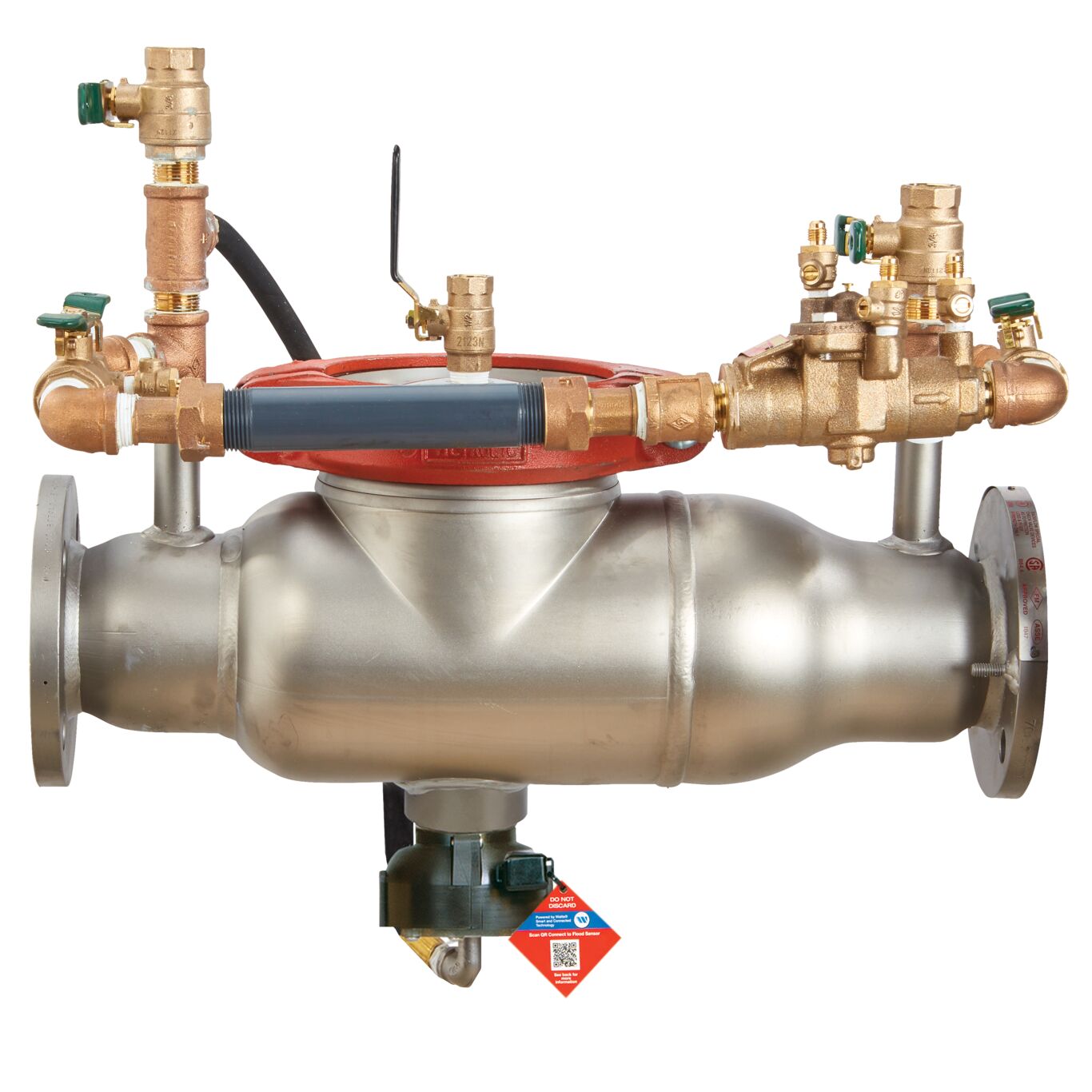

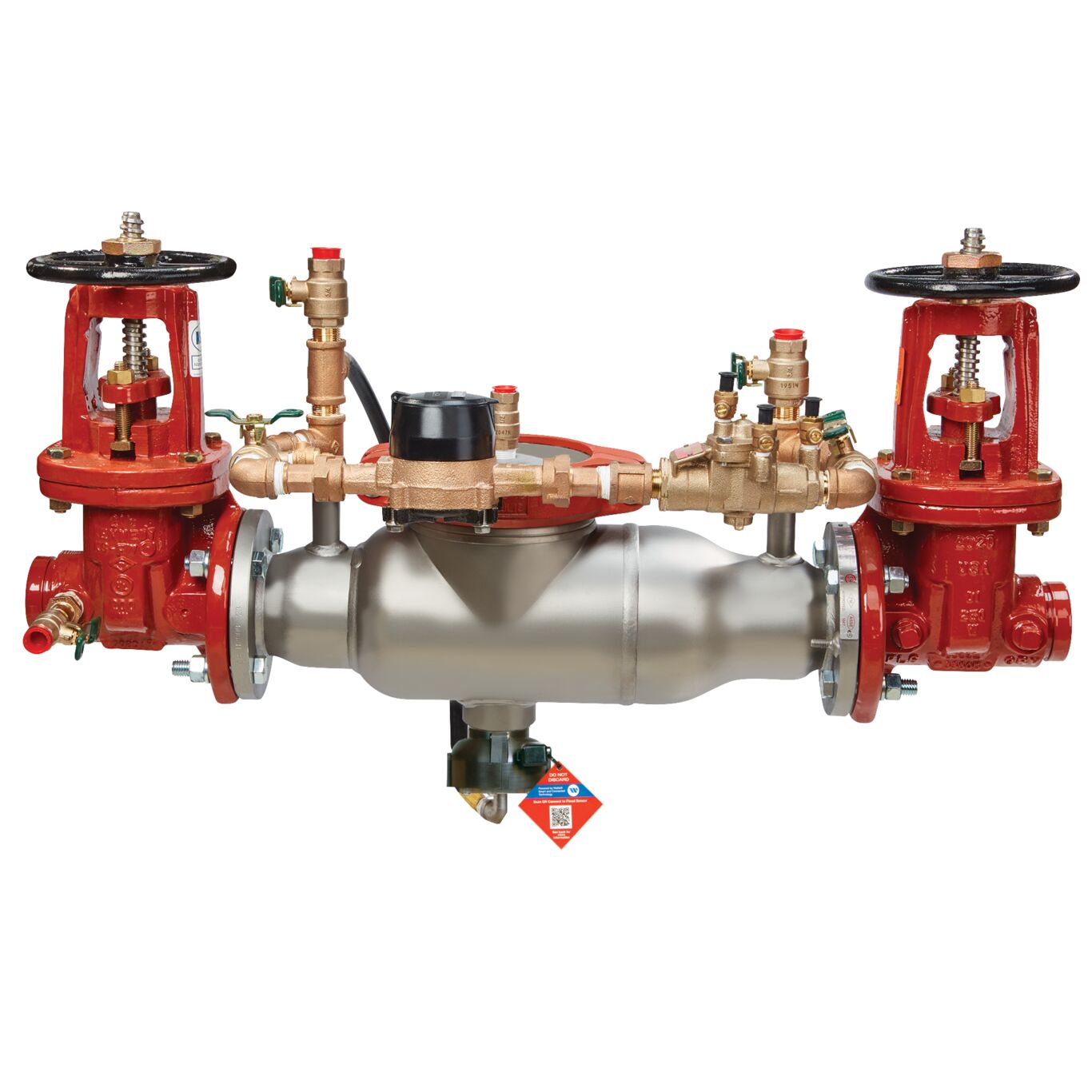

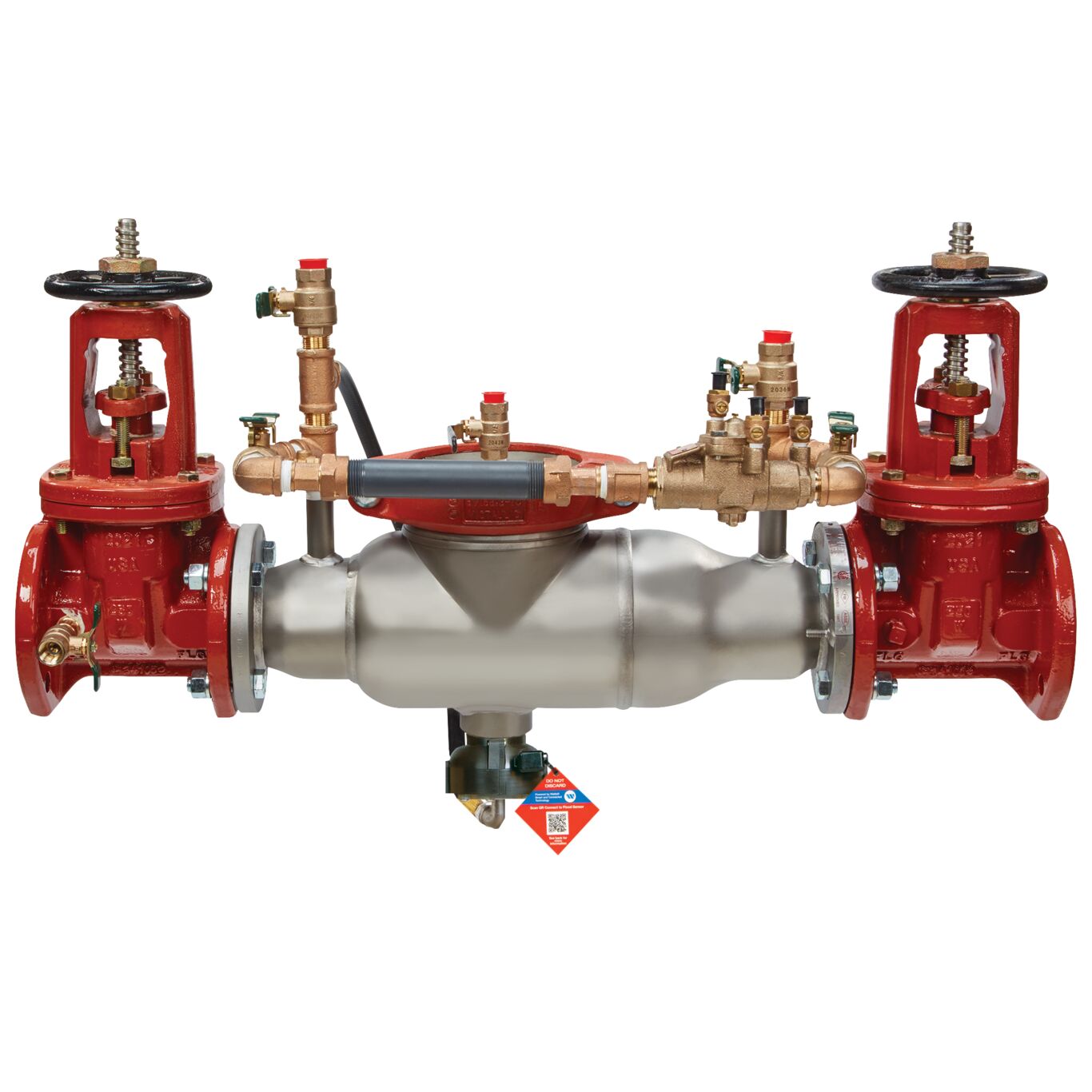

5000SS
Stainless Steel Reduced Pressure Detector Assembly Backflow Preventers
Series 5000SS reduced pressure zone assembly backflow preventers feature a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. Activated through an add-on connection kit, the sensor can trigger the alert system sending notification of flood detection to facility personnel. Connection kits are available for BMS and cellular communication.
This series prevents the reverse flow of contaminated water caused by backsiphonage or backpressure from entering the potable water supply. Ideal for protection at health hazard cross-connections or for containment at the service line entrance. Its compact modular design facilitates maintenance and assembly access. Check with local water authorities for installation requirements.
To learn more visit: https://www.watts.ca/floodprotectionsystem
Features
- Sensor on the relief valve for flood detection
- Meter detects underground leaks and unauthorized water usage
- Stainless steel relief valve features balanced rolling diaphragm to reduce maintenance costs and eliminate sliding seats
- Maximum Working Pressure: 175 psi (12.06 bar)
- Cam-check assembly provides low head loss
- Short lay length is ideal for retrofit installations
- Ideal for installation on fire protection systems
- Flood alert feature activated with add-on connection kit, compatible with BMS and cellular communication
Literature
-
- Flyer - Flood Detection for RPZ/RPDA Backflow Preventers with Flood Sensor
- Flyer - Flood Detection for RPZ/RPDA Backflow Preventers with Flood Sensor (French)
- Installation Instructions - 4000SS, 5000SS (2 1/2 - 6 IN)
- Installation Instructions - BMS Flood Sensor Connection Kit
- Installation Instructions - BMS Sensor Retrofit Connection Kit - 994, 957, 957RPDA, LF957RPDA, C400, C500, LFC500, 4000SS, 5000SS
- Installation Instructions - Cellular Flood Sensor Connection Kit
- Installation Instructions - Cellular Sensor Retrofit Connection Kit - 994, 957, 957RPDA, LF957RPDA, C400, C500, LFC500, 4000SS, 5000SS
- Specification Sheet - 5000SS
- Specification Sheet - 5000SS (French)
- Specification Sheet - 5000SS (Spanish)
- Specification Sheet - Ames Air Gaps, Elbows and Test Cocks
- Specification Sheet - Relief Valve Discharge Rates
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
