RD-100-F

Roof Drain with Deck Flange/Adj. Extension

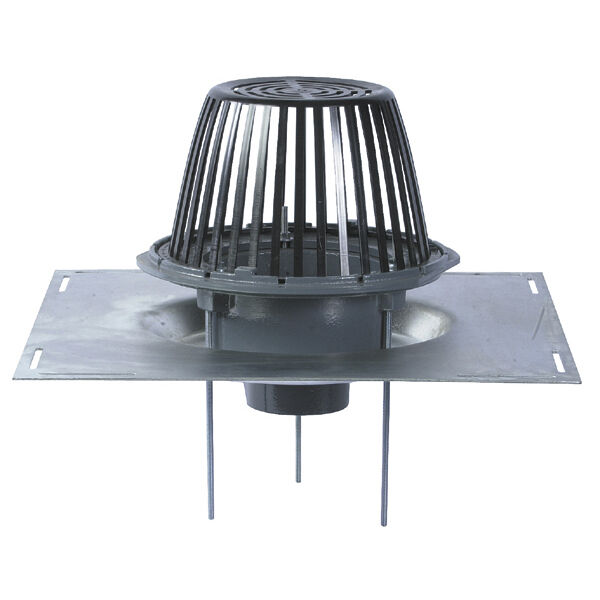

Series RD-100-F epoxy coated cast iron roof drain with flashing clamp with integral gravel stop, heavy gauge zinc plated steel deck flange with adjustable extension, self-locking polyethylene dome (standard), and no hub (standard) outlet.

Features

Specified for primary roof drainage on insulated metal decks
Deck flange doubles as an adjustable extension and sump receiver
Heavy flange eliminates the need to reinforce drain penetrations
UV stabilized self-locking dome
Studs locate membrane penetrations for flashing
