Dead Level Catch Basins
Dead Level Trench Drain System Catch Basins

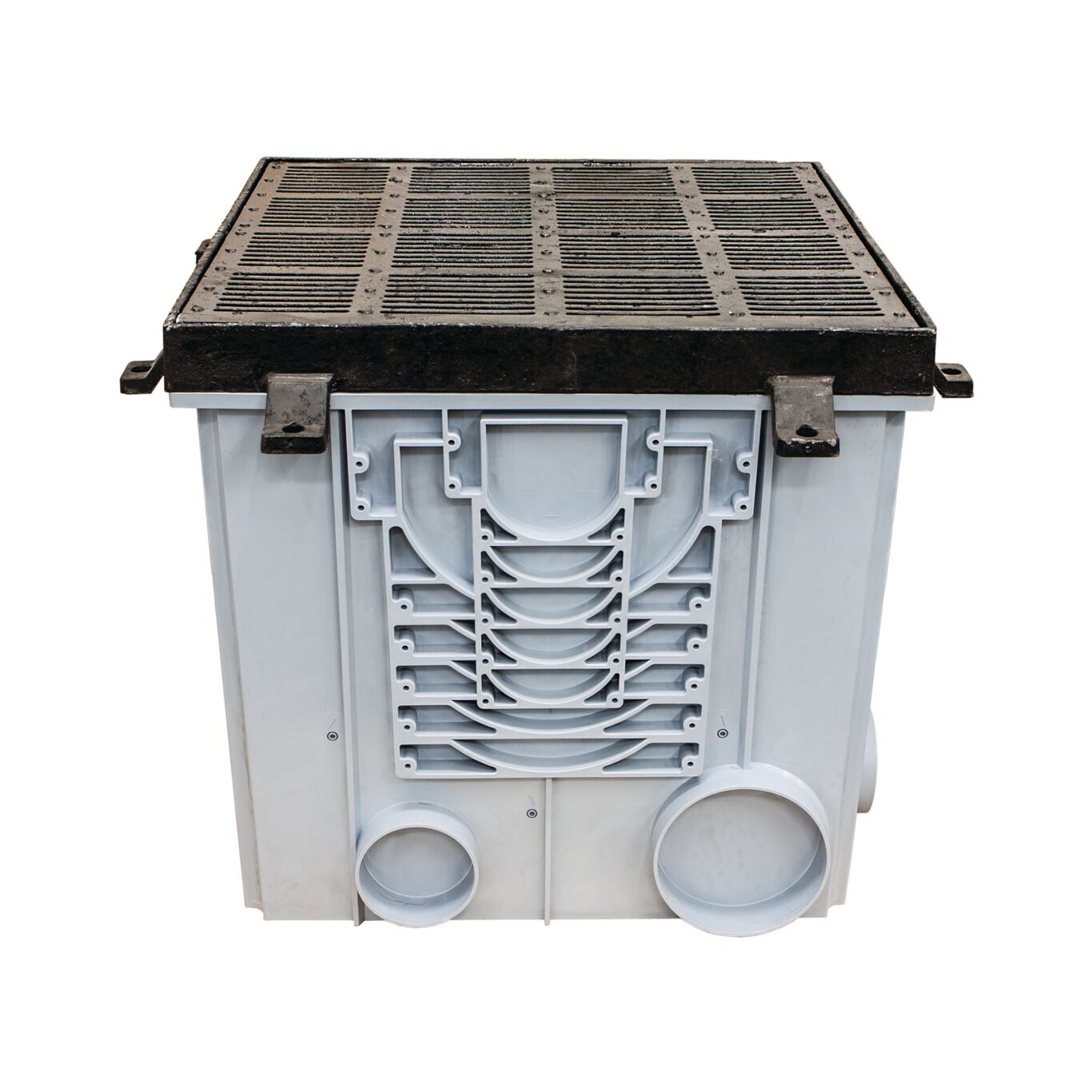

Watts CB-624/CB-2424 Catch Basin for Dead Level® Pre-Sloped Trench Drain System, 6"(152) or 24"(610) (specify) wide x 24"(610) long x 24"(610) deep, with UV stabilized talc-filled polypropylene body with 4"(102) and 6"(152) no hub outlet connections, and polypropylene (6" wide only) or ductile iron frame. Catch Basin shall be frame-anchored with (specify) grating and lockdowns to suit DIN Class (specify) load rating. Installation to be performed in accordance with manufacturer's recommendations.
Features
- Available 6x24x24" or 24x24x24"
- Ground anchors tie to structural frame
- Traffic rated ductile iron or optional grating to match trench drain
- Cut-outs for single or multiple channel tie-ins
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
