R24

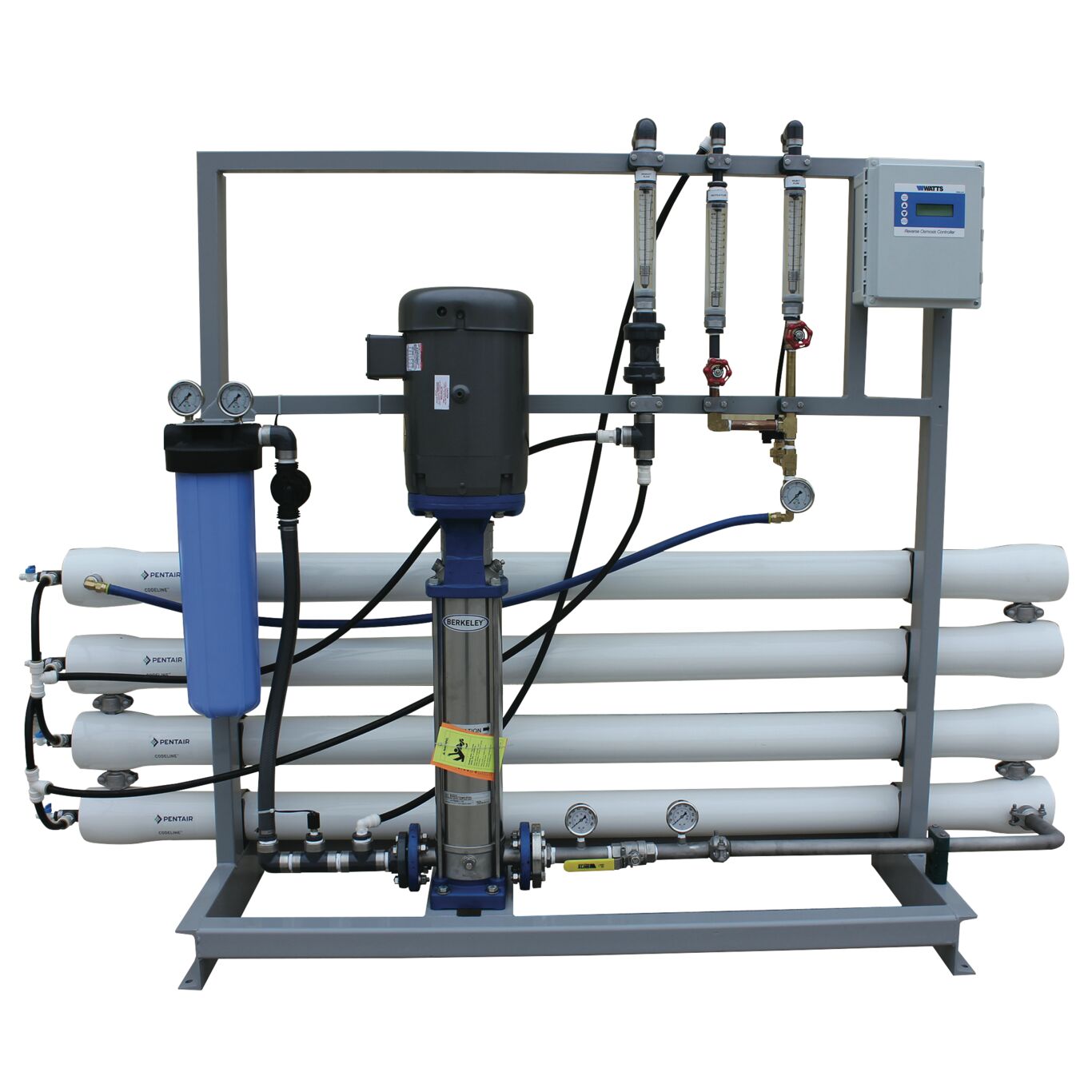

Heavy Commercial Reverse Osmosis Water Purification System
Watts Series R24 reverse osmosis (RO) systems are commercial grade high-pressure RO units for the reduction of total dissolved solids from water. They are designed to supply reverse osmosis quality water with production rates ranging from 10 to 15 gallons per minute (56 lpm). These units are designed for floor mount installations. Reverse osmosis is a process where high-pressure feed water is fed into a semi-permeable membrane. In the membrane, pure water is allowed to pass through the membrane material and exit as purified permeate water. Dissolved mineral salts are not allowed to pass through the membrane and become a concentrated reject stream that is sent to a drain. These RO systems use high pressure/highrejection membranes to achieve a minimum average NaCl ionic rejection of 97 percent.
Features
- Commercial reverse osmosis systems that provide flow rates up to 15 gallons per minute (56 lpm)
- Designed for floor mount installations
- High-pressure, high-rejection membranes with 97% minimum average salt rejection
- 20-inch high flow pre-filter
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
