PIPFM1
×
![]()

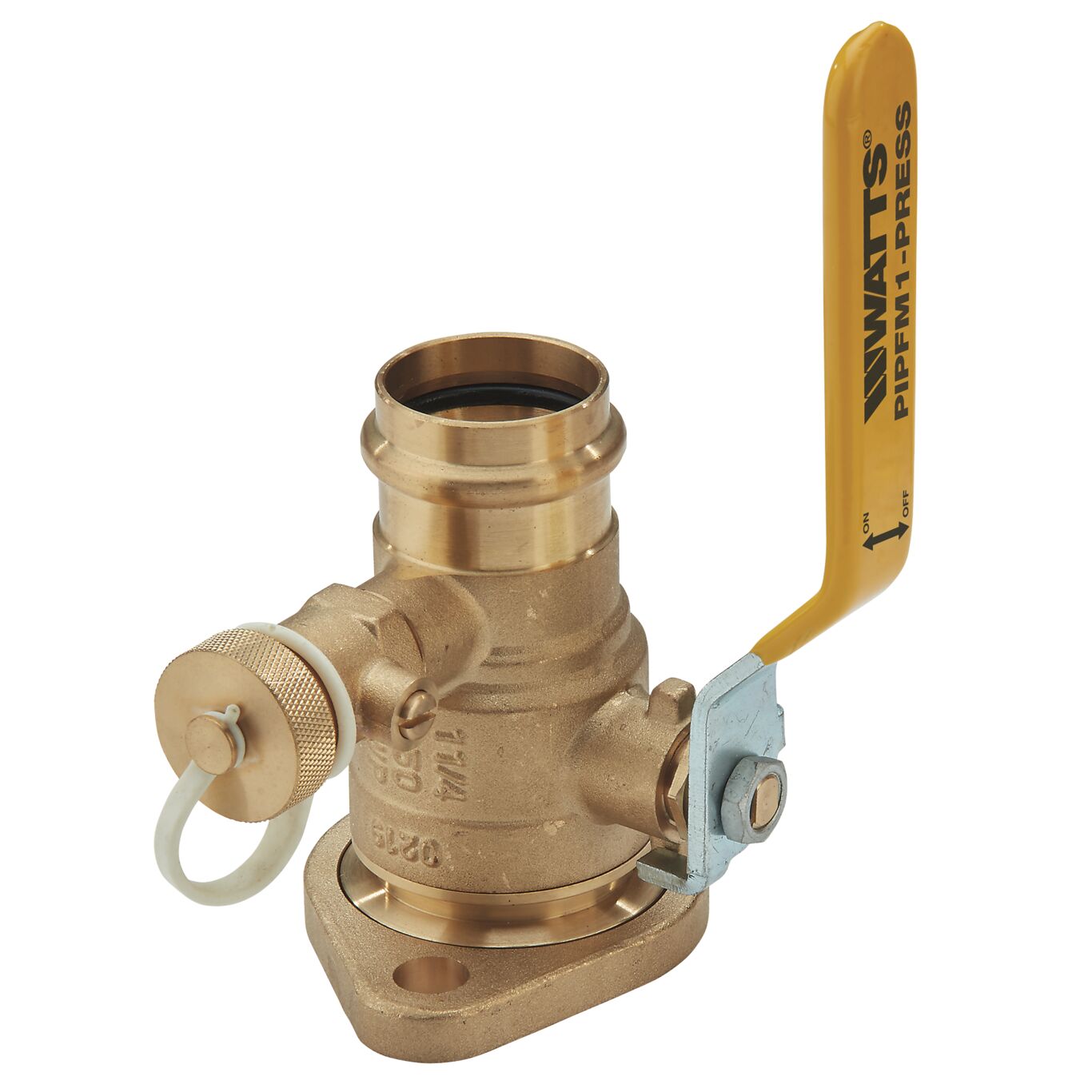

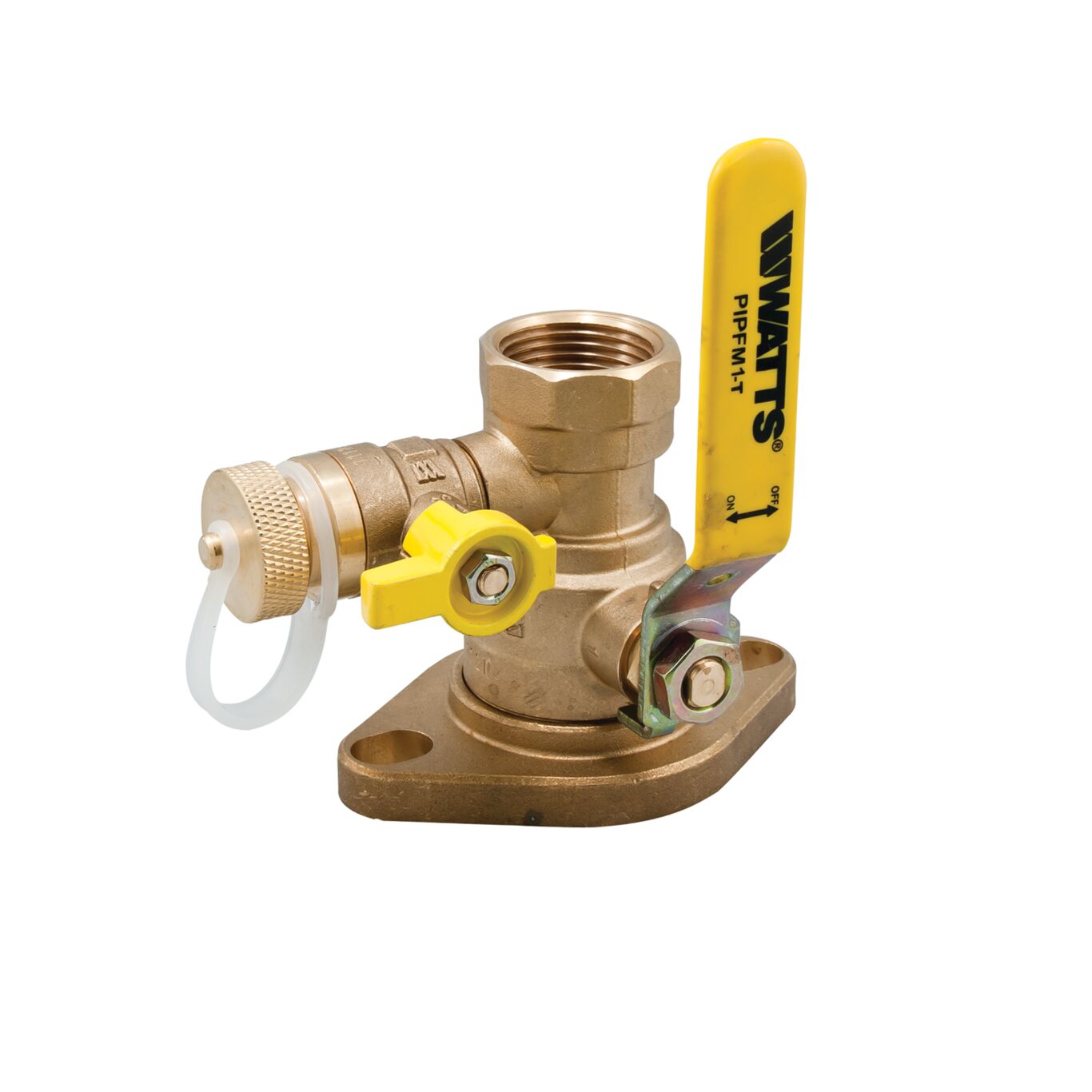

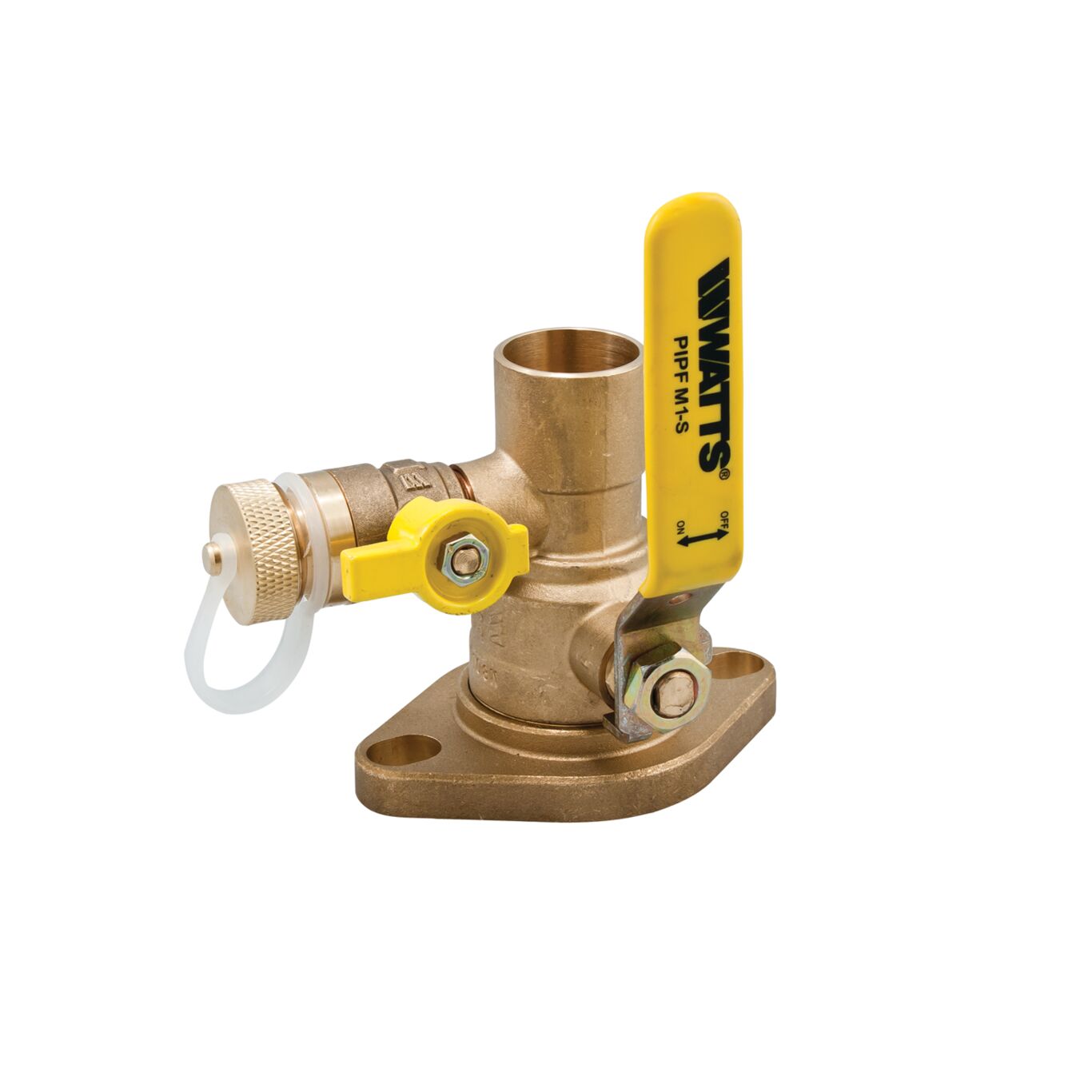

Isolation Pump Flanges with Purge Port and Swivel Flange
Series PIPFM1 Isolation Pump Flanges with Purge Port and Swivel Flange are designed to provide circulator pump isolation to facilitate circulator pump replacement or repair. The integral 1/2 in. purge port provides fast system purging. Pressure rated to 600psi WOG.
PIPFM1 models available with threaded NPT, solder or press connections.
Features
- Provides isolation for the circulator pump to facilitate replacement or repair
- Integral purge port saves time and money compared to other purge stations
- Swivel flange allows purge port to be positioned for optimal convenience
- Sizes: 3/4 in. ‒ 1 1/4 in. (20 ‒ 32mm)
