PIPF
Isolation Pump Flanges with Purge Port & Swivel Flange

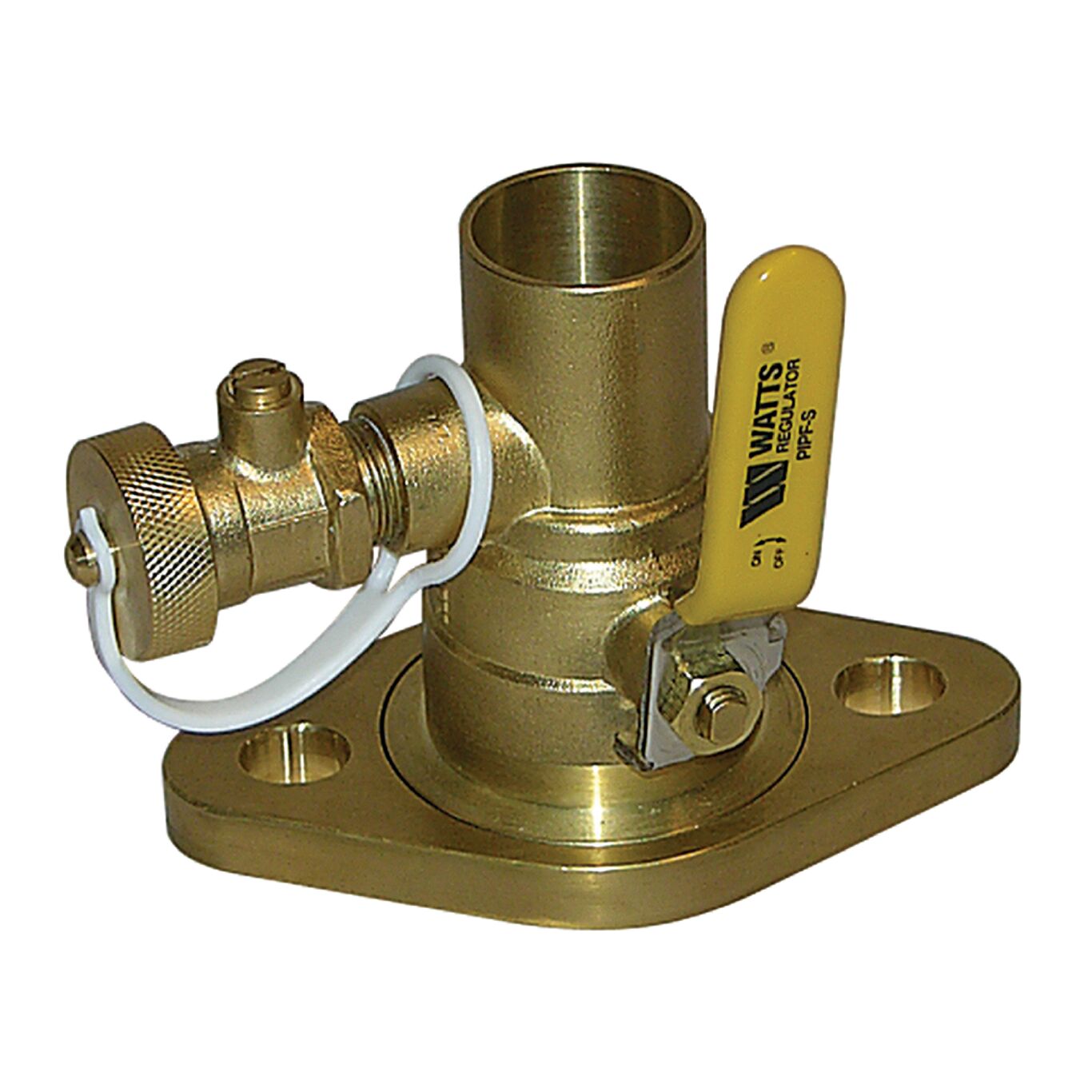

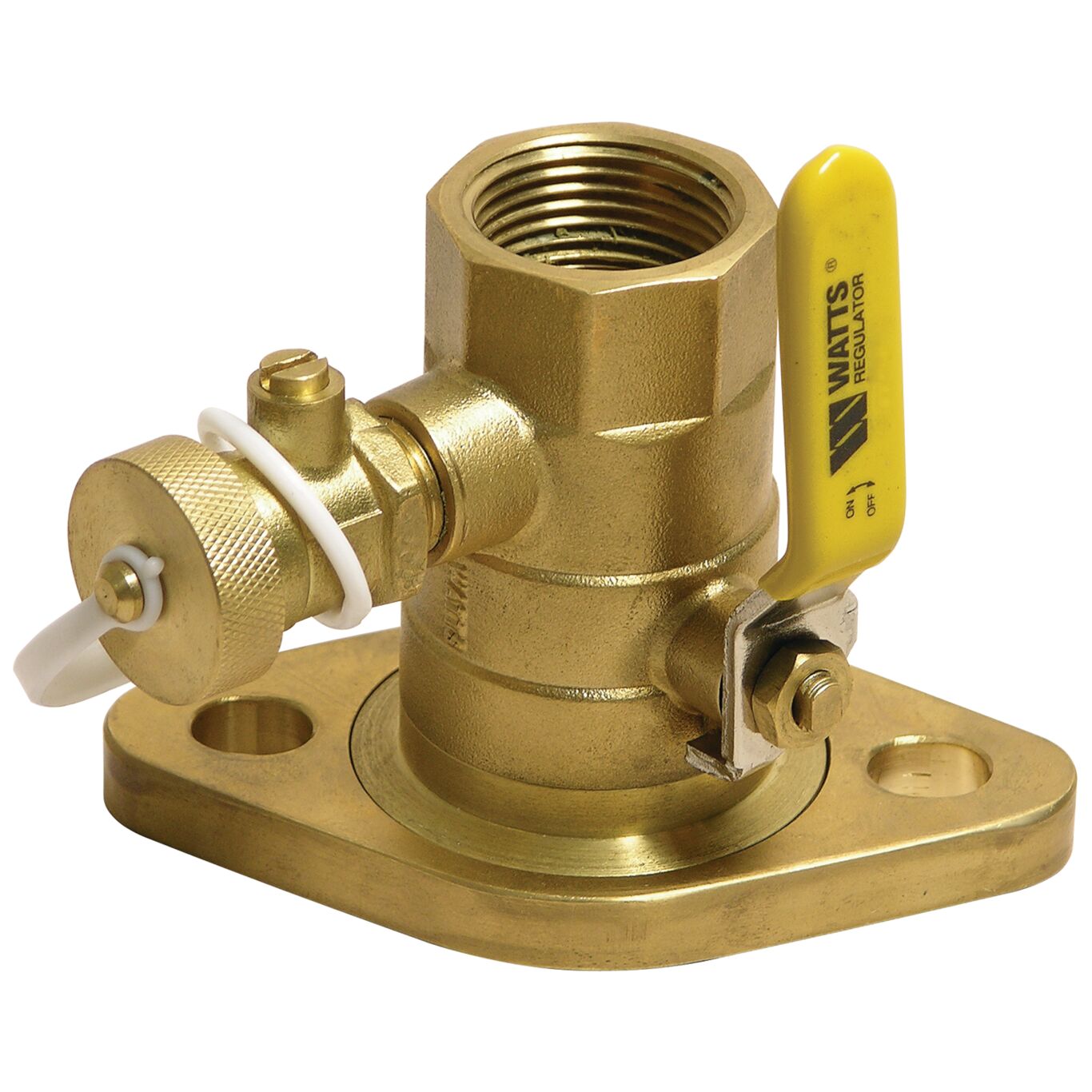

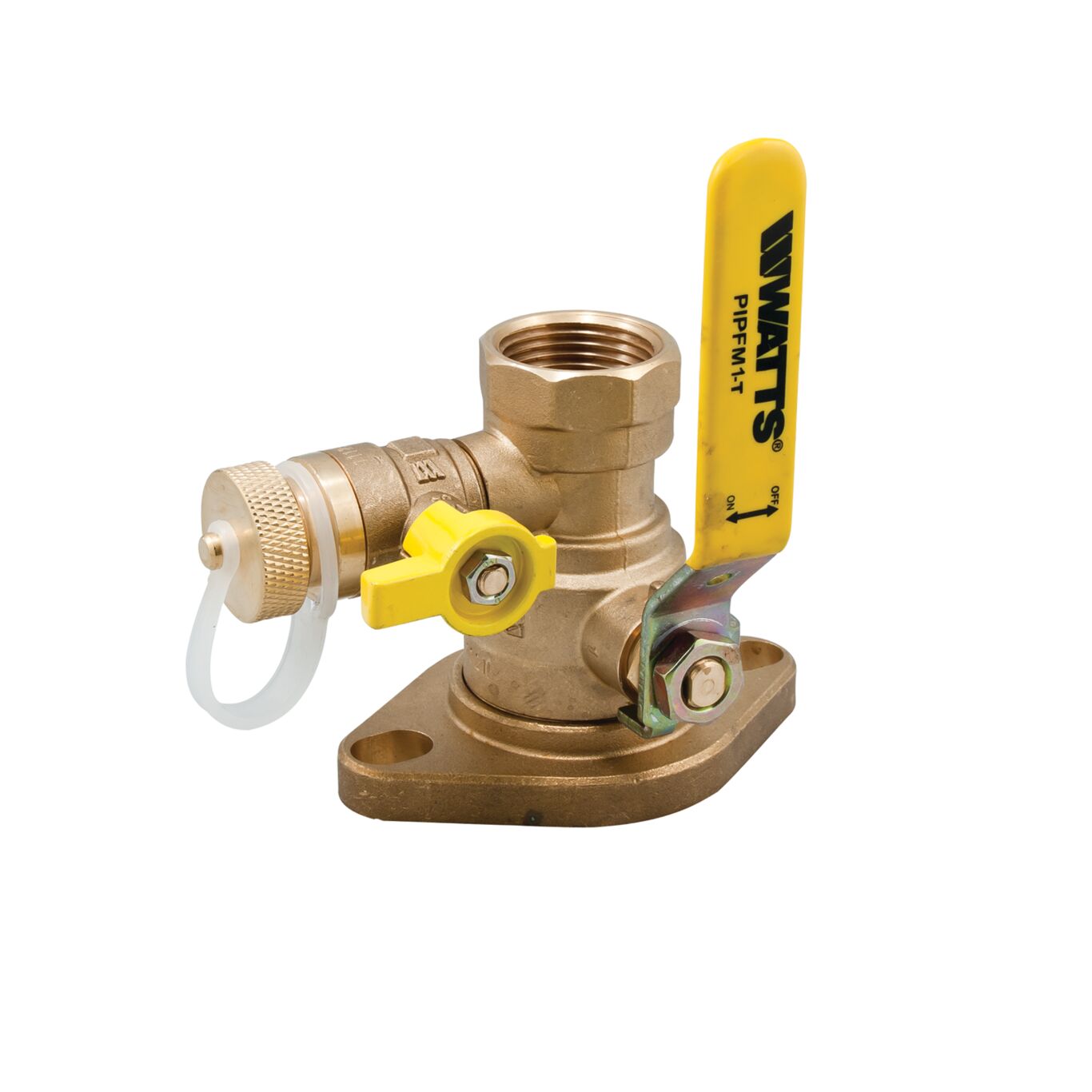

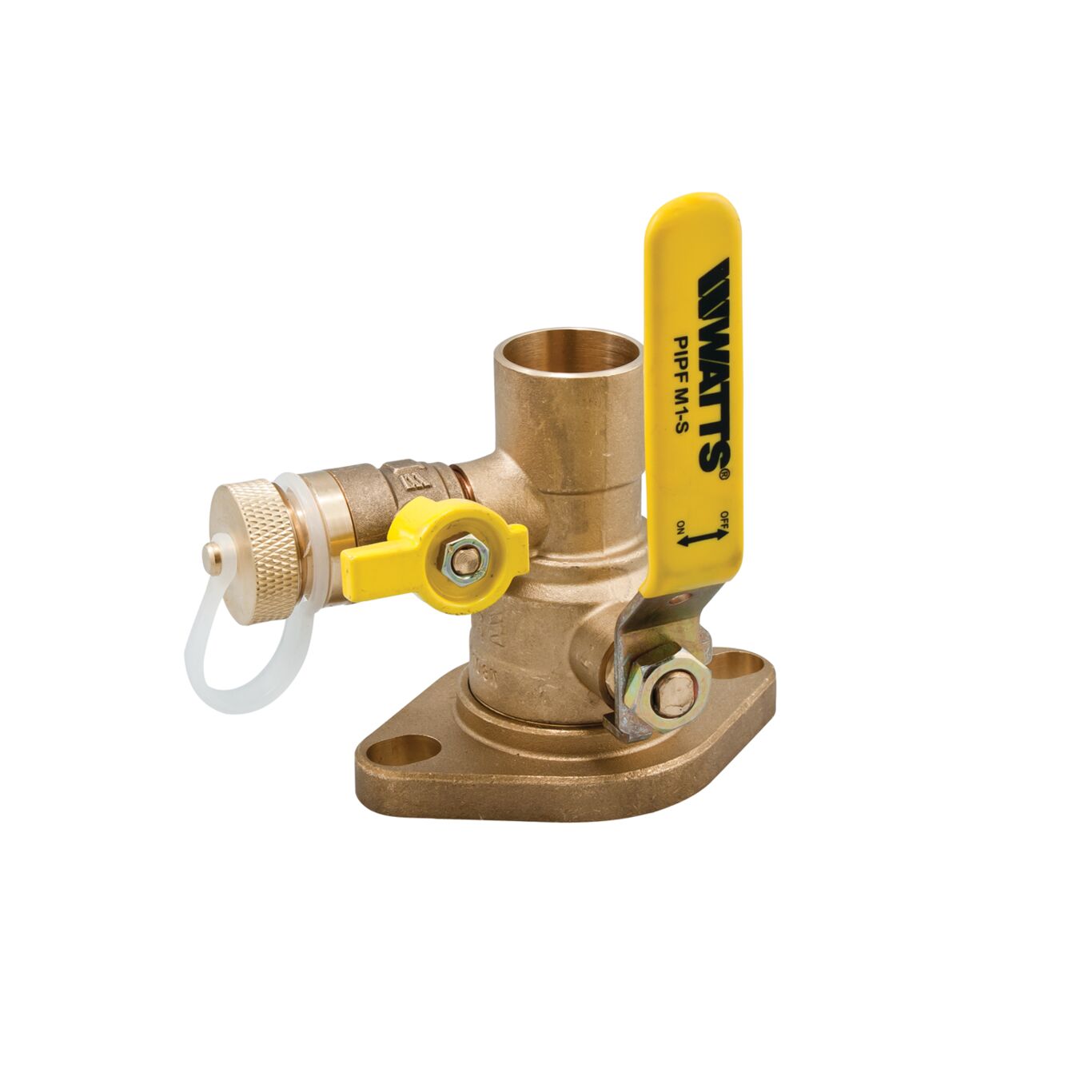

Series PIPF Isolation Pump Flanges with Purge Port & Swivel Flanged are designed to isolate circulator pumps to facilitate circulator pump replacement or repairs while the integral purge port facilitates system purging. They feature a swivel flange that allows the purge port to be positioned for optimal purging convenience, brass body and flange with bottom loaded blowout proof stem, chrome plated ball, and advanced double O-ring stem seal technology. Pressure rated at 400psi WOG.
Features
- Designed to isolate circulator pumps to facilitate circulator pump replacement or repairs
- Integral purge port saves time and money compared to other purge station types
- Double O-ring stem sealing technology eliminates packing leaks
- Available with threaded NPT end and solder end connections
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
