LF408OSY FLGxGRV 4
×
![]()
Part of the 408-OSY-RW Series
Ordering Code: 0125075
UPC: 098268847857

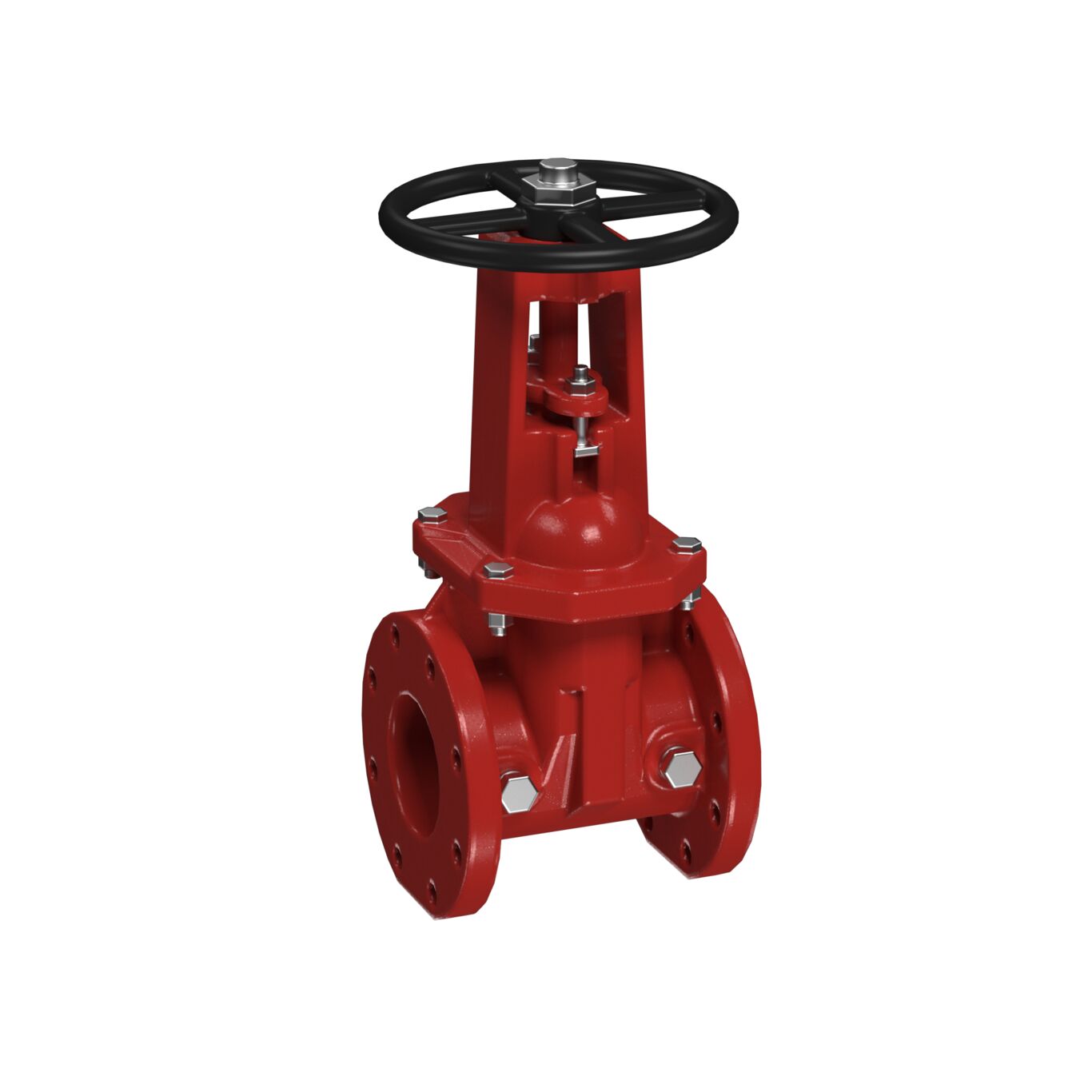

4 In Lead Free Osy Flanged Gate Valve, Flange x Groove
This 4 inch lead free OSY flanged gate valve is used in fire protection applications for fire main shutoffs. It features an epoxy coated, cast iron body with flanged by grooved end connections, resilient wedge disc, stainless steel non-rising stem and cast iron handwheel. This valve is UL/FM listed and complies with MSS-SP-70. The maximum pressure is 200 psi (13.8 bar) CWP.
| Specifications | |
|---|---|
| BonnetType | Does Not Apply To Product |
| ClassRating | Does Not Apply To Product |
| DiscMaterial | Does Not Apply To Product |
| EANUCCCode | 098268847857 |
| EpoxyCoatingType | None |
| MaximumPressure-PSI | 250 |
| MaximumTemperature-Fahrenheit | 140 |
| StemType | Does Not Apply To Product |
| WOGRating | 250 PSI |
