408-OSY-RWI 4
×
![]()
Part of the 408-OSY-RW Series
Ordering Code: 0702402
UPC: 098268217209

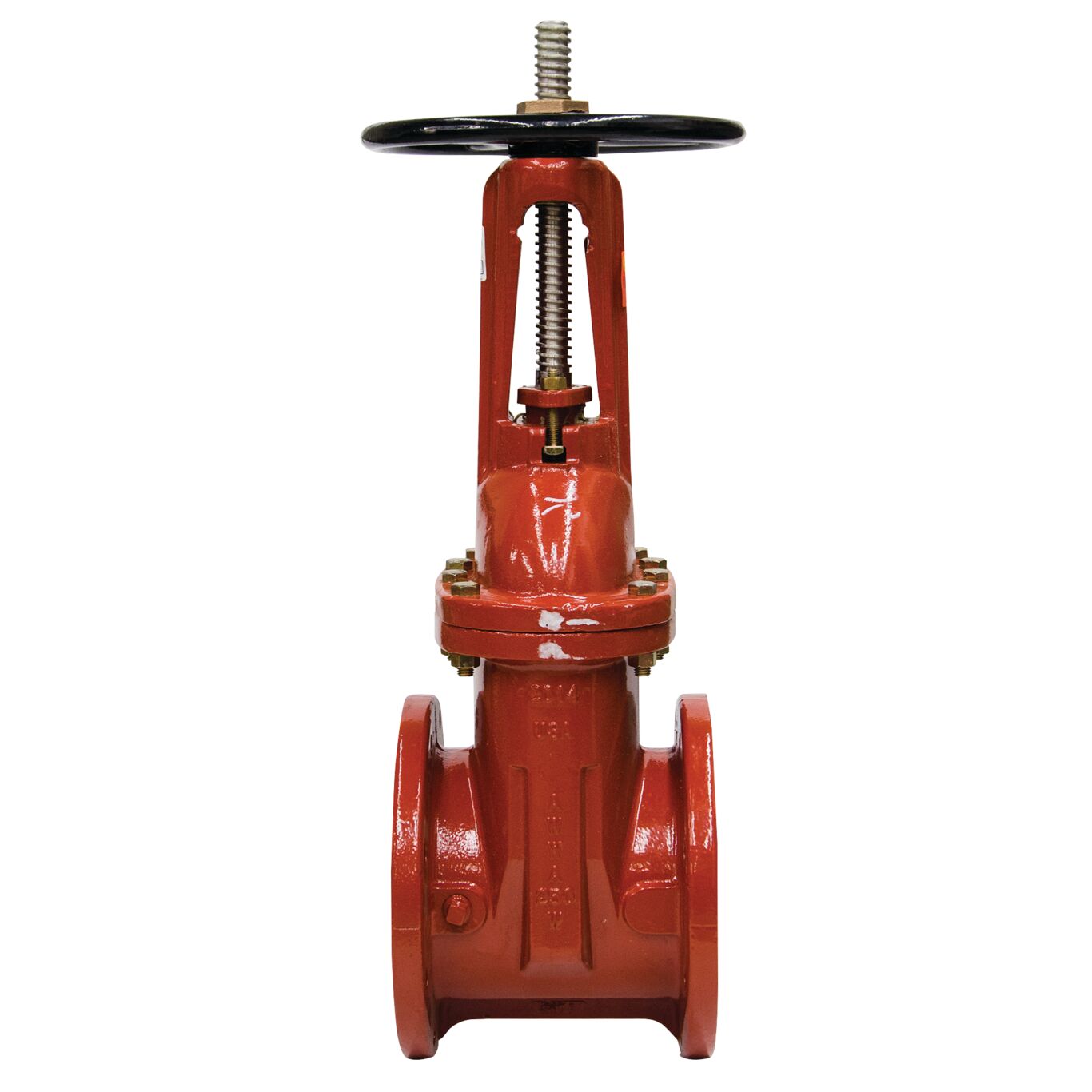

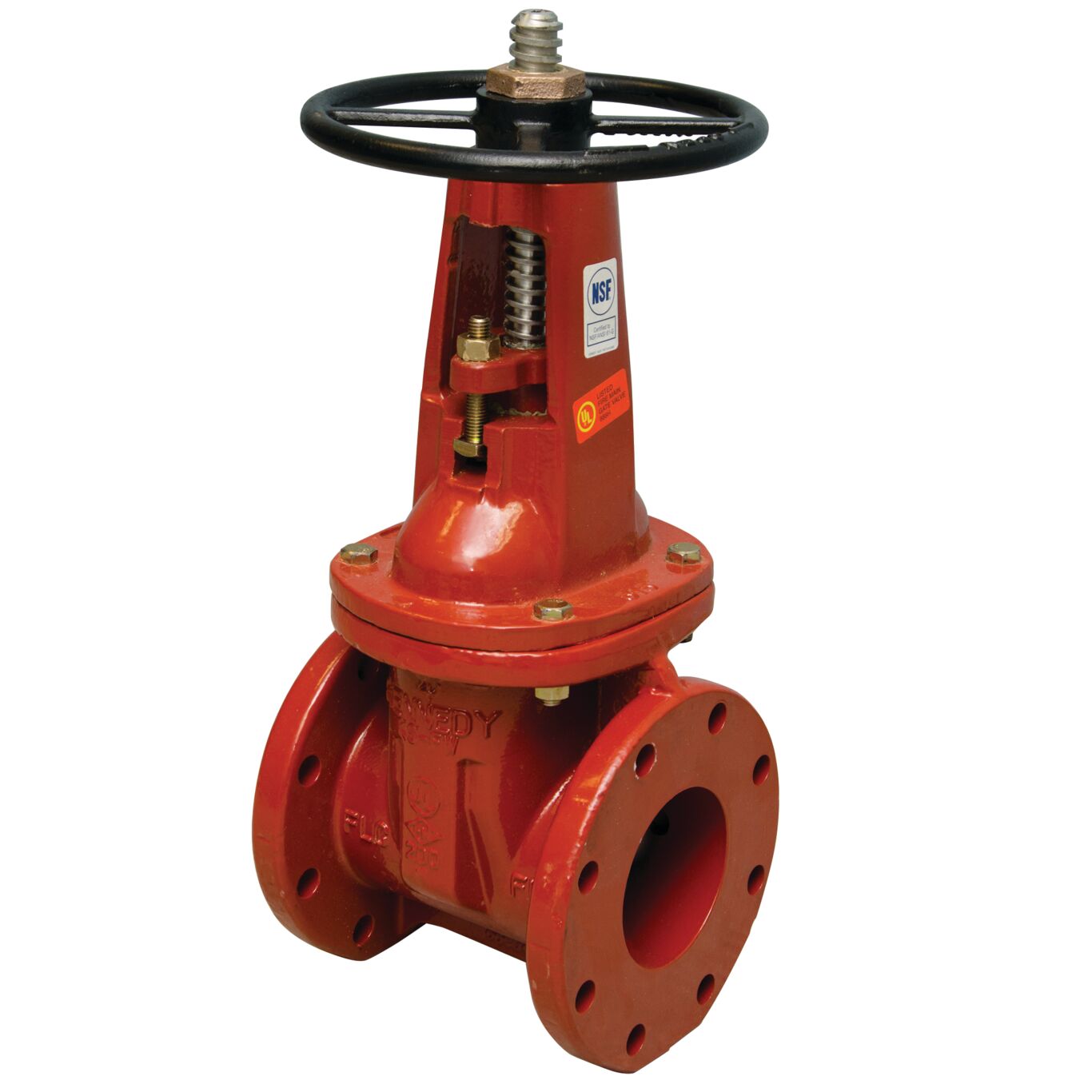

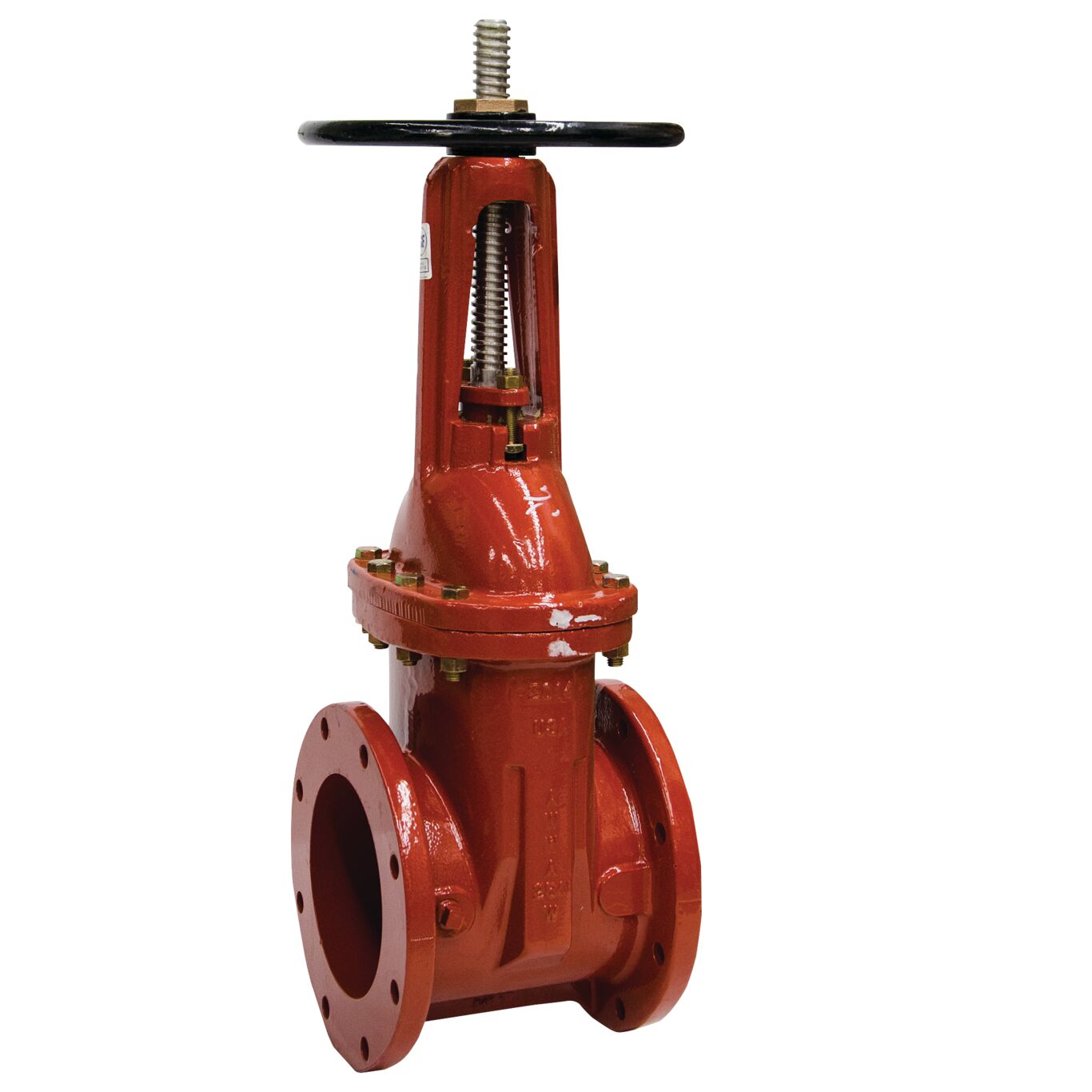

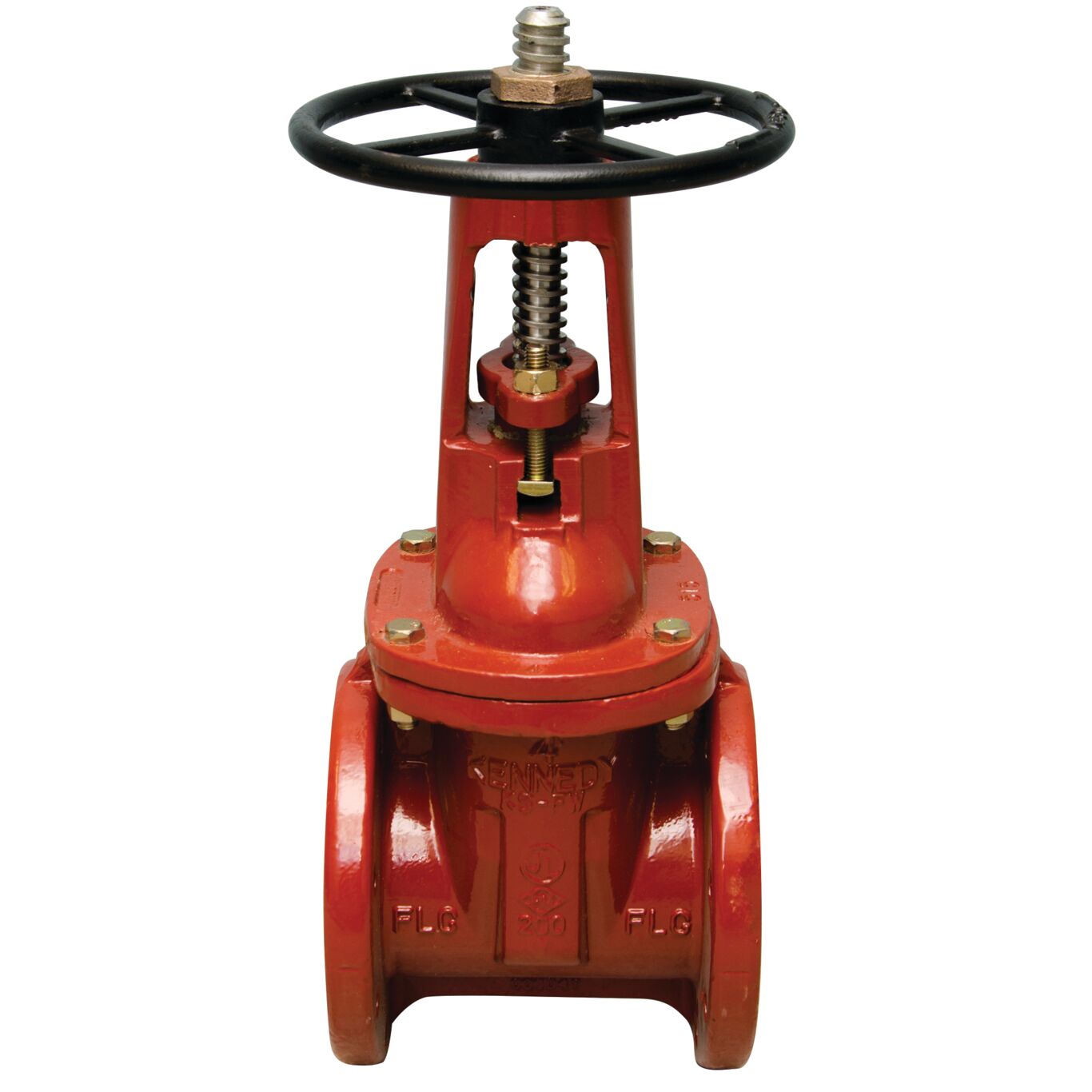

4 In Osy Resilient Wedge Gate Valve, Flange, Import
This OSY flanged gate valve, Watts 4 IN model 408-OSY-RWI, is used in fire protection applications in fire main shutoff applications. It features an epoxy coated cast iron body with flanged connections, resilient wedge disc, and cast iron handwheel. It is UL/FM listed and complies with MSS-SP-70. The maximum pressure is 250 psi (17 bar) CWP. Imported model.
- Epoxy coated cast iron body
- Flanged connections
- Resilient wedge disc
- Cast iron hand wheel
| Specifications | |
|---|---|
| BonnetType | Flanged |
| ClassRating | Does Not Apply To Product |
| DiscMaterial | Cast Iron |
| EANUCCCode | 098268217209 |
| EpoxyCoatingType | None |
| MaximumPressure-PSI | 250 |
| MaximumTemperature-Fahrenheit | 140 |
| StemType | Rising |
| WOGRating | 250 PSI |
