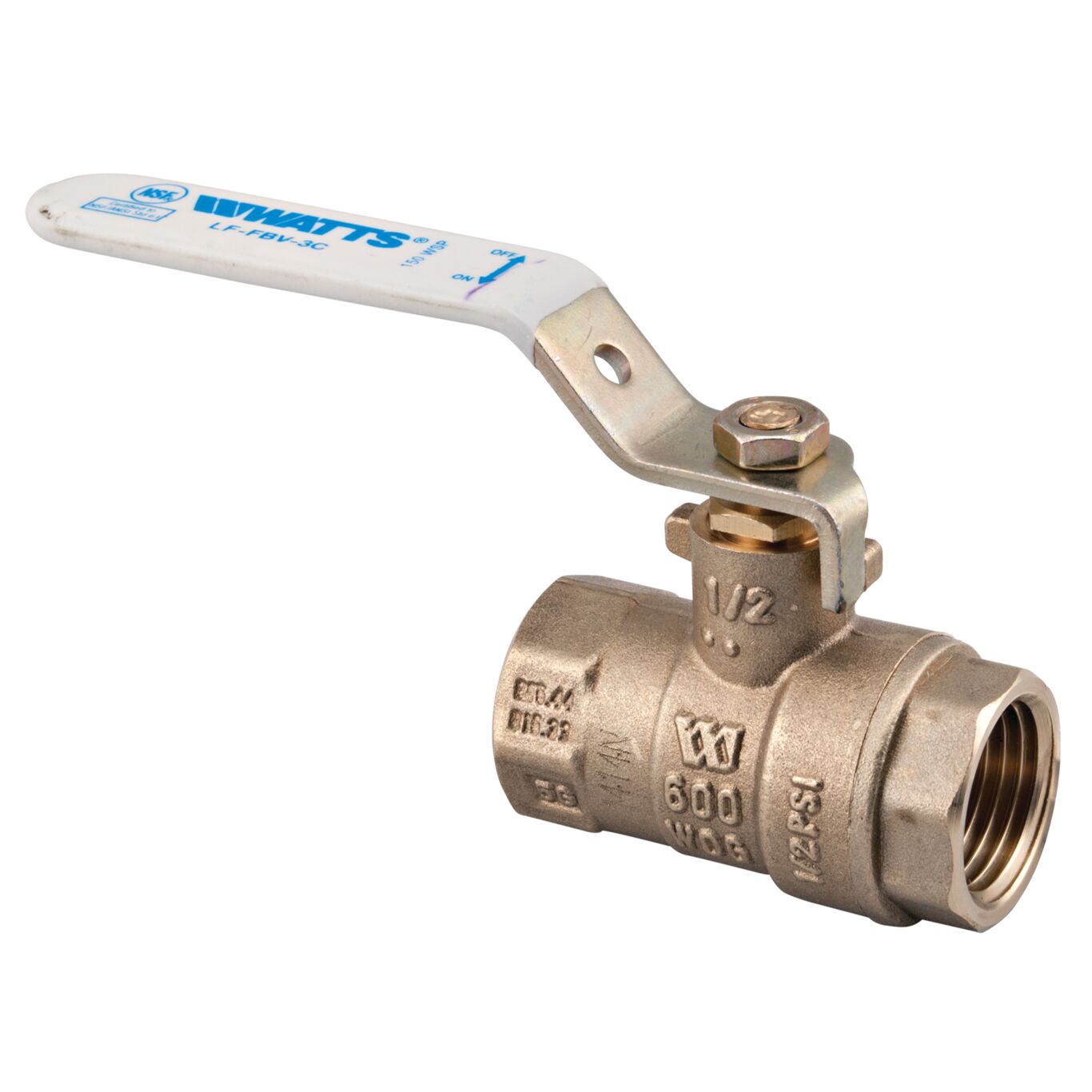

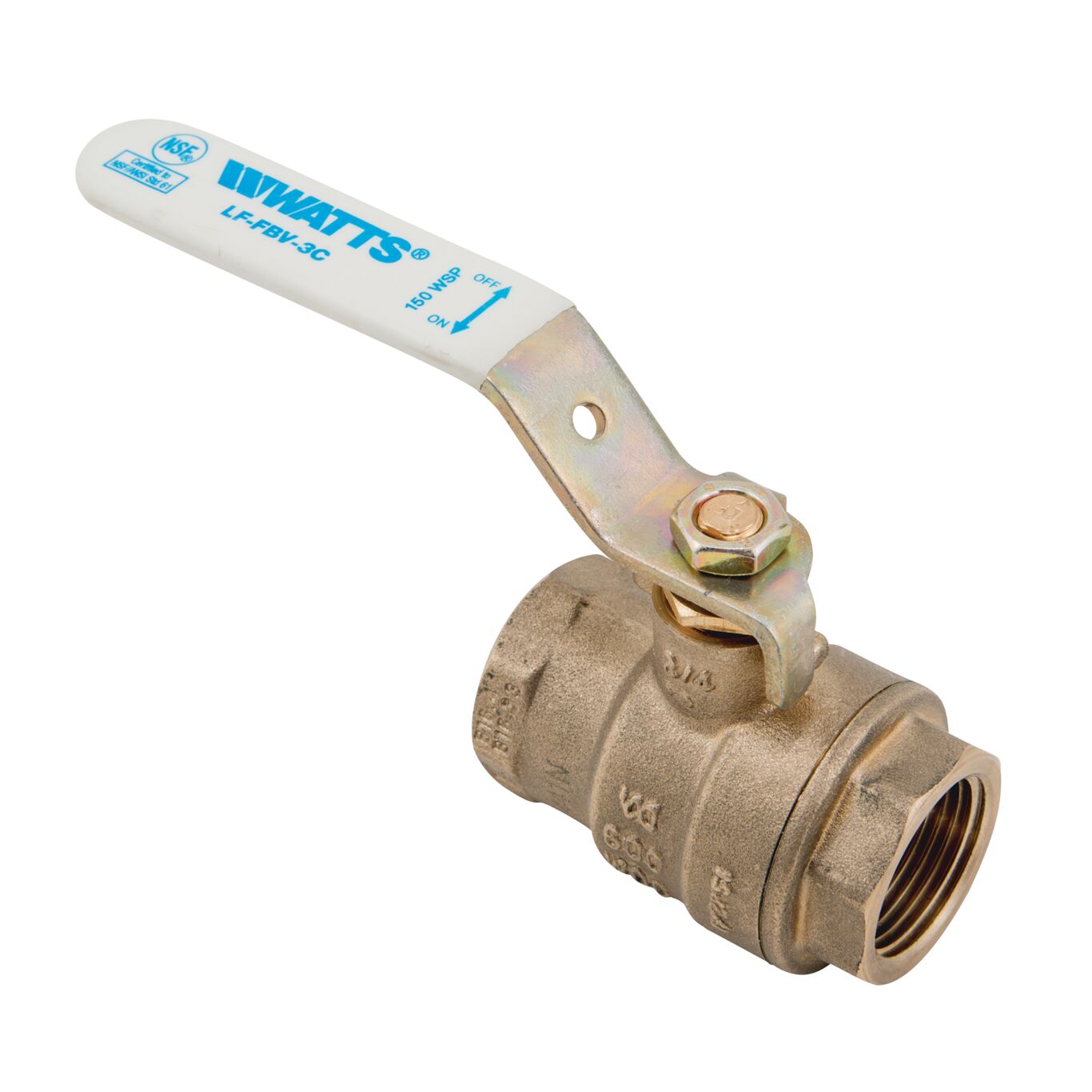

LFFBV-3C
Lead Free* 2-Piece, Full Port, Brass Ball Valves, Sizes: 1/4 – 4 (8 – 100mm)
Series LFFBV-3C and LFFBVS-3C Lead Free* 2-piece, full port, brass ball valves are designed for use in commercial and industrial applications for a full range of liquids and gases. LFFBV-3C ball valves are constructed for reliable performance with a fluorocarbon elastomer stem O-ring that prevents stem leaks. They feature a bottom-loaded blowout proof stem, virgin PTFE seats, thrust washer, adjustable stem packing gland, stem packing nut, chrome plated Lead Free* brass ball, copper silicon alloy brass adapter, and steel handle. LFFBV-3C models have threaded end connections. LFFBVS-3C models have solder end connections. Available in sizes 1/4 to 4 inch.
Available Accessories:
- Stem Extension Kits
- Locking Handle Kits
Features
- Construction is Lead-Free* forged copper silicon alloy body and adapter
- The ball is machined chrome-plated Lead-Free* brass
- Certified to NSF/ANSI standard 61/8
- Valves comply to MSS-SP-110 standard
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
