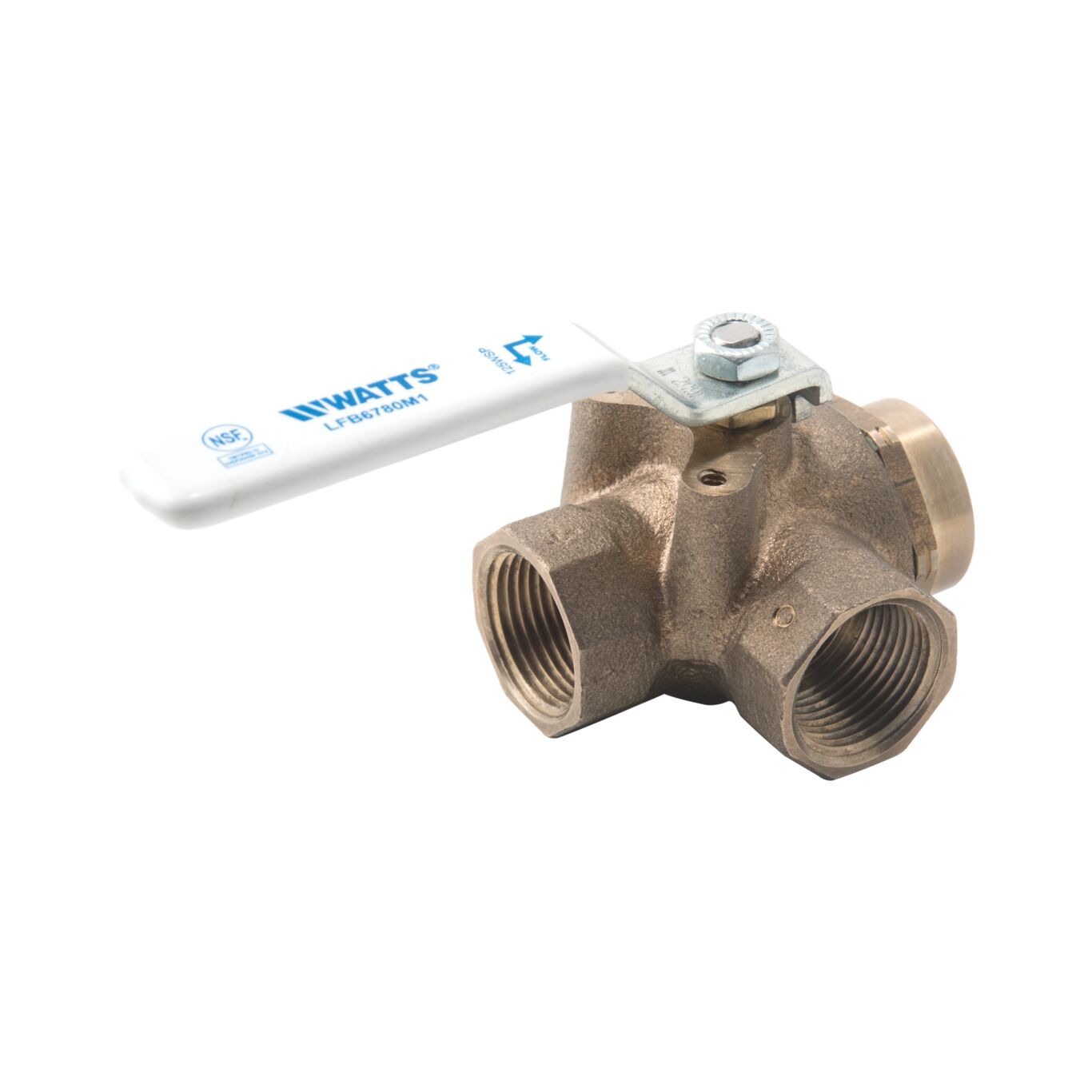

LFB6780-M1
2-Piece, Full Port, Lead Free* Diverter Ball Valves
Series LFB6780-M1 2-Piece, Full Port, Lead Free* Copper Silicon Alloy Diverter Ball Valves are designed to divert liquids and gases in commercial and industrial applications. The full port orifice ensures minimal pressure drop, while PTFE seats and stainless steel ball provide lasting service. Has threaded NPT end connections. Pressure Rating is 400psi (28 bars) WOG (non-shock) @ 100°F and 125psi (8.6 bars) WSP.
Features
- Diverts a full range of liquids and gases in commercial and industrial applications
- Minimal pressure drop due to full size port
- Designed for lasting service
- Sizes: 1⁄4 in. – 2 in. (8 – 50mm)
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
