LFB6090-SS
2-Piece, Full Port, Lead Free* Bronze Ball Valves with Stainless Steel Trim

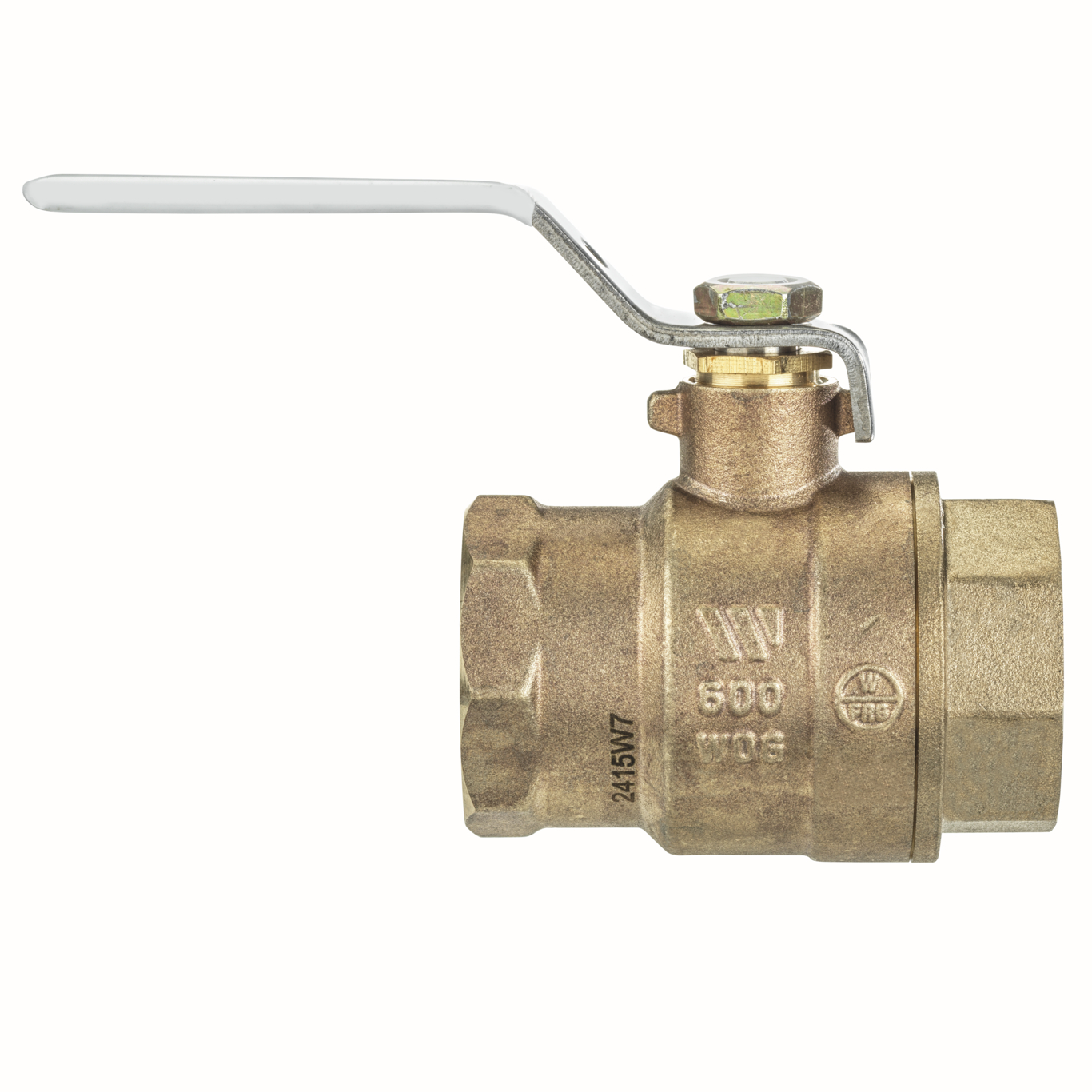

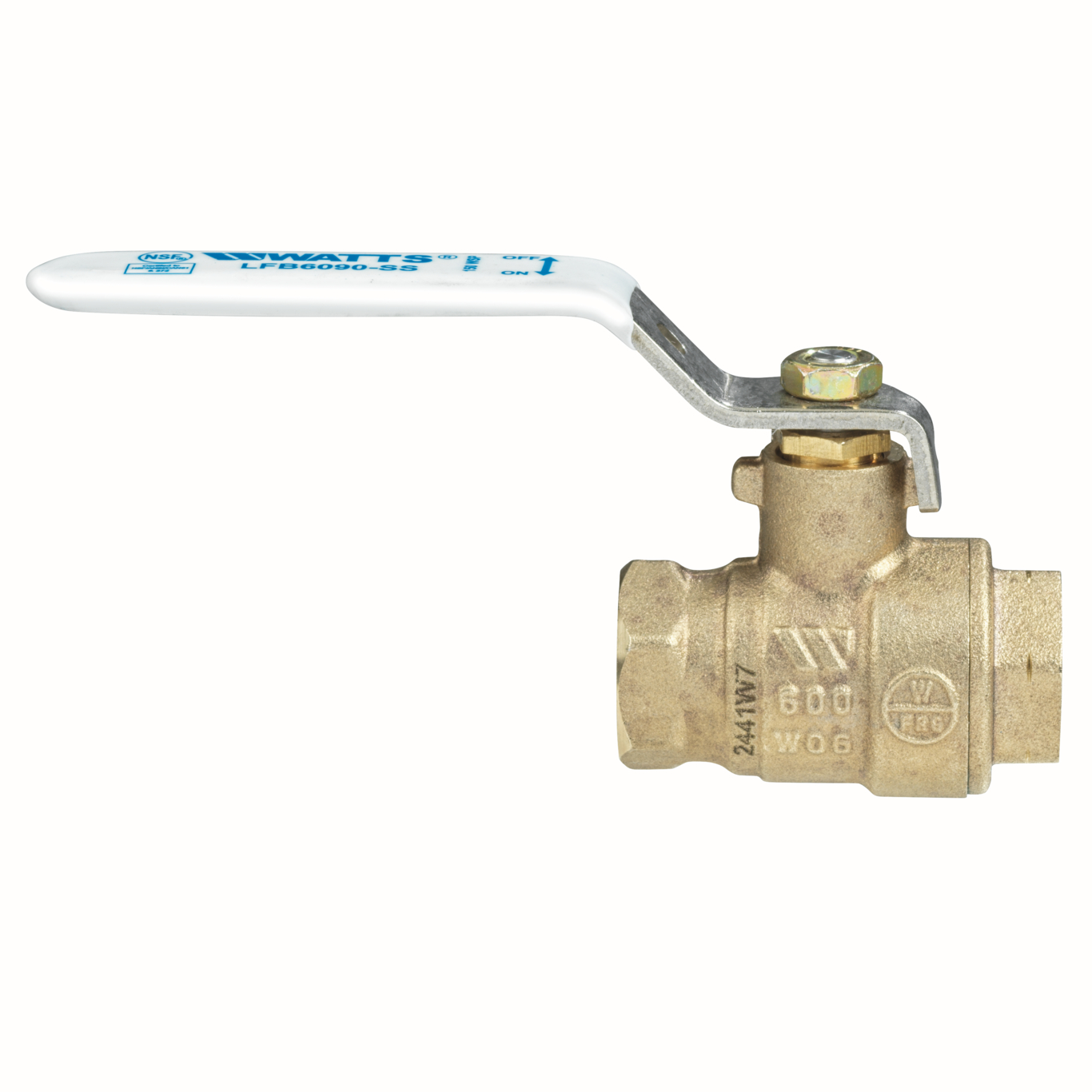

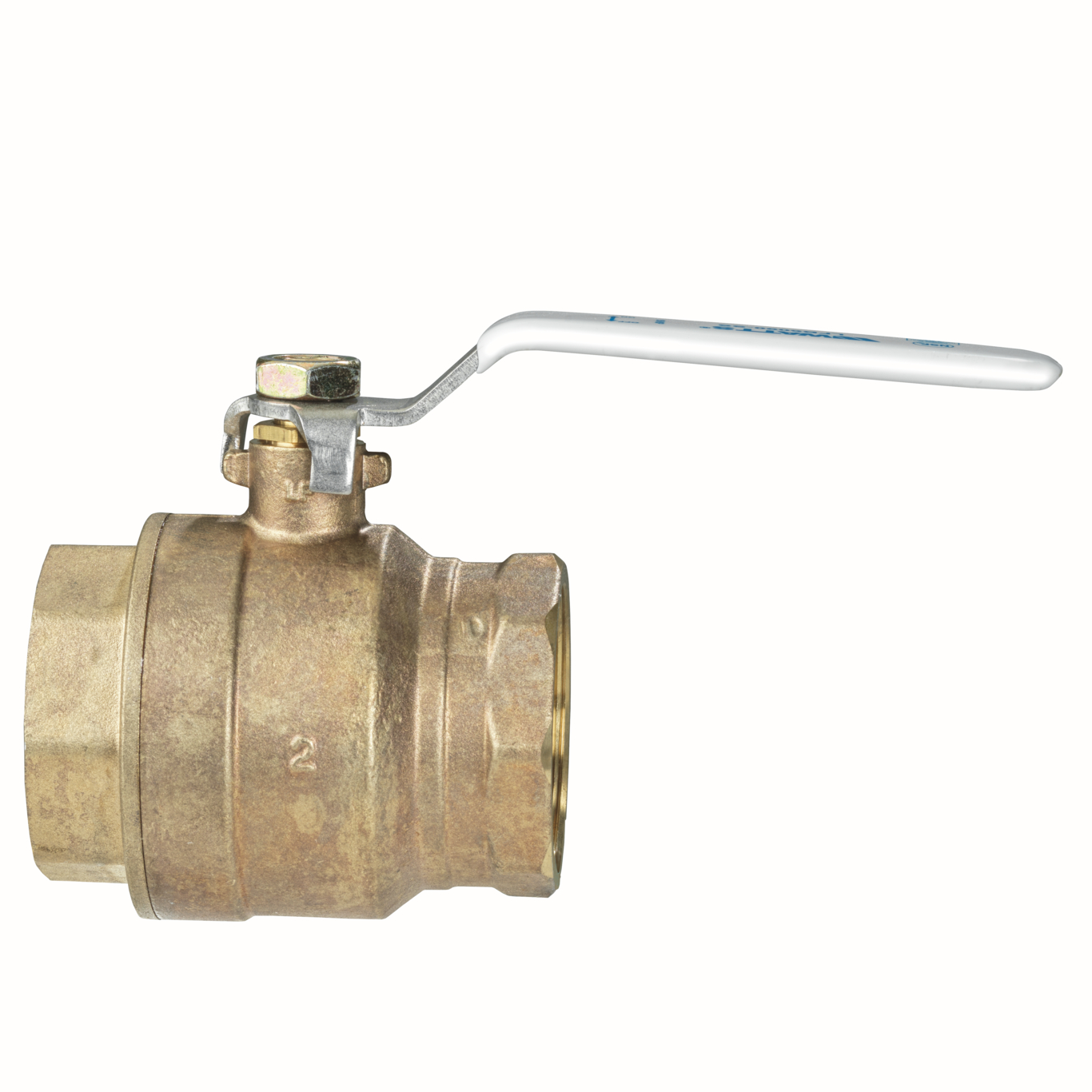

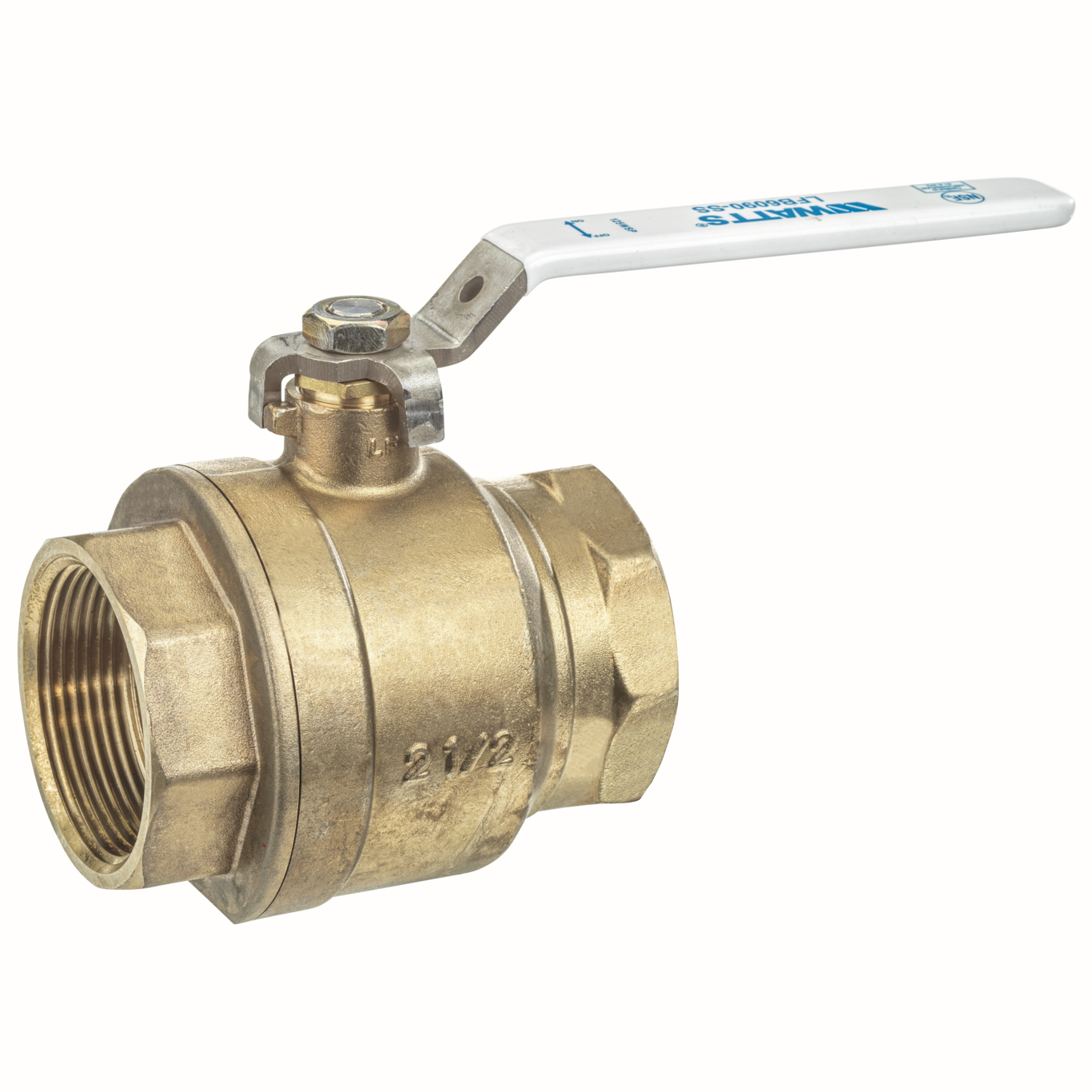

Series LFB6090-SS/LFB6091-SS full port, lead free, bronze ball valves with stainless steel trim come with threaded or soldered end connections. These valves are used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop and the overall robust design provides lasting service. The ball valve model sizes ¼" - 2” are rated for 600 WOG/150 WSP. model sizes 2 ½" and larger are rated 400 WOG/125 WSP.
Features
- Tested and Certified by NSF International NSF 372 Lead Free
- Stainless steel ball and stem
- Model sizes ¼" - 2” are rated to 600 psi WOG/150 psi WSP
- Model sizes 2 ½" and above are rated to 400 psi WOG/125 psi WSP
- Threaded and soldered end connections
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
