FBV-PEX-M1

Discontinued - Replaced By: LFFBV-PEX

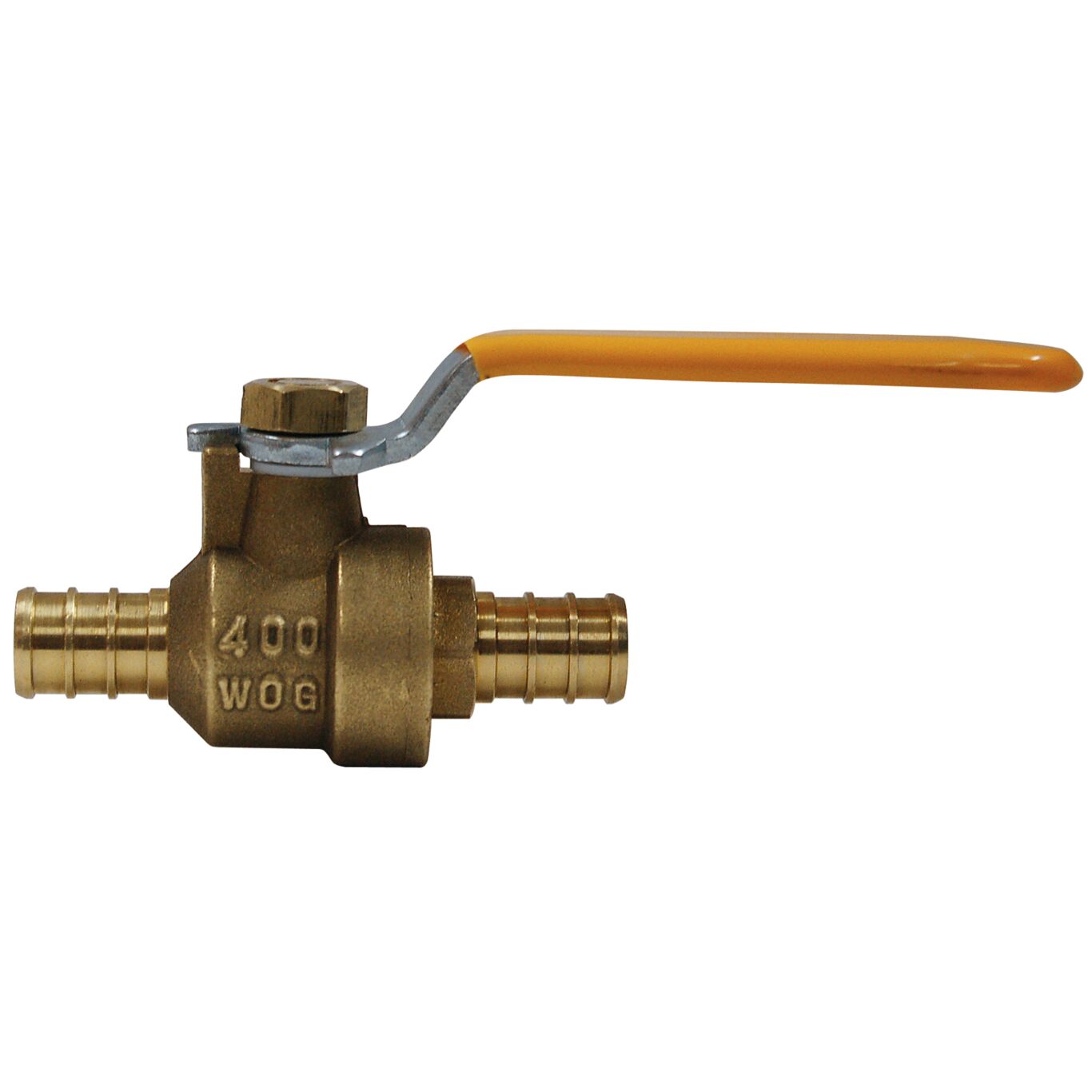

2-Piece, Full Port, Brass Ball Valves with PEX Ends

Series FBV-PEX-M1 2-Piece, Full Port, Brass Ball Valve with PEX Ends are designed for use in PEX piping systems. Forged brass body and adapter are manufactured per the ASTM F1807 standard. They feature brass PEX end tailpieces designed for easy crimping into a PEX piping system. Pressure Rating is 400 WOG. Crimp connection rating is 160psi at 73°F (23°C).

Features

Designed for use in PEX piping systems
PEX ASTM F-1807 end tailpieces for easy crimping
Two-Piece Full Port Design
Sizes: 1/2 in. ‒ 1 in. (15 ‒ 25mm)

Literature

- Specification Sheet - FBV-PEX-M1

Find a Sales Representative

Find a Wholesaler/Distributor

View Warranty Customer Support

Build Your Spec in Under 5 Minutes

Learn More

Approval/Certification Information

For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:

ASSE	CSA	FM Approvals	NSF
UL	ULC	USC	WQA
