FBV-3C-TH 1
×
![]()
Discontinued
Part of the FBV-3C Series
Ordering Code: 0621002
UPC: 098268461701

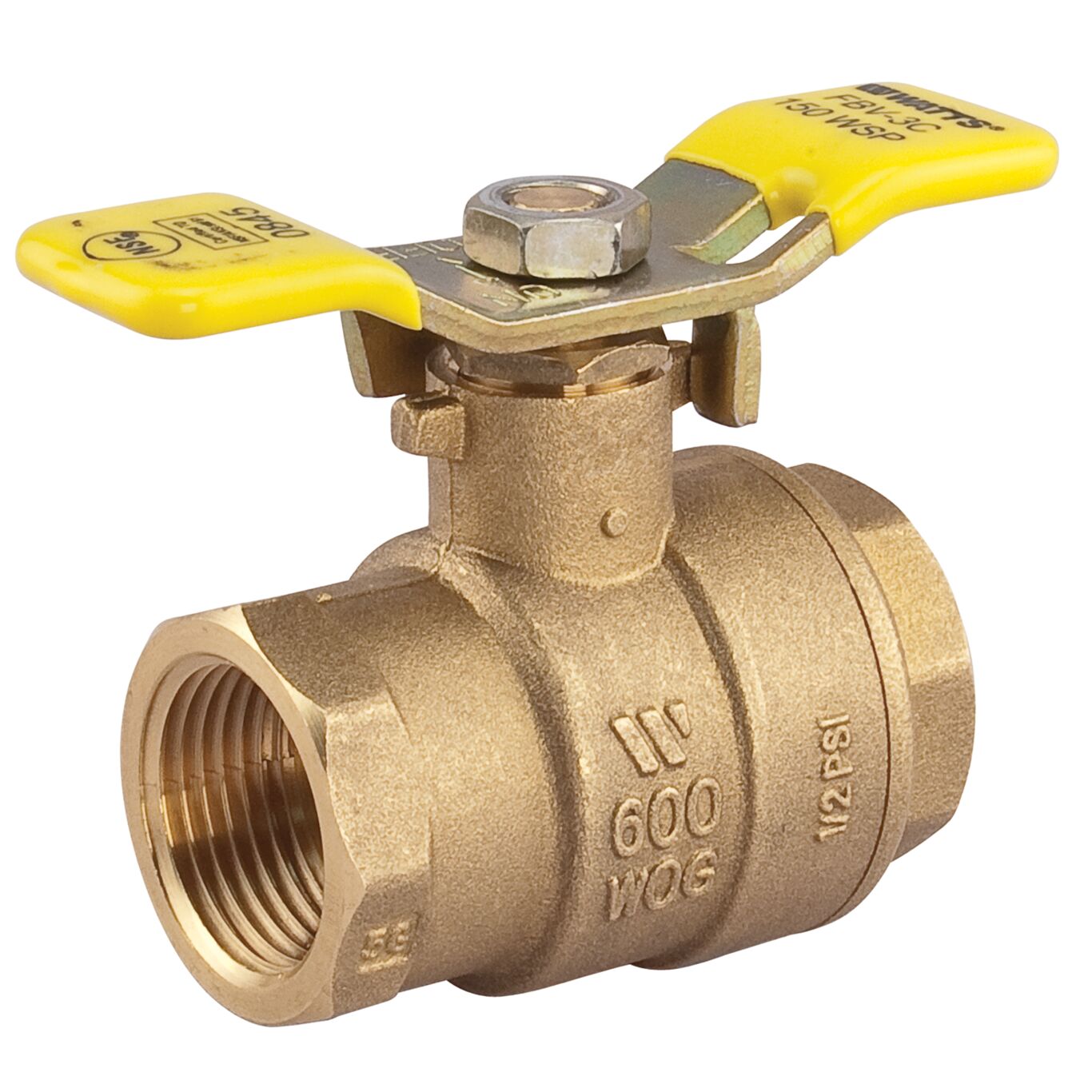

1 IN 2-Piece Full Port Brass Ball Valve, Female NPT End Connection with T-Handle
This 1 inch 2-piece, full port, brass ball valve is used in commercial and industrial applications for a full range of liquids and gases. It features a bottom-loaded blowout-proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter and a steel tee handle with threaded end connections. The pressure rating is 600 psi WOG; 150 psi WSP and the temperature range is -40 F to 400 F (-40 C to 204 C).
| Specifications | |
|---|---|
| EANUCCCode | 098268461701 |
| MaximumTemperature-Fahrenheit | 400 |
| MinimumTemperature-Celsius | -18.00 |
| MinimumTemperature-Fahrenheit | 0 |
