C-FBV-1 1/2
×
![]()
Part of the C-FBV-1 Series
Ordering Code: 0548002
UPC: 098268386684

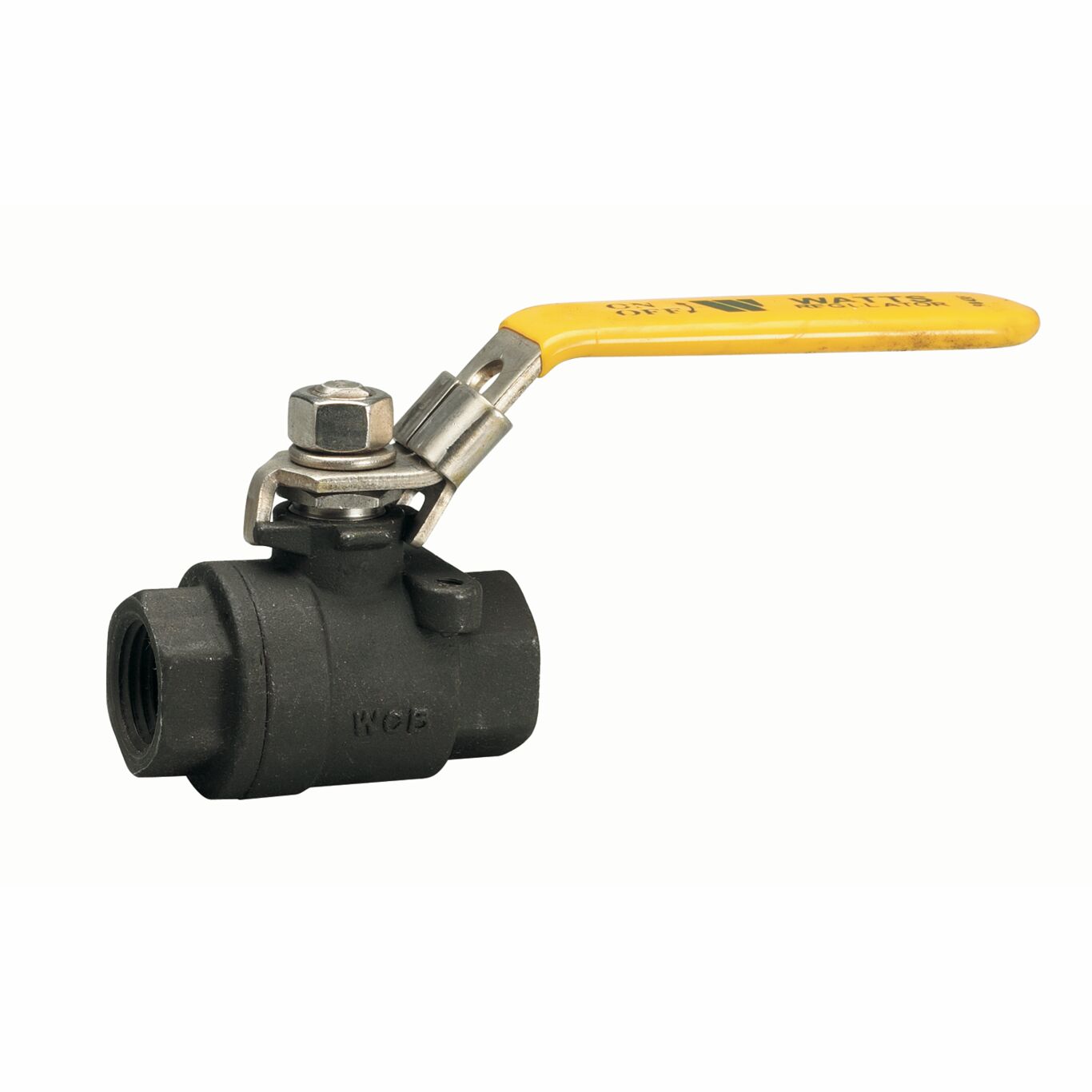

1/2 IN 2-Piece Full Port Carbon Steel Ball Valve, NPT Threaded End Connection, Lever Handle
This 1/2 inch two-piece full port ball valve with female threaded end connections is used in commercial and industrial applications with high operating temperature and pressure limits. The valve features carbon steel body construction, adjustable packing gland, reinforced PTFE seats and seals, a bottom loaded blowout proof stem, and a vinyl insulator on a heavy duty 304 Latch-Lok stainless steel handle. The temperature range is 0 to 400 degrees F (-18 to 204 degrees C). The pressure rating is 1000 psi (68.9 bar) WOG non-shock and 125 psi (8.6 bar) WSP.
| Specifications | |
|---|---|
| EANUCCCode | 098268386684 |
| MaximumTemperature-Fahrenheit | 400 |
| MinimumTemperature-Celsius | -18.00 |
| MinimumTemperature-Fahrenheit | 0 |
