LF4L-150 3/4
×
![]()
Part of the LF4L Series
Ordering Code: 0556050
UPC: 098268776980

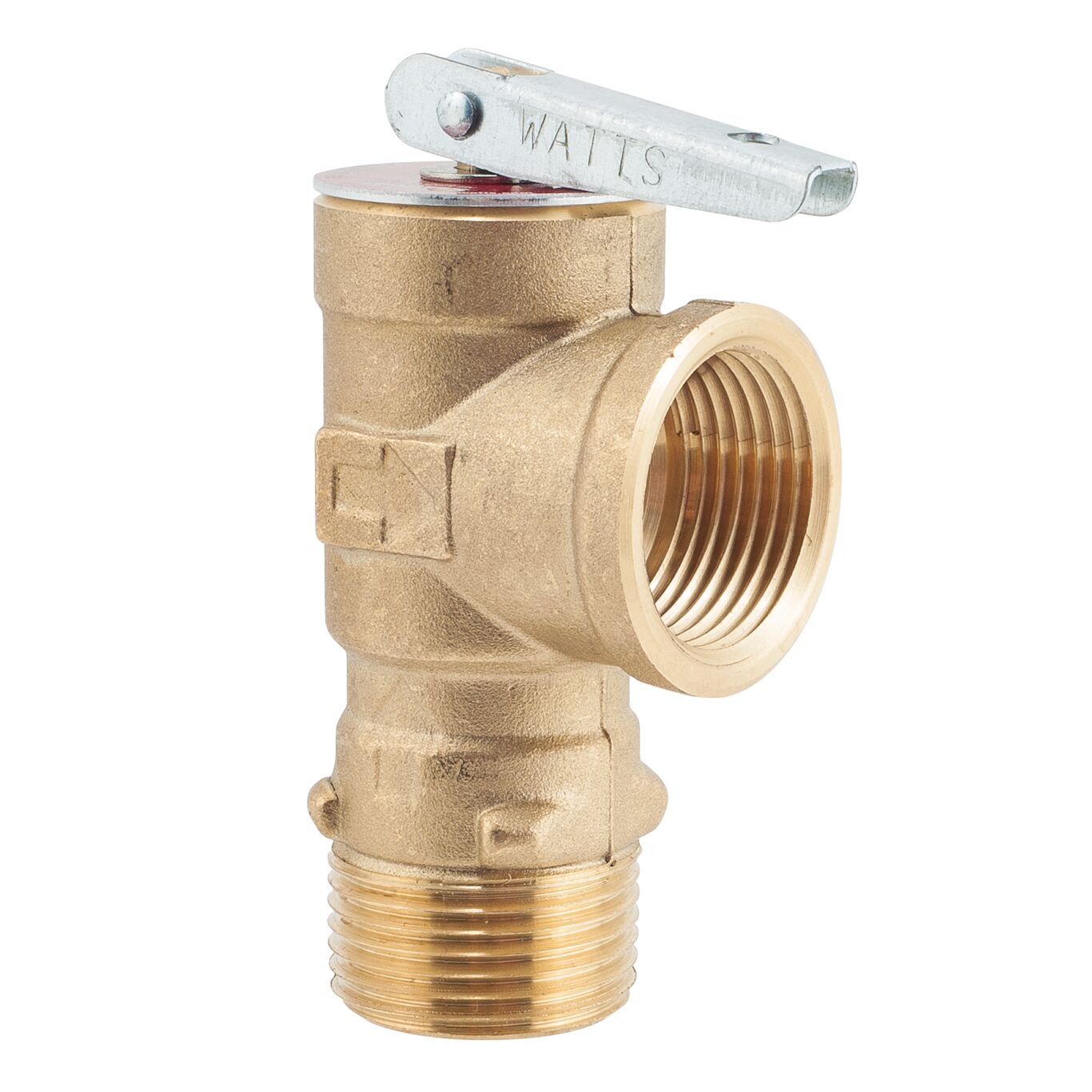

3/4 In Lead Free Poppet Type Pressure Relief Valve with Test Lever and 3/4 In NPT Female Drain Outlet, Set at 150 psi
This 3/4 inch pressure relief valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a lead free body construction with 3/4 inch NPT threaded male inlet and 1/2 inch NPT threaded female (drain) outlet, test lever, and stainless steel spring. It is ANSI Z21.22 approved, ASME rated and design certified and listed by CSA. The pressure relief is set at 150 psi (10.3 bar).
| Specifications | |
|---|---|
| BuyAmericanAct | YES |
| EANUCCCode | 098268776980 |
| MaximumWorkingPressure-PSI | 150 |
| PressureReliefSetting-PSI | 150 |
