LFBP30

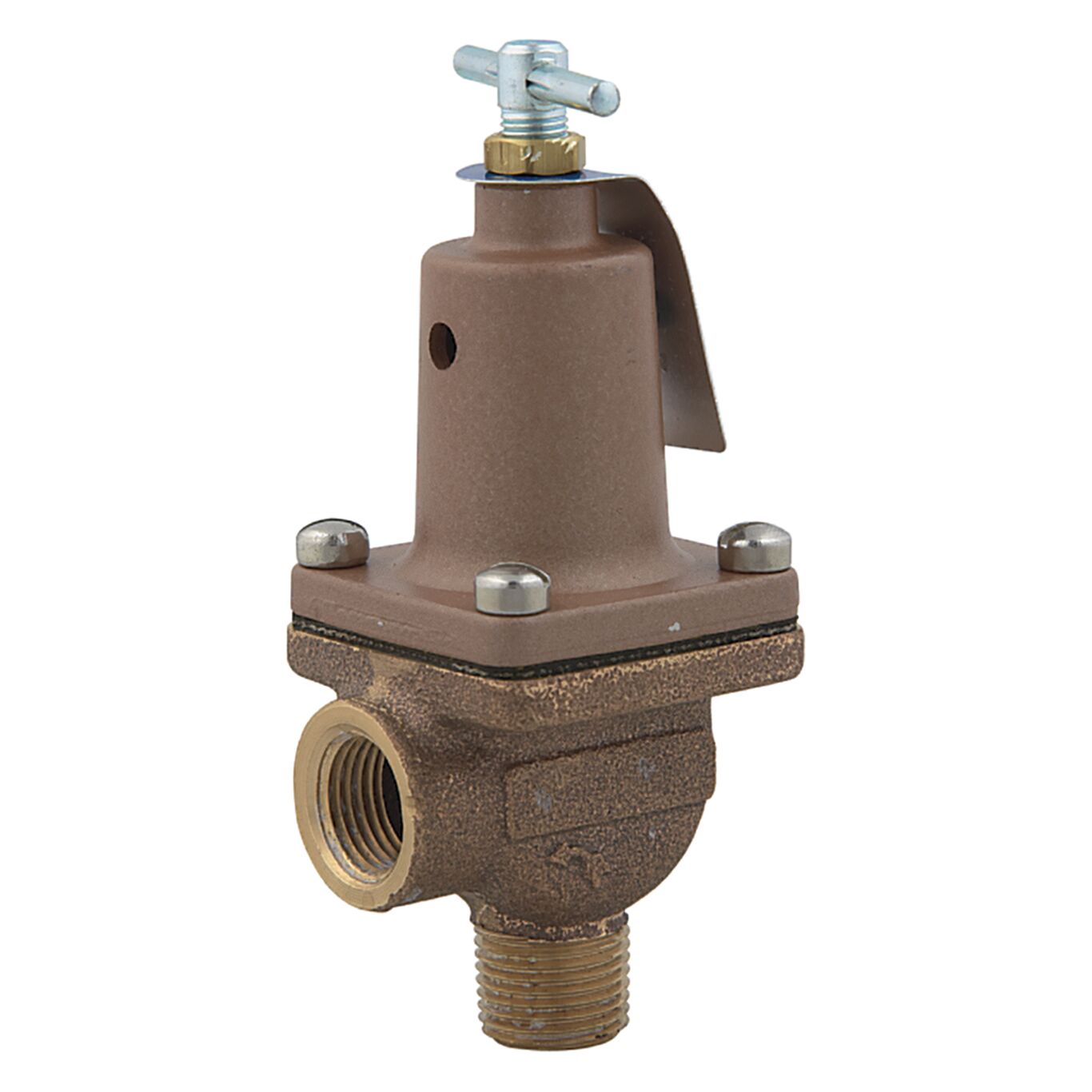

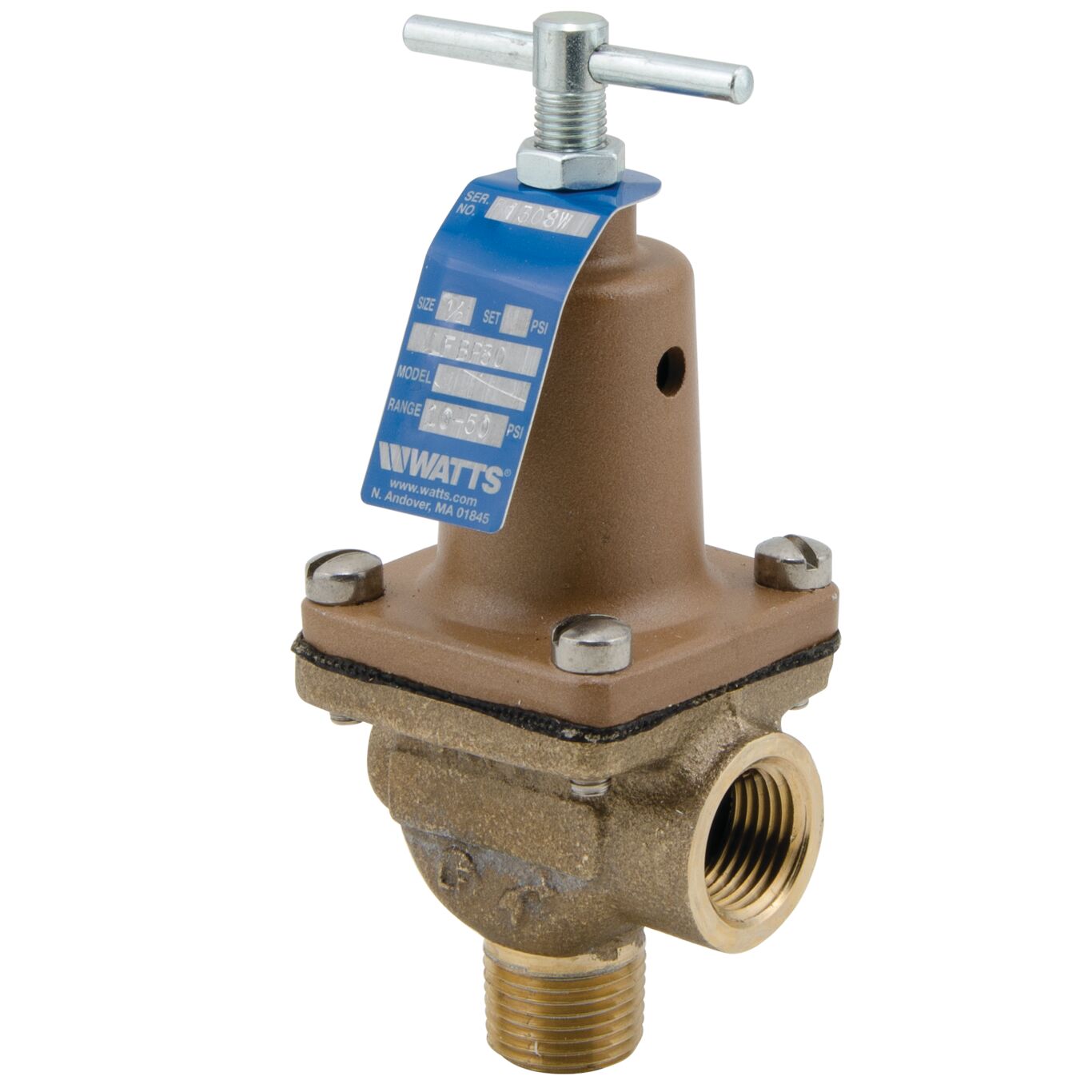

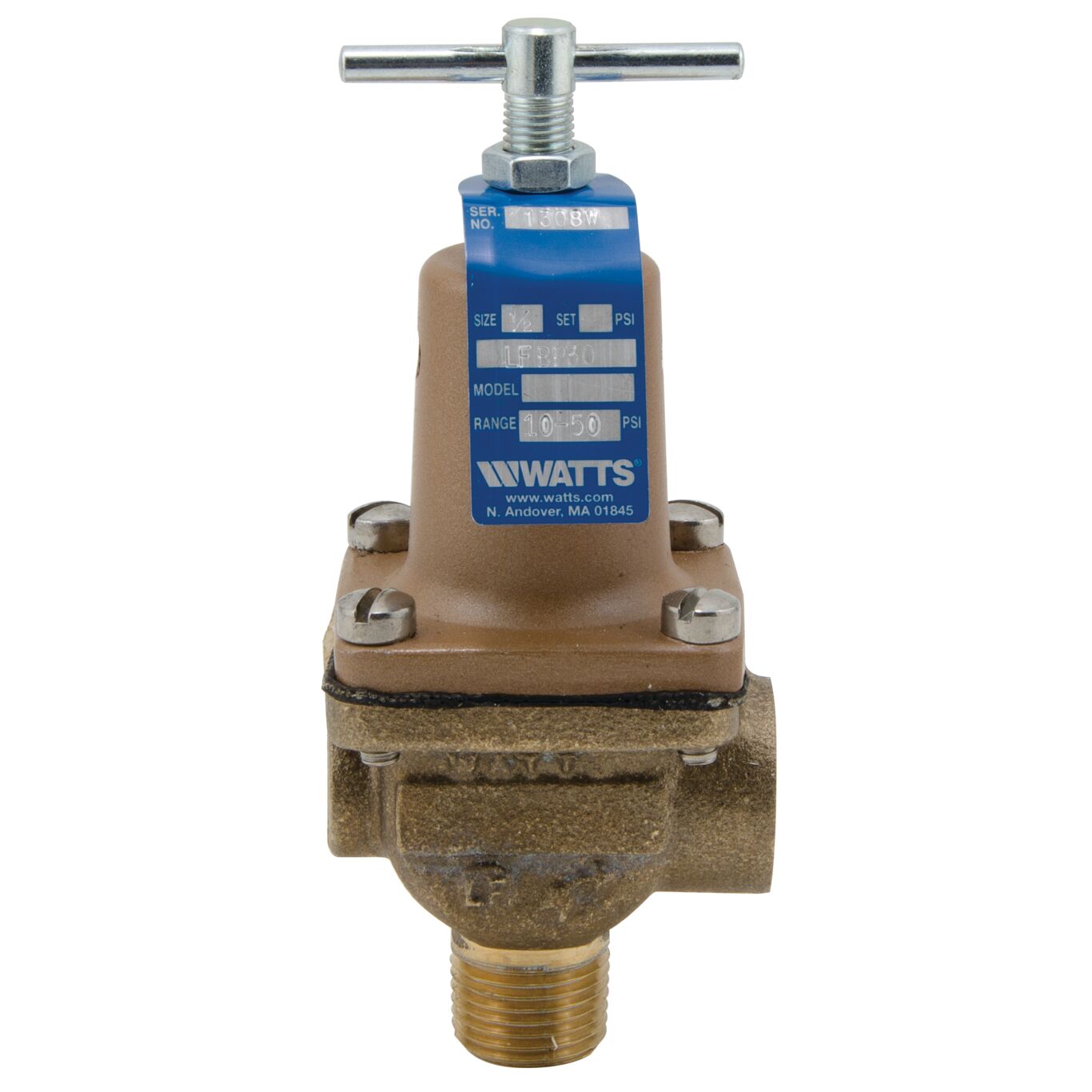

Lead Free* Diaphragm Operated Bypass Control Relief Valves
Series LFBP30 Lead Free* Diaphragm Operated Bypass Relief Valves regulate liquid pressure as supplied by a positive pressure pump. These relief valves protect equipment by opening at desired setting and allowing excess volume to be bypassed back to source. They feature Lead Free* cast copper silicon alloy body construction, sensitive rubber diaphragms, and Buna-N discs. The tee handle facilitates pressure change. The spring and adjustment handle are free from contact with the liquid elements being controlled. The maximum temperature for this series is 180 degreeF (82 degreeC). The LFBP30 features Lead Free* construction to comply with Lead Free* installation requirements.
Features
- Diaphragm operated bypass relief valve with sensitive rubber diaphragm protects equipment by allowing excess volume to be bypassed back to the source
- Easy-to-operate tee handle facilitates pressure change
- Adjustment handle and spring are free from contact with the liquids being controlled
- Lead Free* cast copper silicon alloy body
