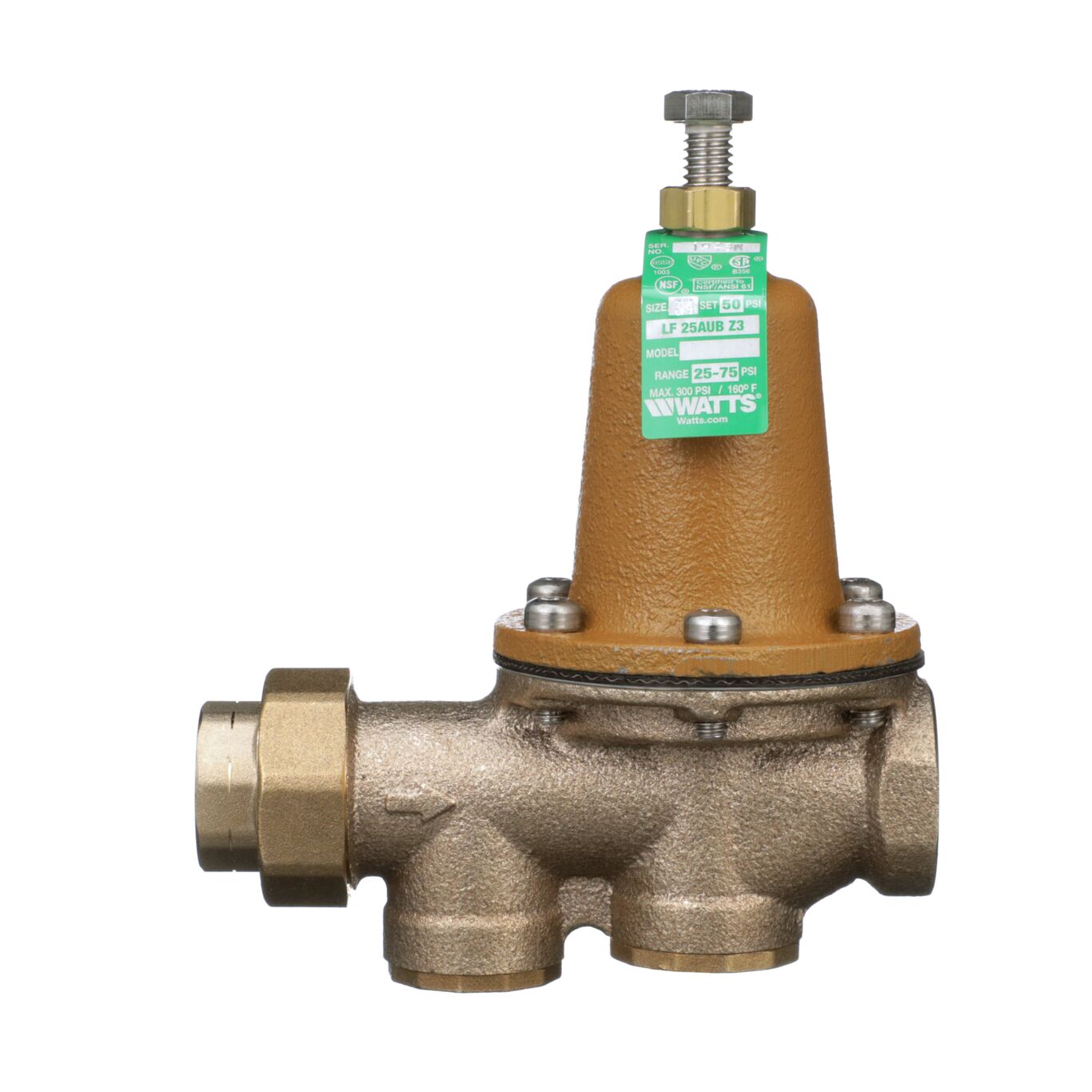

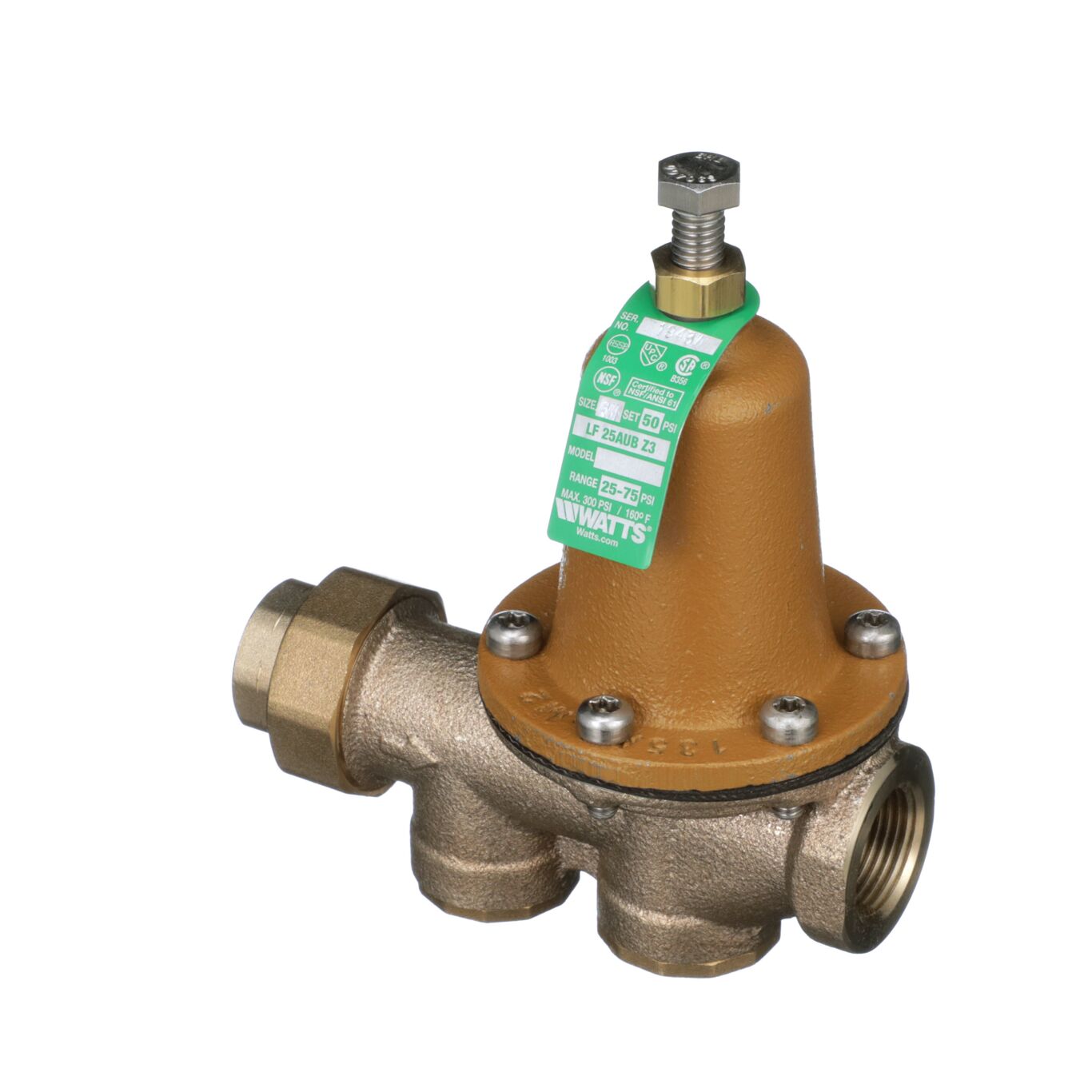

LF25AUB-Z3 3/4
Part of the LF25AUB-Z3 Series
Ordering Code: 0009257
UPC: 098268329704
3/4 In Lead Free Water Pressure Reducing Valve, NPT Female Union x NPT Female, Polymer Seat, Adjustable Pressure Range 25-75 psi
This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial, and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The standard pressure setting is 50 psi (345 kPa) with maximum working pressure at 300 psi (20.7 bar).
| Specifications | |
|---|---|
| AdjustableReducedPressureRange-BAR | 1.7 to 5.2 |
| BodyMaterial | Lead Free Cast Copper Silicon Alloy |
| BuyAmericanAct | YES |
| EANUCCCode | 098268329704 |
| MaximumOperatingTemperature-Fahrenheit | 180 |
| MaximumWorkingPressure-BAR | 20.70 |
| MaximumWorkingPressure-PSI | 300 |
| MinimumTemperature-Celsius | 0.50 |
| MinimumTemperature-Fahrenheit | 33 |
| StandardReducedPressureSetting-BAR | 3.40 |
| StandardReducedPressureSetting-PSI | 50 |
