LF25AUB-S-LP-Z3 1 1/2
Part of the LF25AUB-Z3 Series
Ordering Code: 0009429
UPC: 098268331837

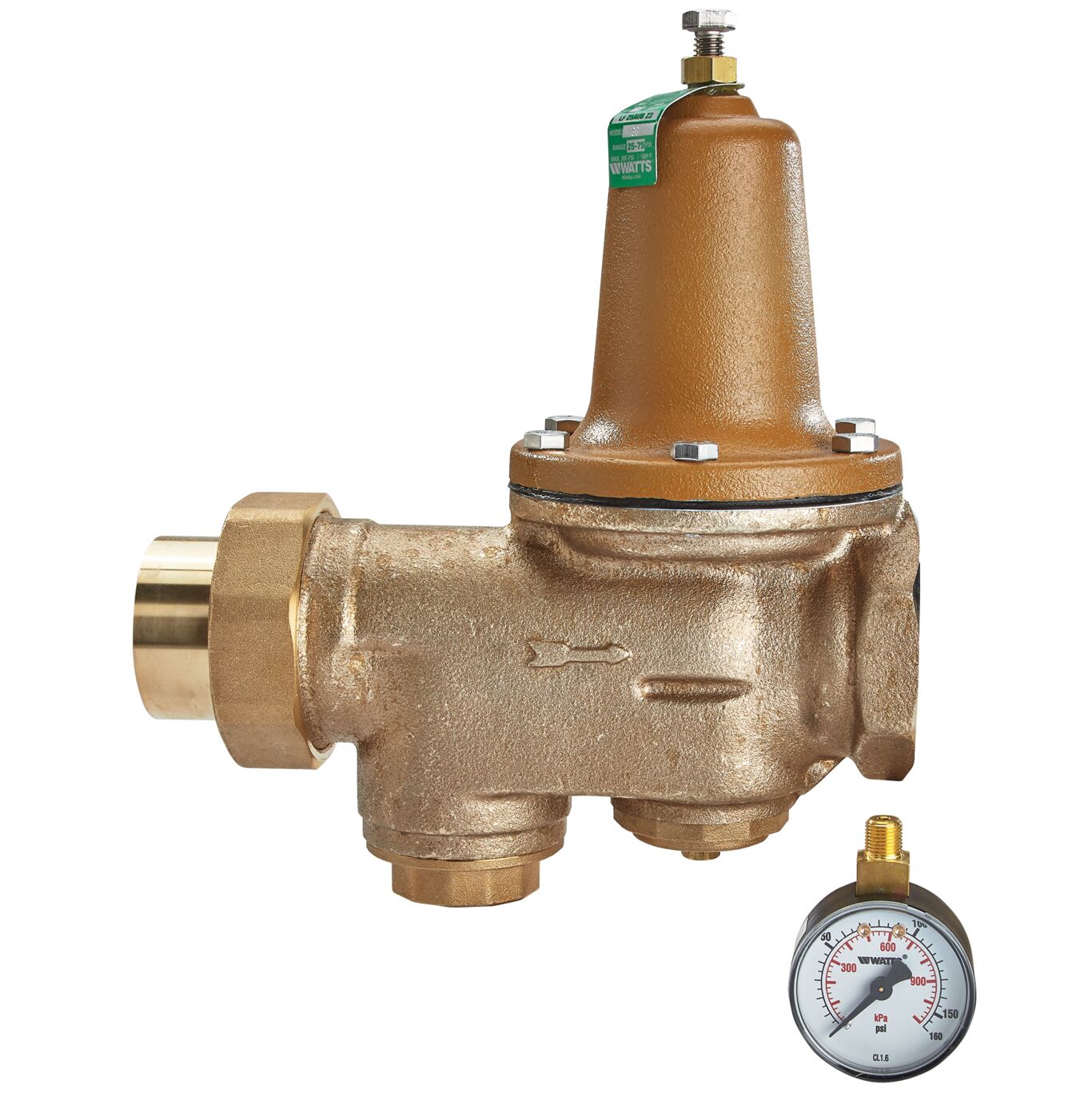

1 1/2 IN Lead Free Water Pressure Reducing Valve, Solder x NPT Female, SS Seat, Gauge, Low Pressure Range 10-35 psi
This 1 1/2 inch bronze water pressure reducing valve for low pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, solder union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). The low pressure range is 10 to 35 psi (69 to 241 kPa) with the standard setting at 30 psi (207 kPa).
| Specifications | |
|---|---|
| AdjustableReducedPressureRange | 10 to 35 |
| AdjustableReducedPressureRange-BAR | 0.7 to 2.4 |
| BodyMaterial | Lead Free Cast Copper Silicon Alloy |
| DiscMaterial | EPDM |
| EANUCCCode | 098268331837 |
| MaximumOperatingTemperature-Fahrenheit | 180 |
| MaximumWorkingPressure-BAR | 20.70 |
| MaximumWorkingPressure-PSI | 300 |
| MinimumTemperature-Celsius | 0.50 |
| MinimumTemperature-Fahrenheit | 33 |
| StandardReducedPressureSetting-BAR | 3.40 |
| StandardReducedPressureSetting-PSI | 50 |
