LF25AUB-LP-Z9 3/4
×
![]()
Part of the LF25AUB-Z3 Series
Ordering Code: 0009281
UPC: 098268330076

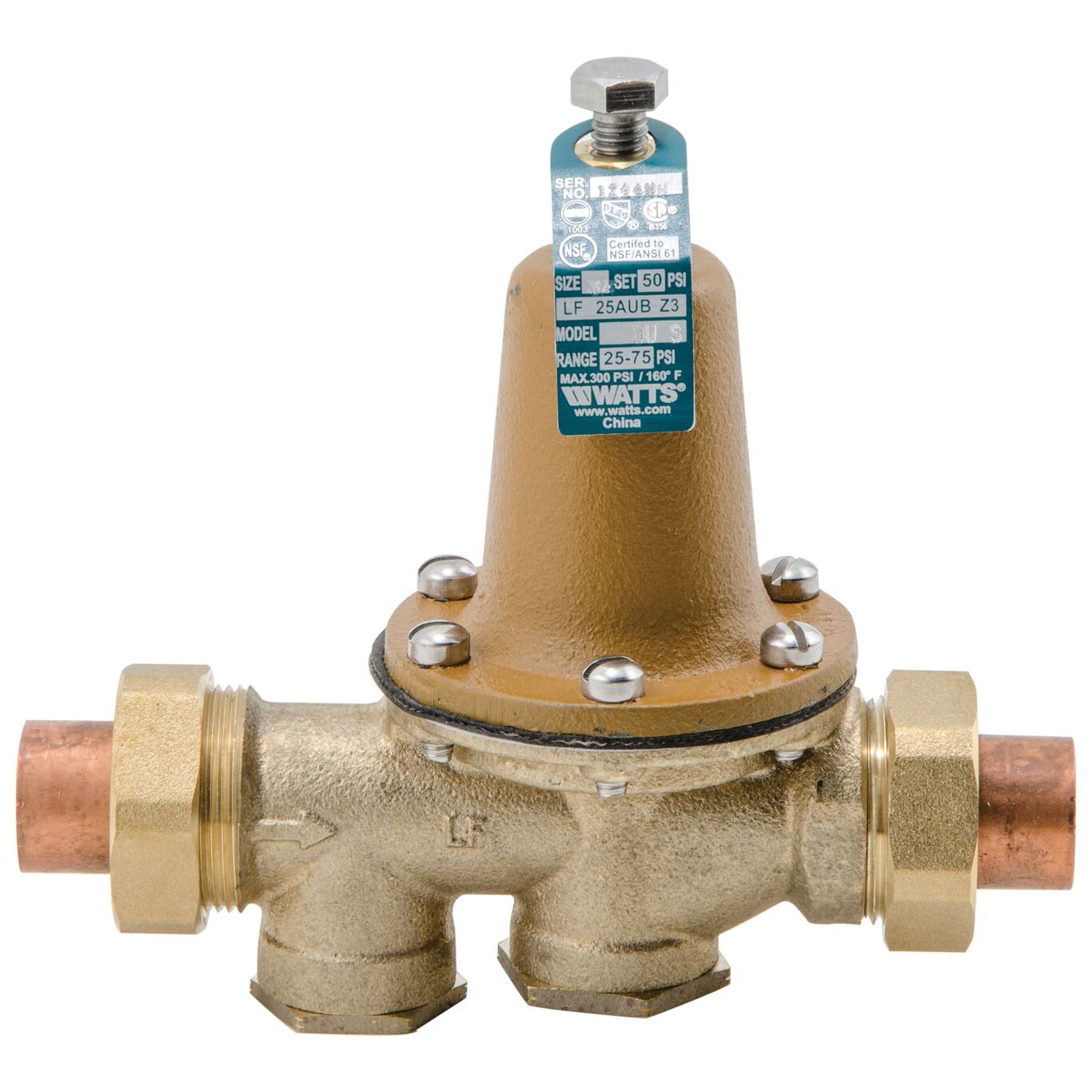

3/4 In Lead Free Water Pressure Reducing Valve For Low Pressure
This 3/4 inch lead free brass water pressure reducing valve for low pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. It consists of a lead free brass body, replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C) and the reduced pressure rating is set at 20 psi (138 kPa).
| Specifications | |
|---|---|
| AdjustableReducedPressureRange | 10 to 35 |
| AdjustableReducedPressureRange-BAR | 0.7 to 2.4 |
| BodyMaterial | Lead Free Cast Copper Silicon Alloy |
| BuyAmericanAct | YES |
| DiscMaterial | EPDM |
| EANUCCCode | 098268330076 |
| MaximumOperatingTemperature-Fahrenheit | 180 |
| MaximumWorkingPressure-BAR | 20.70 |
| MaximumWorkingPressure-PSI | 300 |
| MinimumTemperature-Celsius | 0.50 |
| MinimumTemperature-Fahrenheit | 33 |
| StandardReducedPressureSetting-BAR | 3.40 |
| StandardReducedPressureSetting-PSI | 50 |
