LF25AUB-DU-Z3 2
Part of the LF25AUB-Z3 Series
Ordering Code: 0009442
UPC: 098268331981

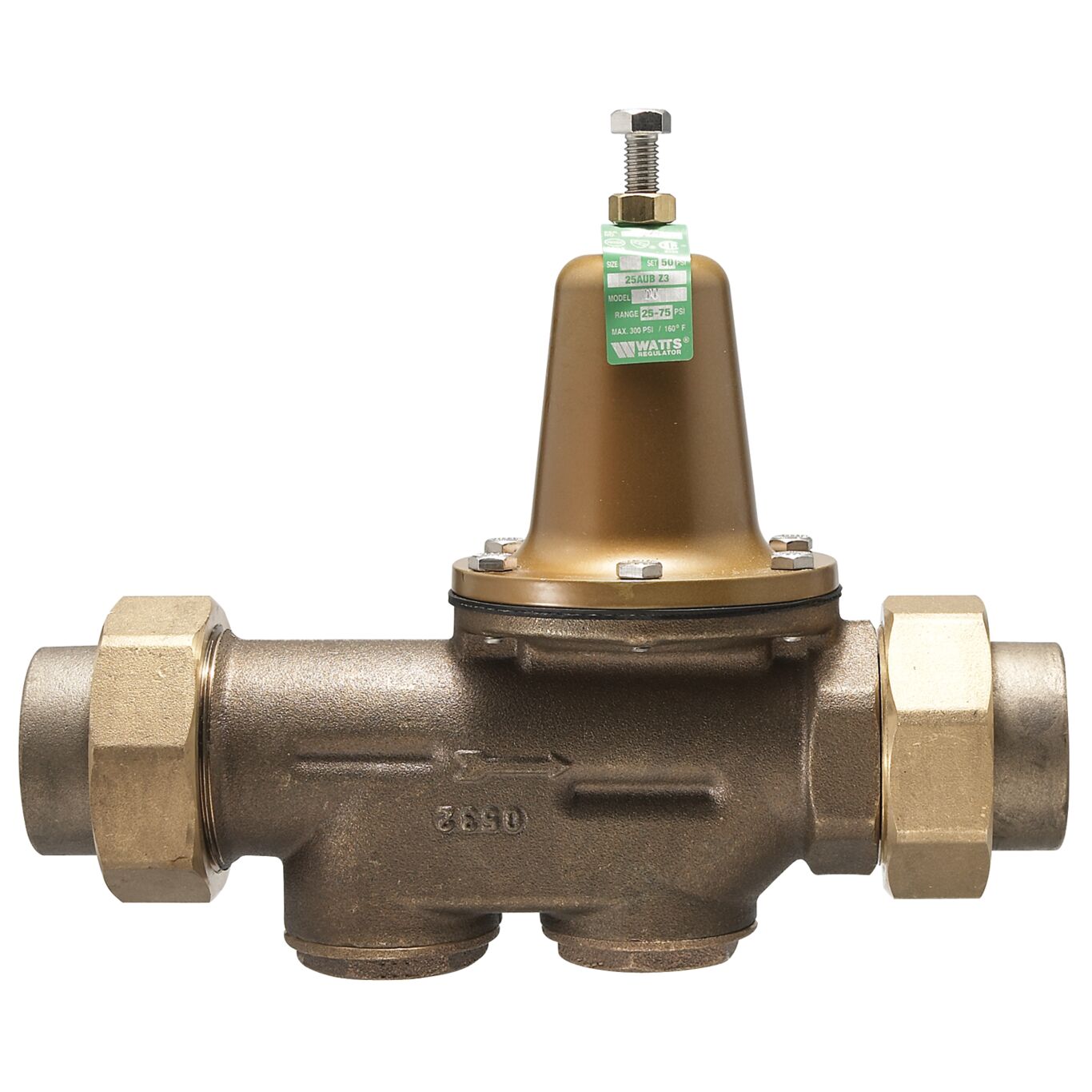

2 In Lead Free Water Pressure Reducing Valve, Double Union, NPT Female, SS Seat, Adjustable 25-75 psi
This 2 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, double union NPT threaded female inlet and outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
| Specifications | |
|---|---|
| AdjustableReducedPressureRange-BAR | 1.7 to 5.2 |
| BodyMaterial | Lead Free Cast Copper Silicon Alloy |
| BuyAmericanAct | YES |
| EANUCCCode | 098268331981 |
| MaximumOperatingTemperature-Fahrenheit | 180 |
| MaximumWorkingPressure-BAR | 20.70 |
| MaximumWorkingPressure-PSI | 300 |
| MinimumTemperature-Celsius | 0.50 |
| MinimumTemperature-Fahrenheit | 33 |
| StandardReducedPressureSetting-BAR | 3.40 |
| StandardReducedPressureSetting-PSI | 50 |
