LF123LP 3/4
×
![]()
Part of the LF123LP Series
Ordering Code: 0121225
UPC: 098268580242

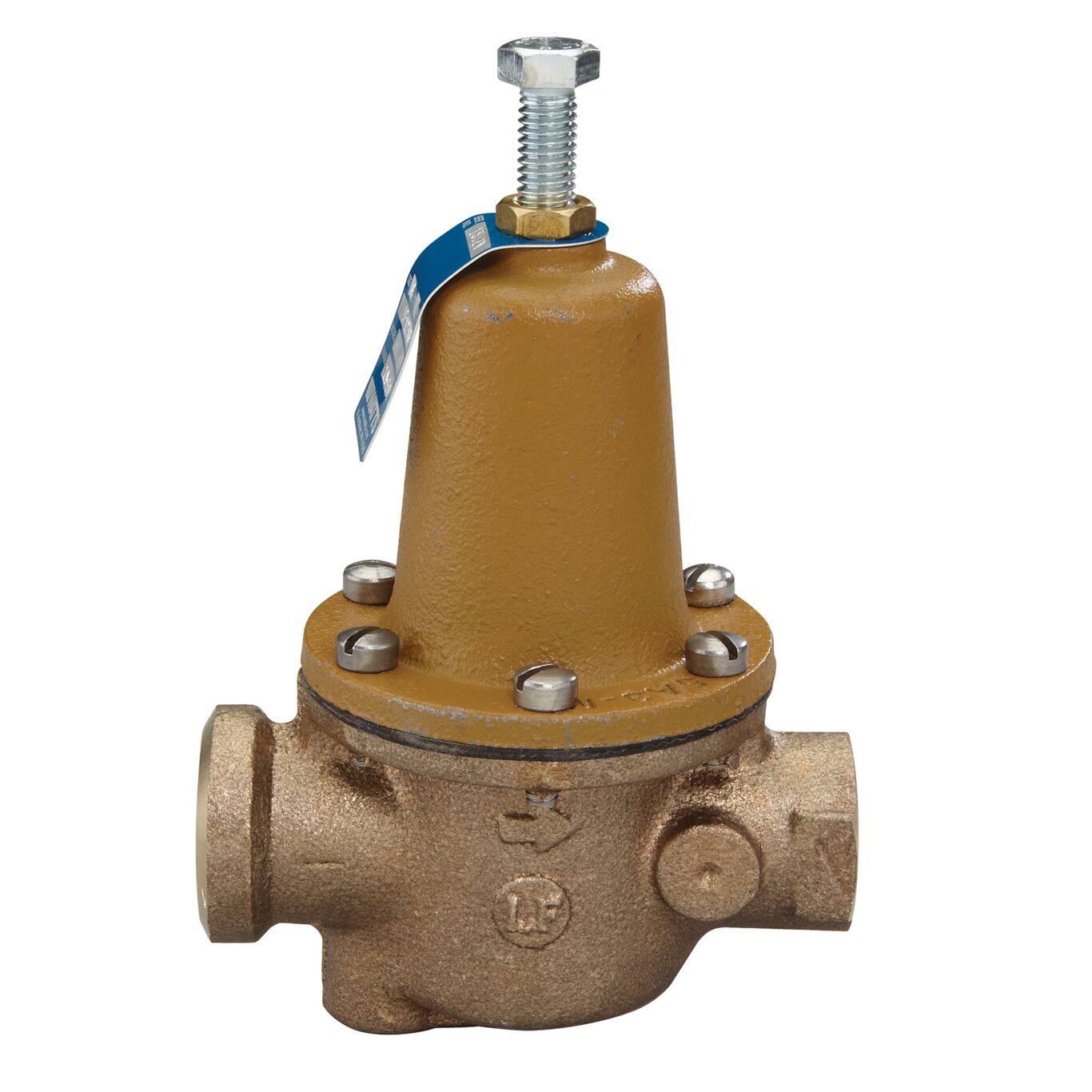

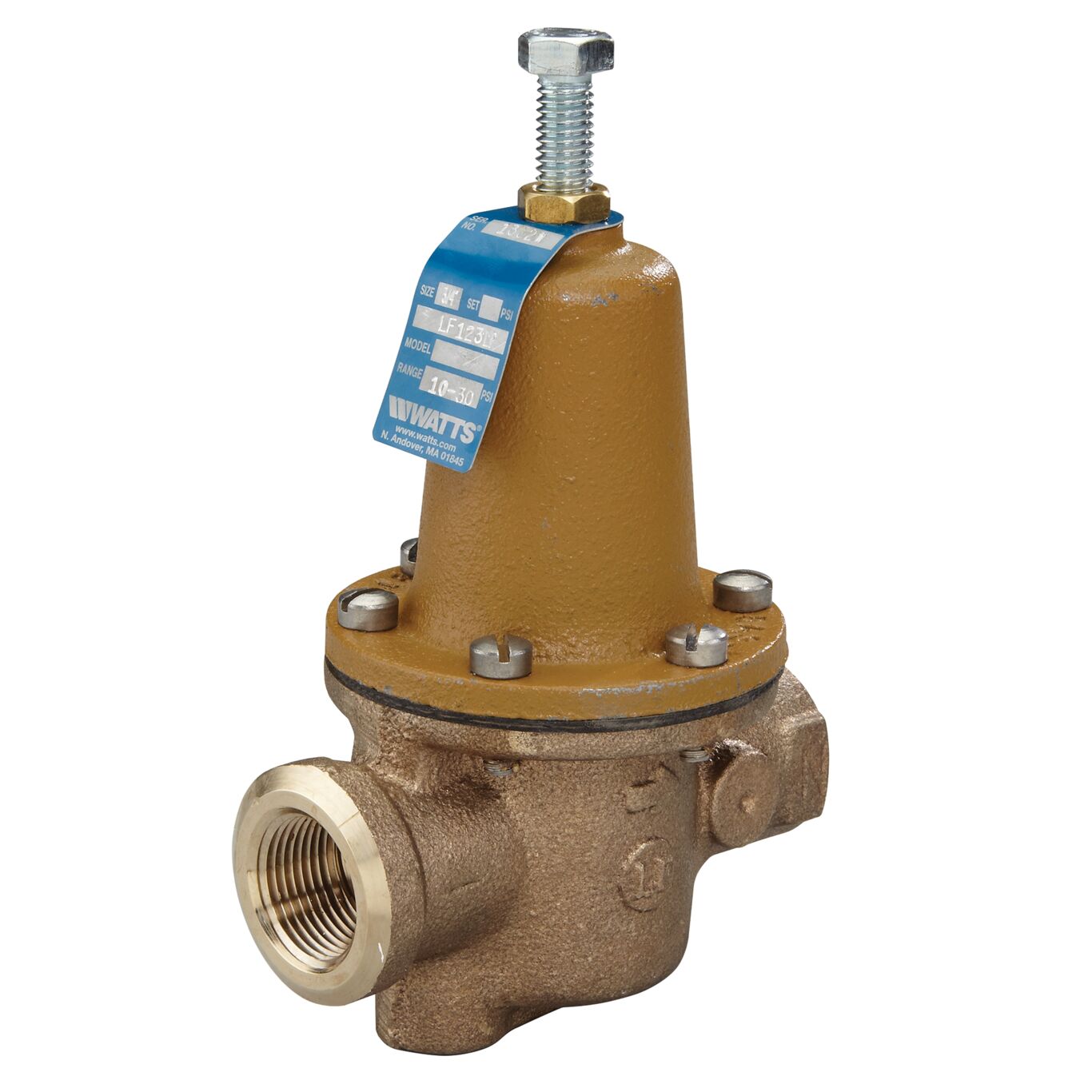

3/4 IN Lead Free Low Pressure Reducing Valve, Reduced Range 10-30 psi
This 3/4 inch lead free low water pressure regulator is used in residential and point of use applications to regulate water pressure in piping systems that require low pressure regulation. This regulator is serviceable in-line. It consists of a lead free body construction, NPT threaded female connections, stainless steel seat, stainless steel integral strainer, reinforced EPDM diaphragm, and EPDM valve disc. The adjustable reduced pressure range is 10 to 30 psi (0.68 to 2.0 bar) and is factory set at 25 psi (1.7 bar).
| Specifications | |
|---|---|
| EANUCCCode | 098268580242 |
| MaximumOperatingTemperature-Fahrenheit | 180 |
| MaximumWorkingPressure-BAR | 13.80 |
| MaximumWorkingPressure-PSI | 200 |
| MinimumTemperature-Celsius | 0.50 |
| MinimumTemperature-Fahrenheit | 33 |
| StandardReducedPressureSetting-BAR | 2.10 |
| StandardReducedPressureSetting-PSI | 30 |
