LFN45BDU-EZ-PEXXPEX-M1 3/4
Part of the LFN45B-EZ Series
Ordering Code: 0125314
UPC: 098268860436

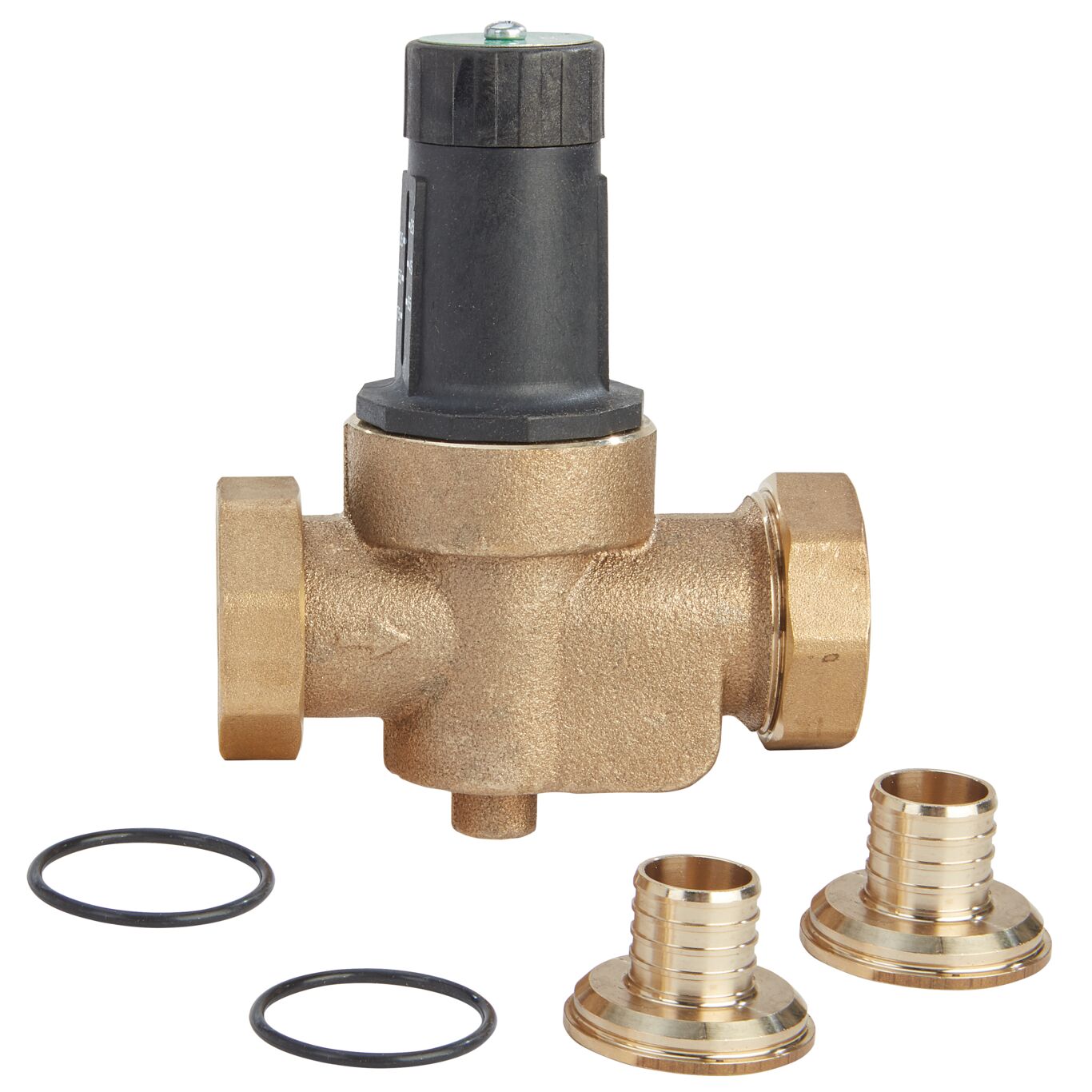

3/4 IN Lead Free Water Pressure Reducing Valve, Double Union, PEX Union Inlet and Outlet, Adjust 25-75 psi, Factory Calibrated
This 3/4 inch lead free brass cartridge style water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing components and reduce the water consumption for commercial, industrial and residential applications. It features a lead free cast copper silicon alloy body, thermoplastic seat cartridge, crimp union end connections, reinforced diaphragm, easy to adjust pressure setting, and a bypass valve to control thermal expansion pressure. The reduced pressure rating is set at 50 psi (345 kPa). The maximum working pressure is 400 psi (27.6 bar) and temperature range is 33 to 180 degrees F (0.5 to 82 degrees C).
| Specifications | |
|---|---|
| BodyMaterial | Lead Free Copper Silicon Alloy |
| CorrosionResistantCoating | Yes |
| EANUCCCode | 098268860436 |
| HighPressureReducedPressureRange | Does Not Apply To Product |
| HighPressureReducedPressureSetting | Does Not Apply To Product |
| MaximumOperatingTemperature-Fahrenheit | 180 |
| MaximumWorkingPressure-BAR | 27.60 |
| MaximumWorkingPressure-PSI | 400 |
| MinimumTemperature-Celsius | 0.50 |
| MinimumTemperature-Fahrenheit | 33 |
| StandardReducedPressureSetting-BAR | 3.40 |
| StandardReducedPressureSetting-PSI | 50 |
| TrimMaterial | Engineered Composite |
