HydroGuard LFLM490 Cabinet

HydroGuard LFLM490 supply fixtures with cabinets

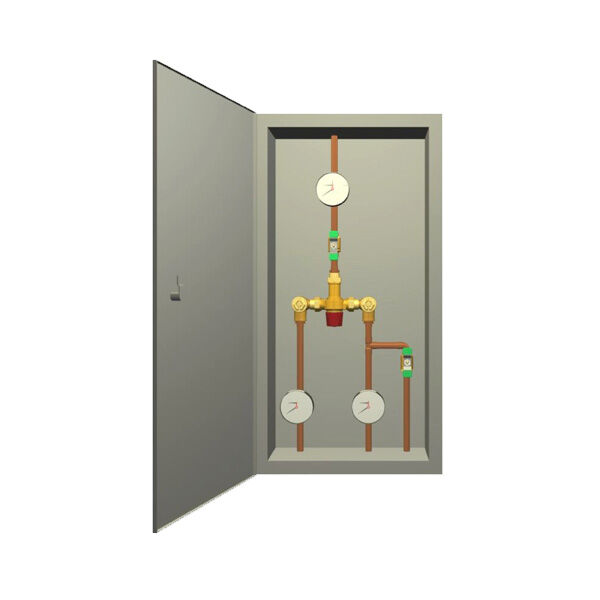

Powers HydroGuard LFLM series Lead Free* cabinet supply fixtures are fully assembled and factory tested. Each system is equipped with a LFLM490 series thermostatic tempering valve, featuring Powers advanced paraffin actuation technology for fast response. Standard features include pressure/temperature gauge, outlet ball valve and triple-duty check stops. Optional equipment includes inlet pressure/temperature gauges, cold water by-pass and AquaSentry2 high-temperature alarm. Cabinets are available in recessed, semi-recessed and wall-mount styles. Construction includes stainless steel and powder coated steel. Tempering valves are listed to ASSE 1017 and CSA B125.

Size this now with our Selexit sizing tool.

Features

Supply fixtures are fully assembled and factory tested, with cabinets available in several styles
Includes pressure/temperature gauge, outlet ball valve, and triple-duty check stops
Equipped with fast response LFLM490 Series thermostatic tempering valve listed to ASSE 1017 and CSA B125
Optional equipment includes inlet pressure/temperature gauges, cold water by-pass, and AquaSentry2 high-temperature alarm

Literature

Find a Sales Representative

Find a Wholesaler/Distributor

View Warranty Customer Support Access BIM Drawings

Build Your Spec in Under 5 Minutes

Learn More

Approval/Certification Information

For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:

ASSE	CSA	FM Approvals	NSF
UL	ULC	USC	WQA
