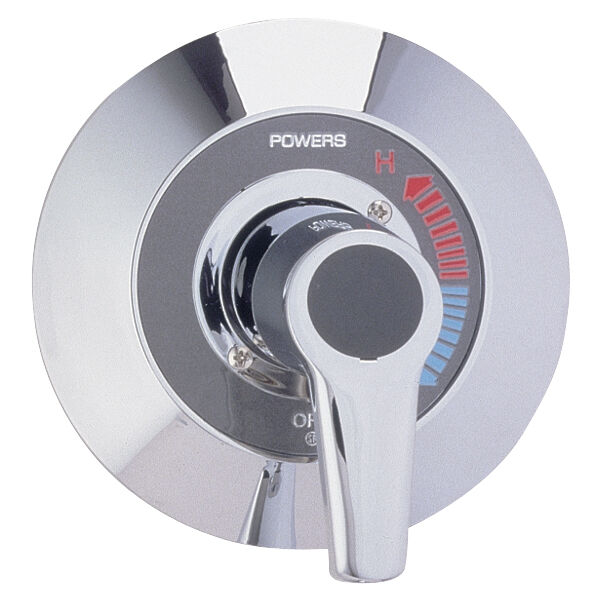

Biltmore series pressure balancing mixing valves
Concealed, 4-port, pressure balancing water mixing valve for use in shower and tub/shower applications. Cast-brass body features diaphragm-type pressure balancing mechanism. Internal parts constructed of lime-resistant Delrin 500 for years of trouble-free service. Built-in adjustable temperature limit stop reduces the chance of thermal shock from overadjustment of handle. Cast-in checkstops reduce installation time. Unique construction allows for shallow wall installation in as little as 51mm (2 in.). Back-to-back installation possible in only 102mm (4 in.) without costly cross-piping.
Features
- Near instantaneous response to changes in both hot and cold supply line pressure ensures a safe and comfortable shower
- Proven diaphragm/poppet cartridge provides reliable pressure balancing control and maximum protection against lime and dirt
- Commercial grade 4-port bronze casting and corrosion-resistant internal components for long life
- Ideal for hotel, motel, health club, and single and multi-family dwellings
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
