1170C-M2
Hot Water Temperature Control Valves

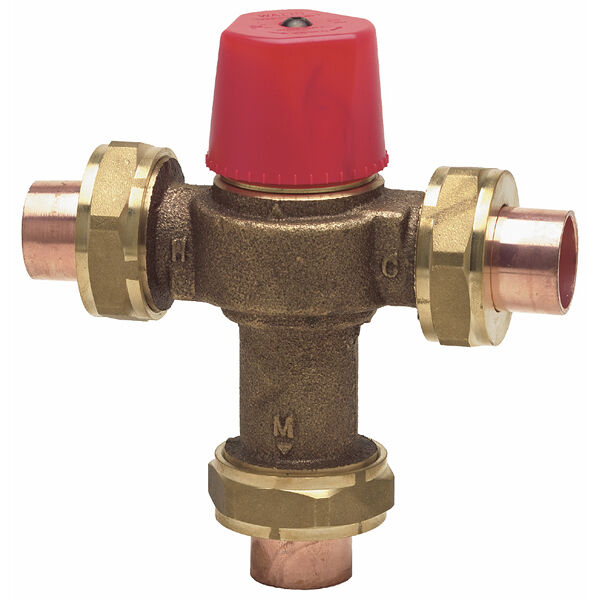

Series 1170C-M2 Hot Water Temperature Control Valves are used in commercial, residential, and institutional applications to reduce the temperature of the hot water supply. It consists of a bronze body construction with union thread, union solder, PEX or CPVC end connections, integral check valves, copper thermostat assembly, stainless steel disc and spring, Buna-N or EPDM O-rings, and Udel pistons. Series 1170C-M2 features a double-throttling design that combines the control of hot and cold water to provide a sensitive response to changes in water temperature passing through the mixing chamber. Temperature range is 90°F to 120°F (32°C to 49°C). Maximum Pressure is 150psi (10 bar).
Features
- Double throttling design provides sensitive response to changes in water temperature
- Solid wax hydraulic principle thermostat controls both hot and cold water, and is engineered to ensure dependable mixing of hot and cold fluids
- Flow of mixed water is safely restricted in the event that cold water supply is compromised
- Check valves and filter gaskets in both hot and cold water inlets protect against cross flow
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
