SCV
Service Check Valves

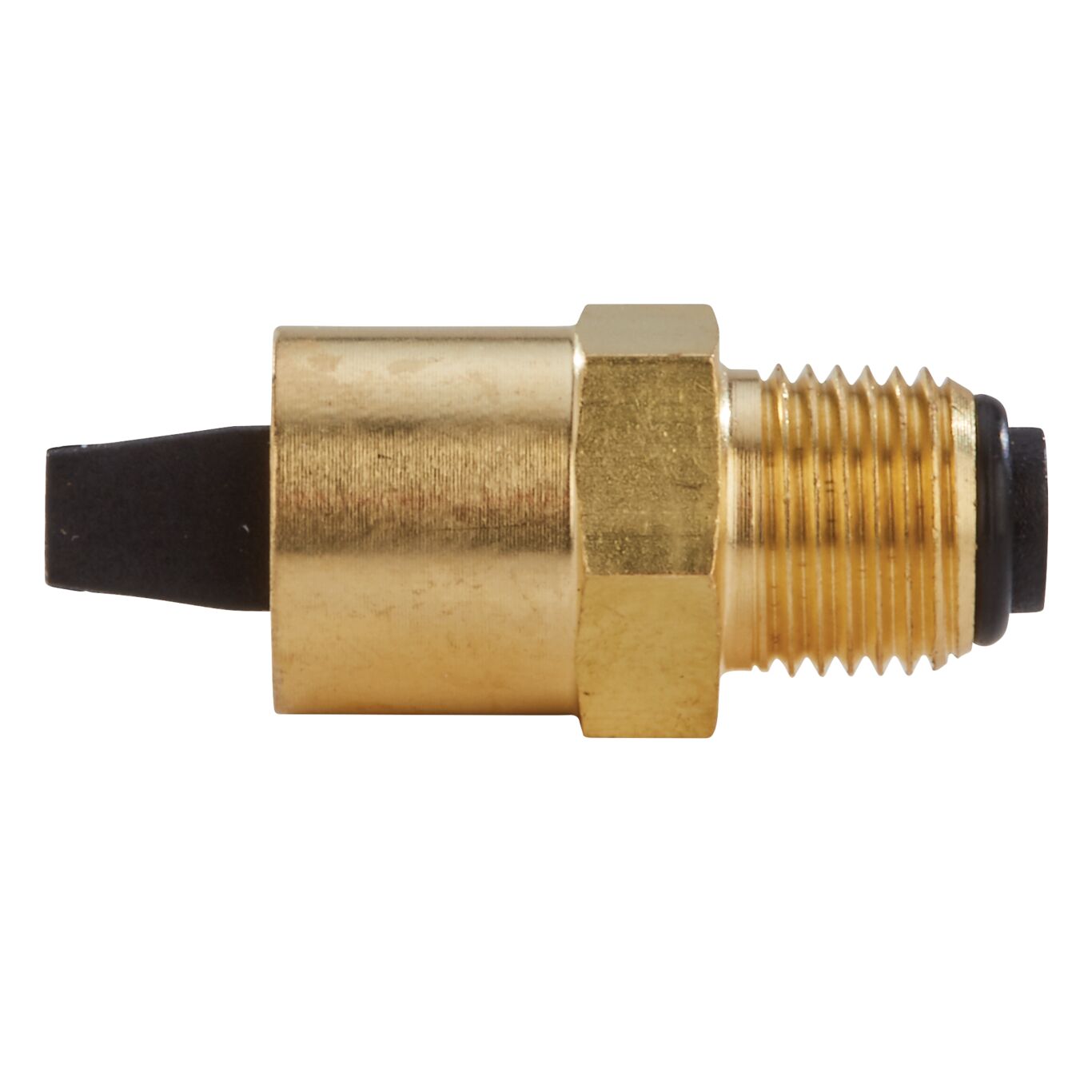

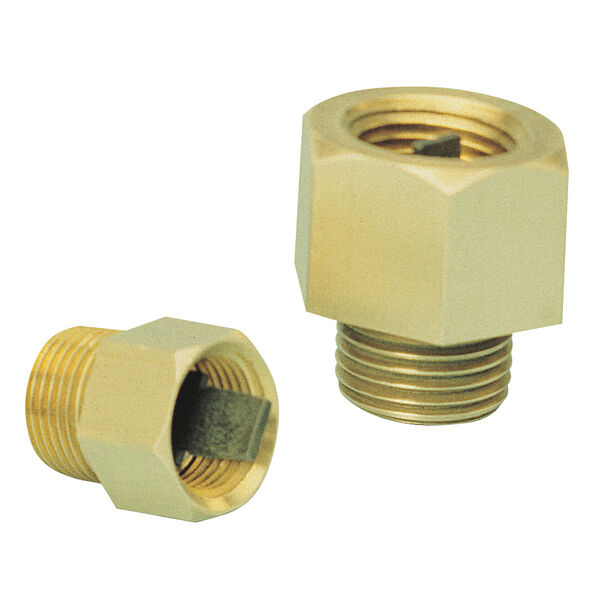

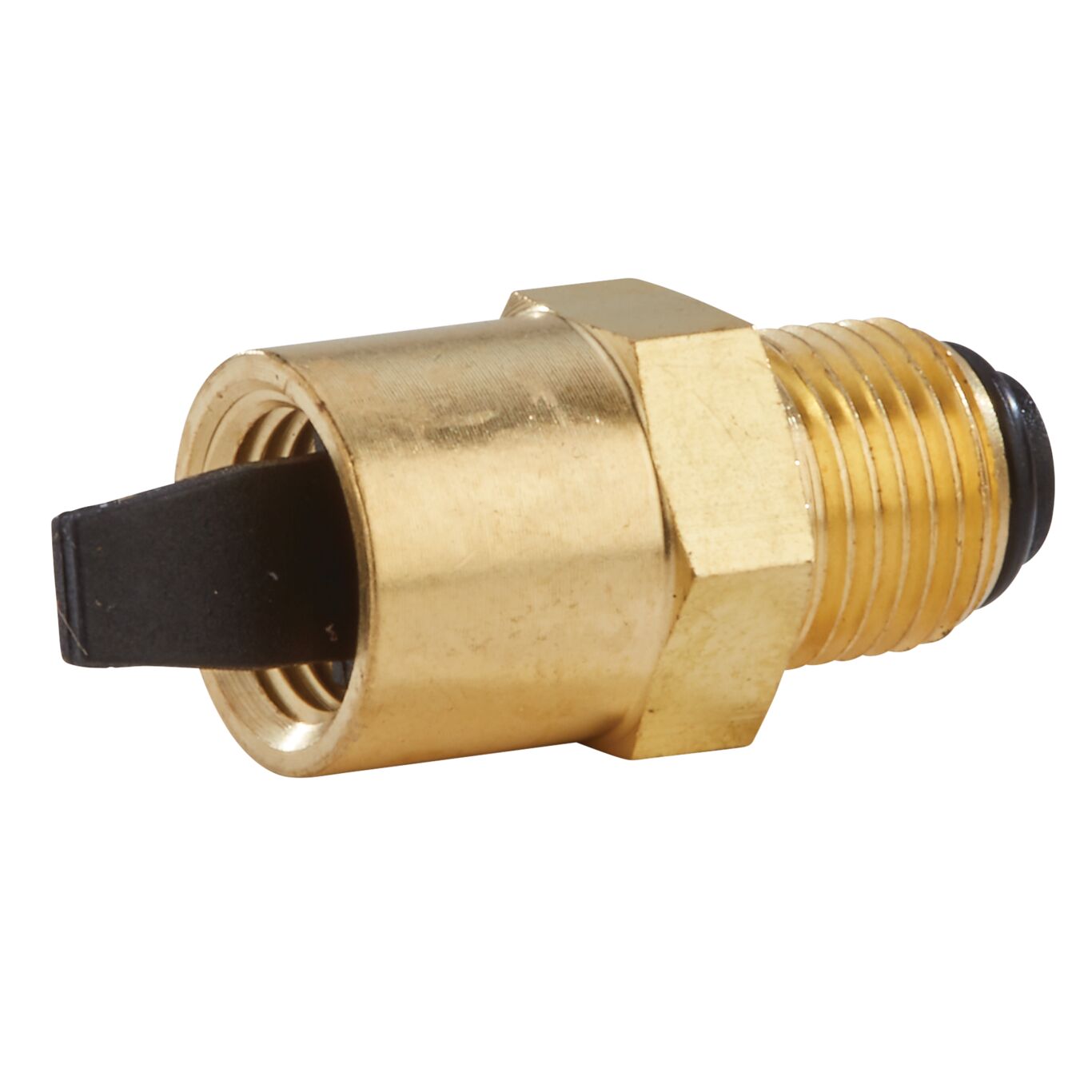

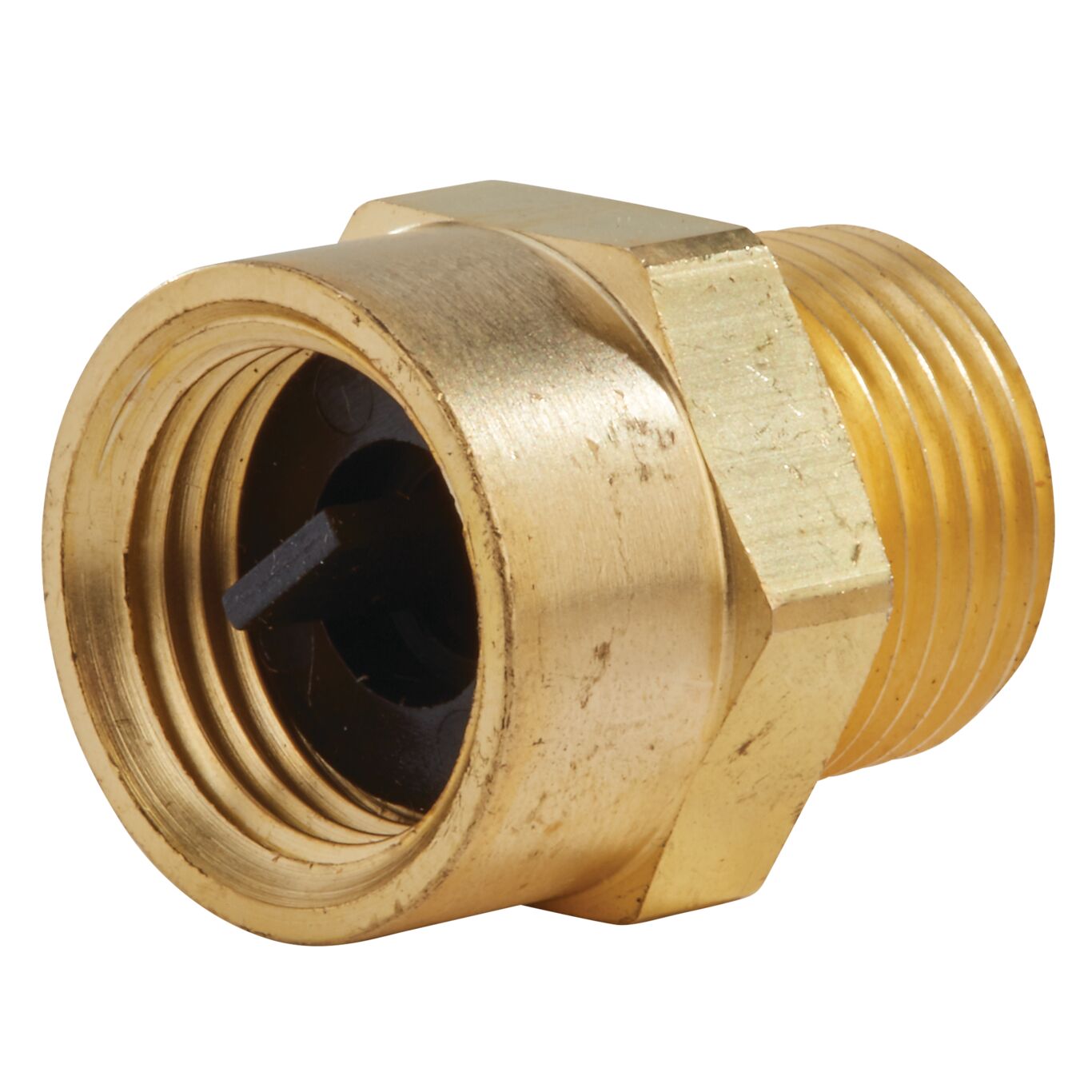

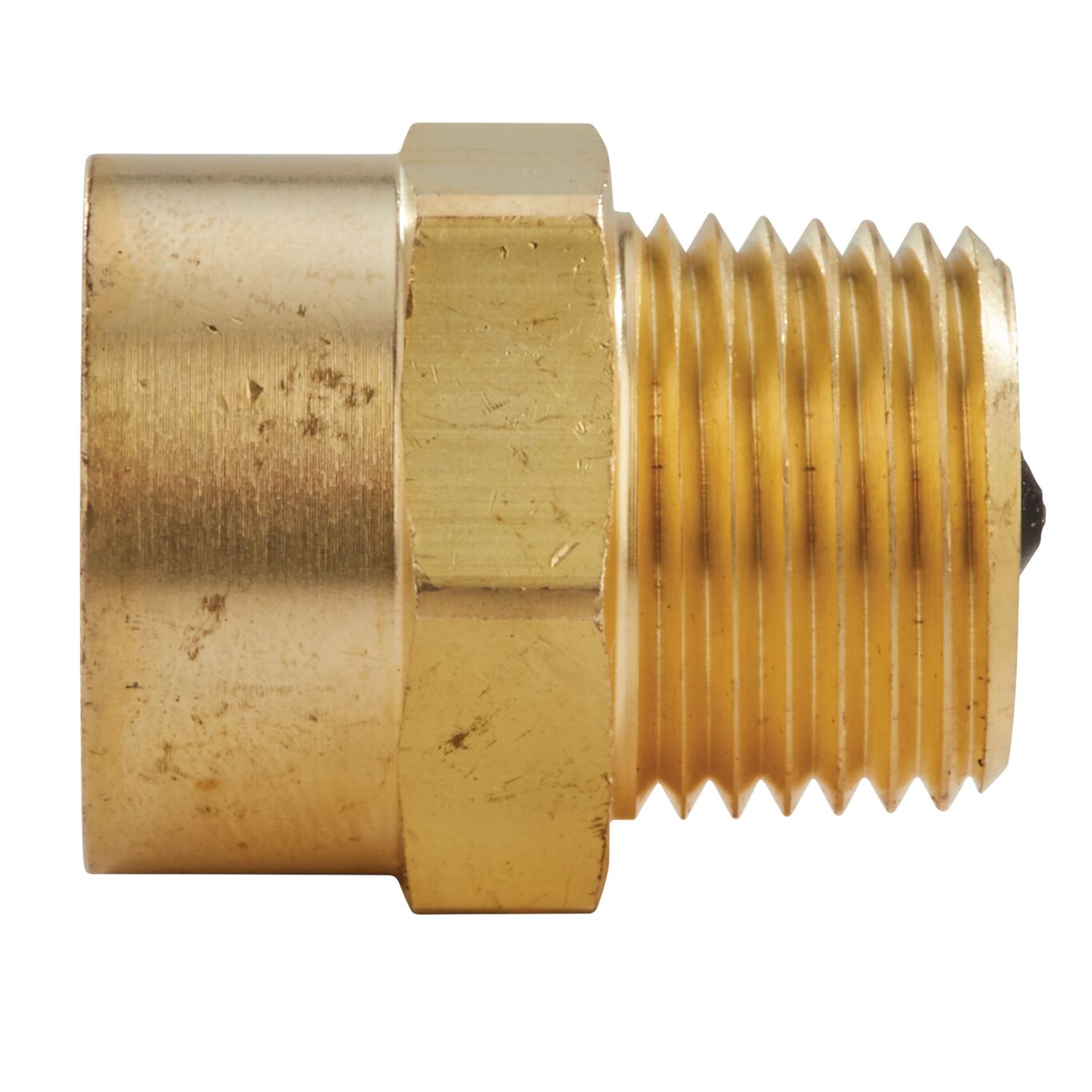

Series SCV Service Check Valves are used in heating applications between boiler piping and system components to facilitate the servicing of components under pressure, such as thermal expansion tanks and float vents, without draining the piping. As the component is threaded into the Service Check Valve, the spring loaded valve opens to system pressure. As the component is removed, the valve closes, maintaining system integrity while the component is being inspected. Series SCV is not to be used on safety relief valves or other safety or flow sensitive components.
Features
- Use between boiler piping and heating system components to facilitate servicing of components under pressure
- Allows components to be serviced without draining the piping
- Spring loaded valve opens and closes to maintain system integrity
- Not for use on safety relief valves or other safety or flow sensitive components
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
