142

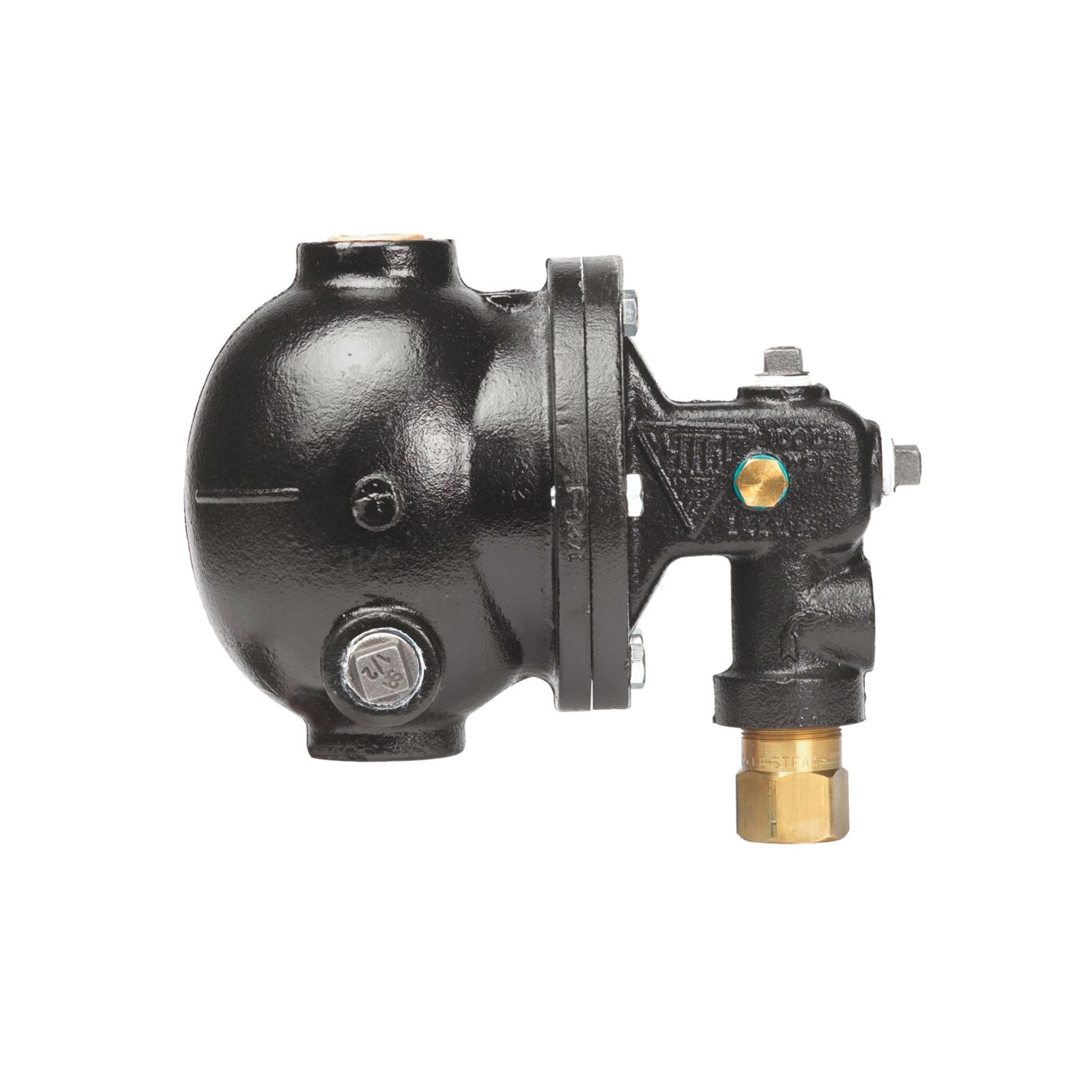

Process Boiler Water Feeders
Series 142 Process Boiler Water Feeders are used in heating applications on pressing machines when direct feed through the float chamber is permissible. The water pressure must be at least 10psi (68.9 kPa) higher than steam pressure. Series 142 is ideal for use in pressing machines and other small process boilers. Available in Model 142S with strainer. Maximum Water Pressure: 125psi (8.6 bar), Maximum Steam Pressure: 100psi (6.9 bar).
Features
- Used in heating applications on pressing machines when direct feed through the float chamber is permissible
- 1/2 in. NPT female water feed connection and a 1 in. NPT female float chamber connection
- Easy to install and inexpensive to operate
- Available with and without strainer
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
