RA-1-AP
×
![]()
Bronze Steam Radiator Valves

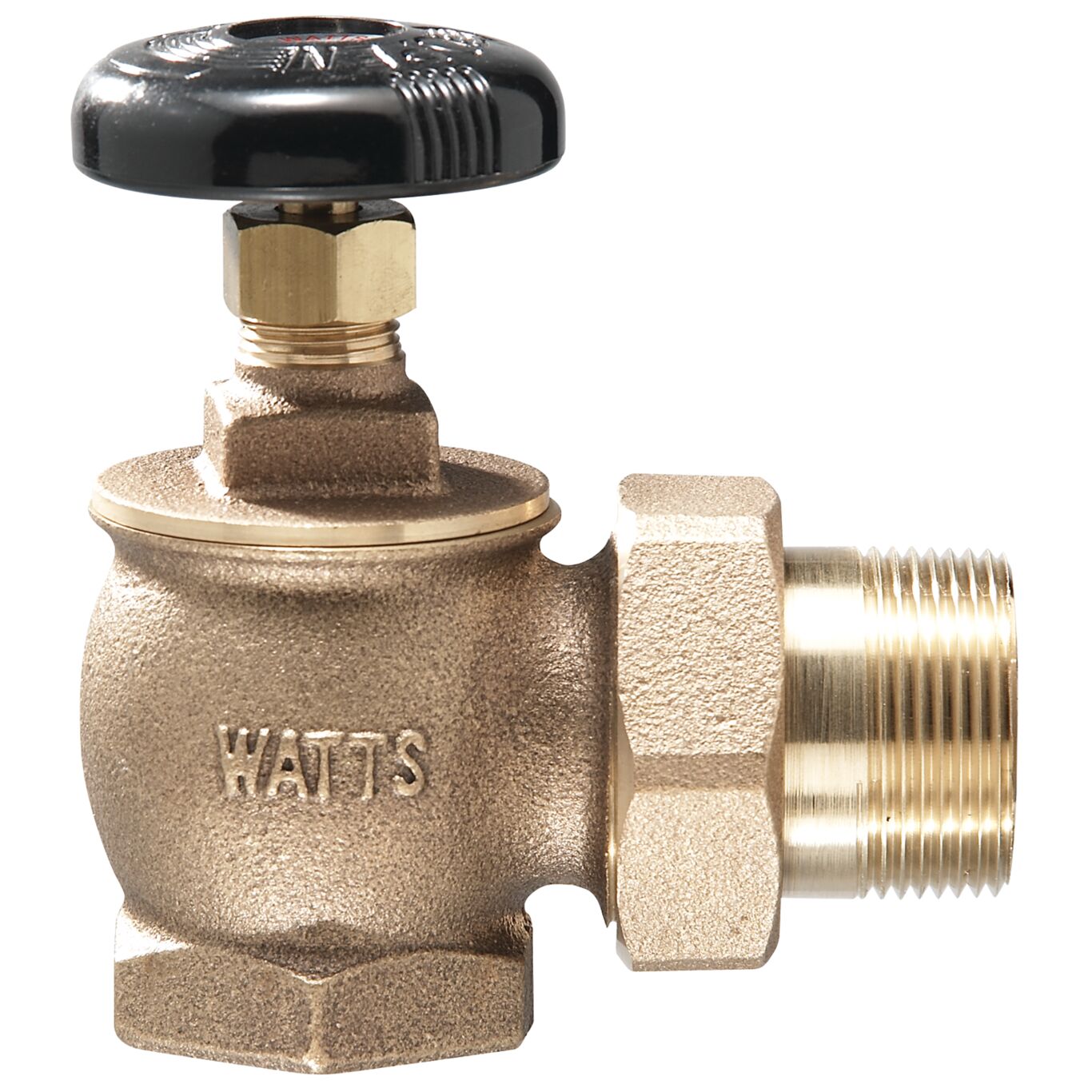

Series RA-1-AP Steam Radiator Valves are used as shutoff valves in steam or hydronic heating systems. They feature a bronze body and angle pattern with FIP x male union connections.. Maximum Working Pressure: 60psi (4.2 bar) non-shock water, 15psi (1 bar) non-shock saturated steam. Model RA-1-SW comes with straight pattern.
Features
- For use as shutoff valves in steam or hydronic heating systems
- Bronze body with FIP x male union connections
- Available in angle or straight pattern
- Sizes 1/2 in. to 2 in. (15 to 50mm)
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
