65
Discontinued
Radiator Supply Valves

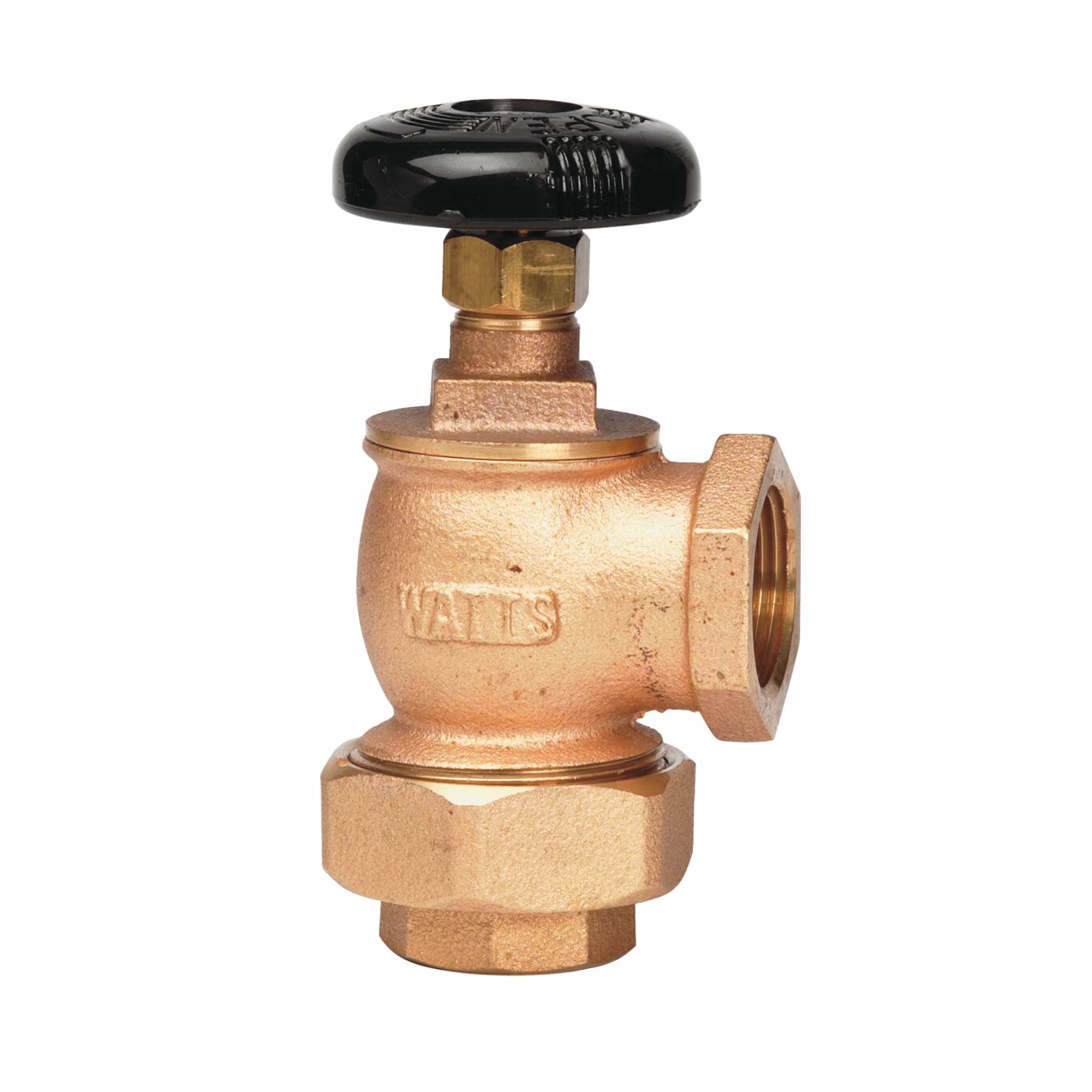

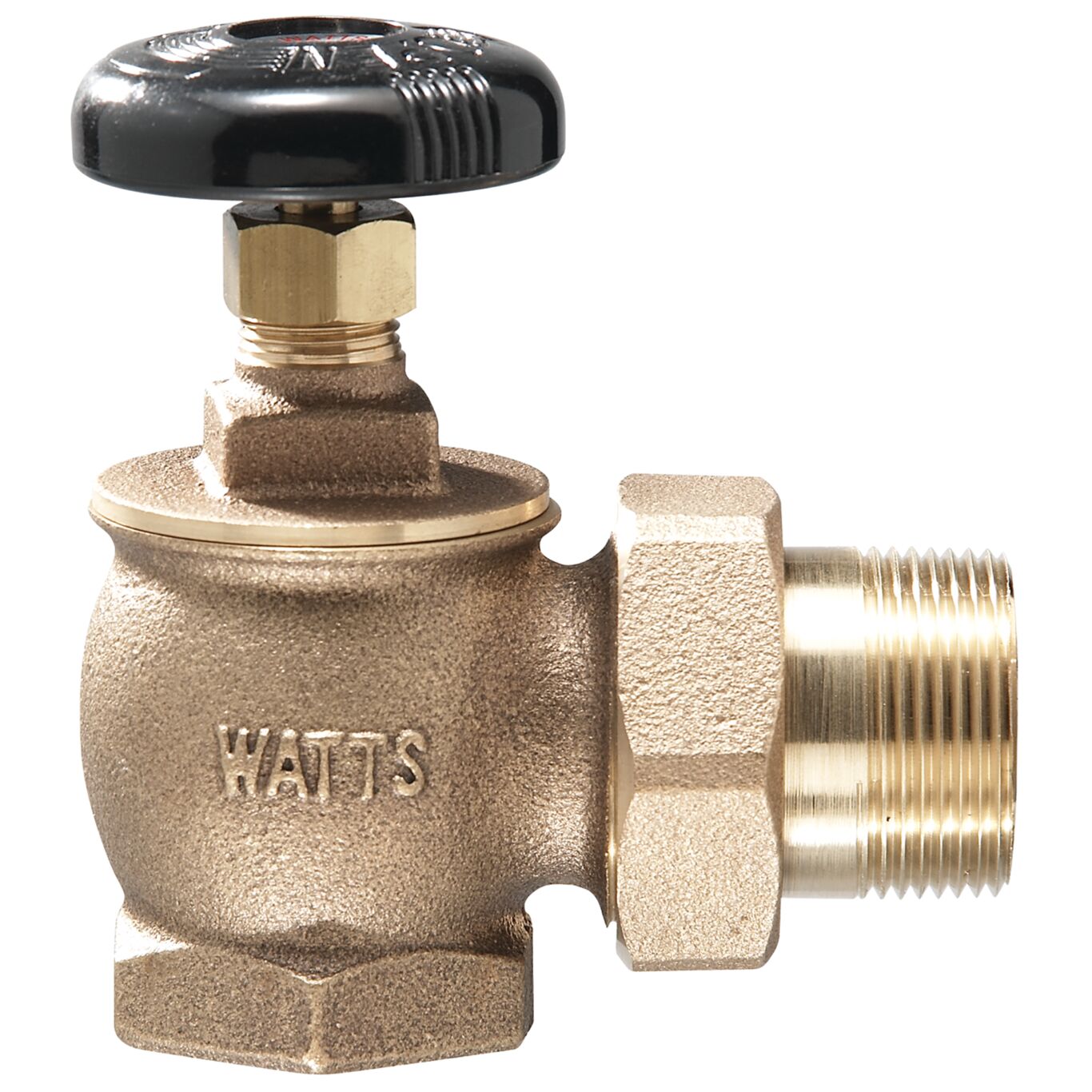

Series 65 Radiator Supply Valves are used as positive manual shutoffs in two-pipe steam or forced circulation hot/chilled water systems. They feature a brass body with threaded-male union connection, non-rising stem, heavy-duty packing spring and phenolic handle. Available in straightway pattern (SW-65) or angle pattern (AP-65). Steam Pressure Operating Range: 25 in. Hg. vacuum to 60psi (4.2 bar), Water Pressure Operating Range: 0 to 60psi (4.2 bar).
Features
- For positive manual shutoffs in two-pipe steam or forced circulation hot/chilled water systems
- Positive seal against steam or water
- Brass body with threaded-male union connection
- Available in straightway or angle pattern
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
