2000-M5 2 1/2
×
![]()
Part of the 2000-M5 Series
Ordering Code: 0856771
UPC: 098268300451

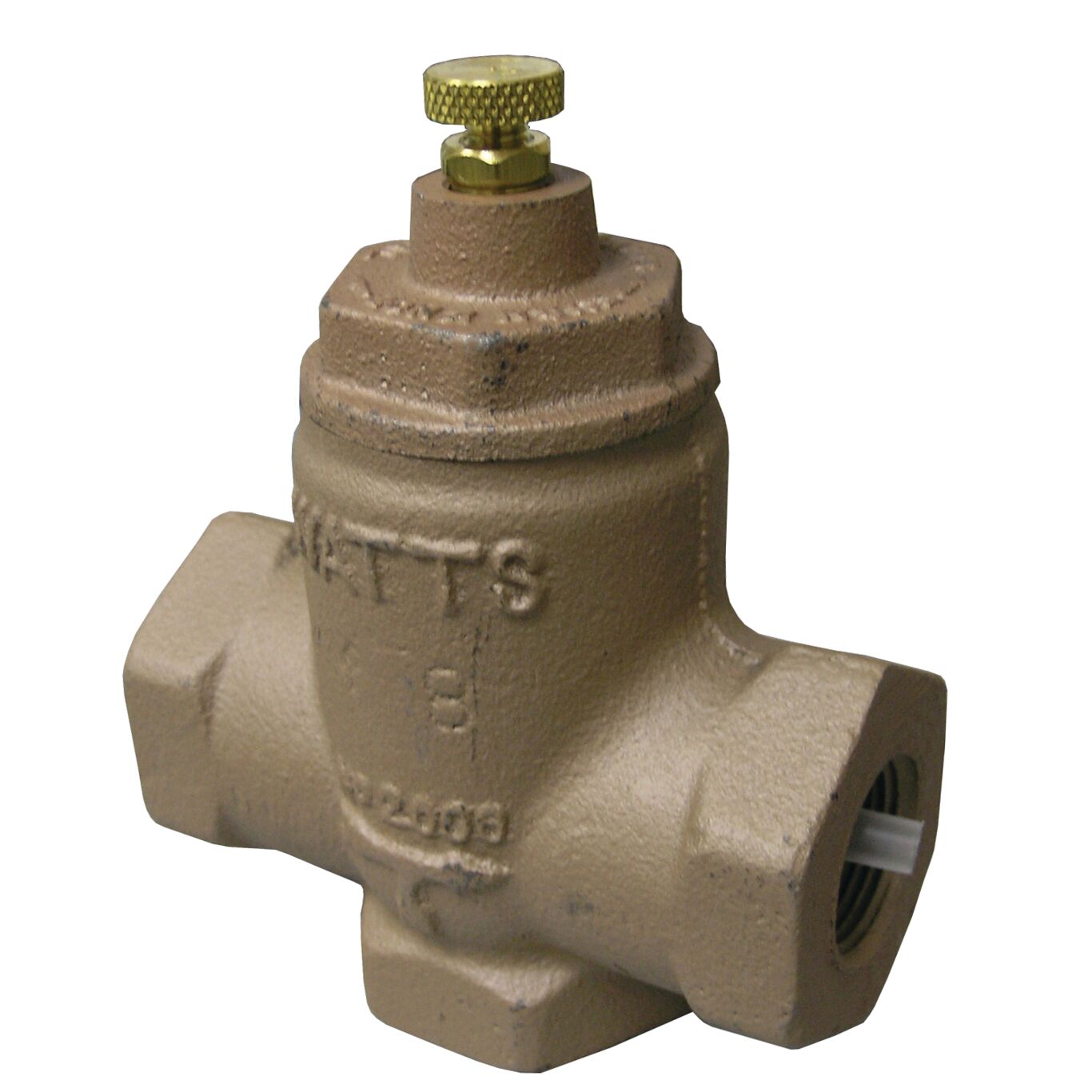

2 1/2 In Two-Way Universal Flow Check Valve, Iron Body, One Flanged Outlet x Two Female Threaded Connections
This two-way, universal flow check valve is for use in commercial and residential hydronic heating systems to provide positive shutoff when circulator is not running, preventing flow of water to radiation units. It is easily opened for gravity circulation. It combines angle and horizontal checks and consists of an iron body construction with female threaded connections, bronze seat, and brass center guide. Maximum pressure is 125 psi (8.6 bar).
- Provides positive gravity shutoff when circulator is not running
- Female threaded connections
- Iron body construction
| Specifications | |
|---|---|
| EANUCCCode | 098268300451 |
| MaximumOperatingTemperature-Celsius | 121.00 |
| MaximumOperatingTemperature-Fahrenheit | 250 |
| MaximumWorkingPressure-PSI | 125 |
| MinimumTemperature-Celsius | 5.00 |
| MinimumTemperature-Fahrenheit | 33 |
