IWTG-GAS
×
![]()
Air Test Assembly Gauges

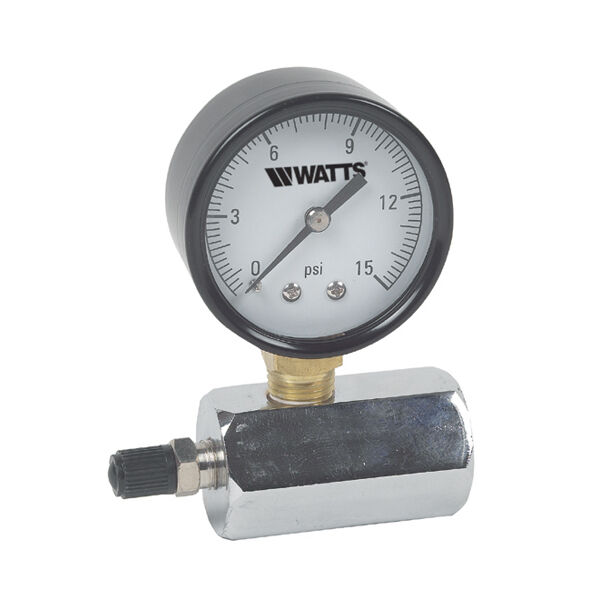

Series IWTG-Gas Air Test Assembly Gauges are used in commercial, residential, and institutional HVAC applications It consists of a 3/4 in. FPT chrome-plated brass manifold, steel case, Kostil Polymer window, 3/4 in. FPT x Schrader type air valve w/cap connection, and copper alloy Bourdon tube pressure element. Accuracy is ASME, Type B. Available in various pressure rating scales.
Features
- Available in various pressure rating scales to fit customer needs
- Gauge consists of ¾ in. FPT chrome-plated brass manifold with shutoff valve, and FPT x Shrader type air valve
- Designed for commercial, residential, and institutional HVAC applications
- Copper alloy Bourdon tube pressure element ensures accuracy of ASME, Type B
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
