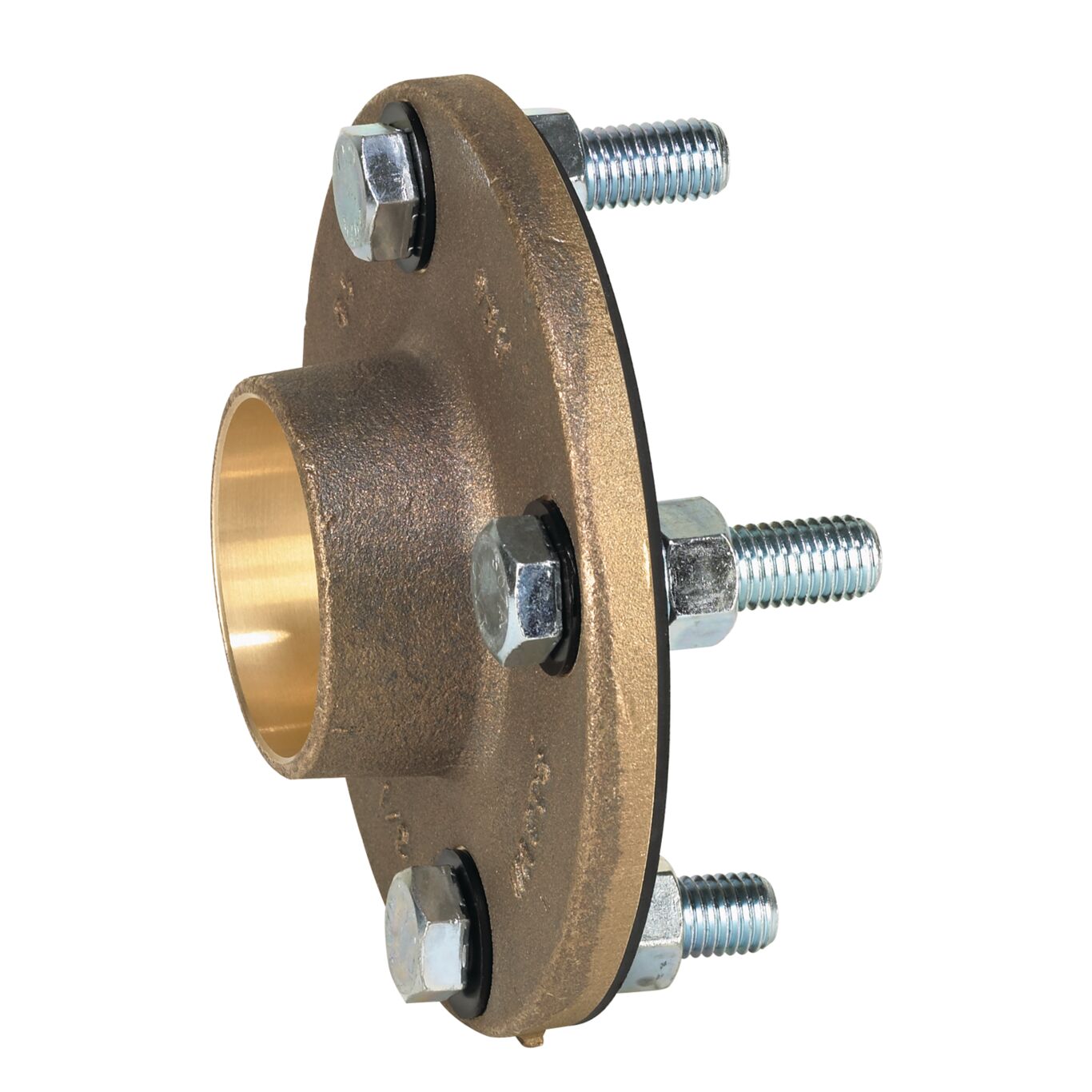

LF3110
Lead Free* Class 125 Dielectric Flanged Pipe Fittings
Series LF3110 Lead Free* Class 125 Dielectric Flanged Pipe Fittings are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a Lead Free* cast copper silicon alloy construction. It consists of a single flange fitting and a gasket. Series LF3110 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. Maximum Pressure: 175psi.
Features
- Solder flange of Lead Free* cast copper silicon alloy
- Designed and manufactured to the highest quality standards
- Rated to at 175psi (12.1 bar) and Bolt Pattern meets ANSI B16.24
- Consists of a flange, gasket, bolt insulators, nuts and bolts for installation
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
