U009M2-LF 3/4
Discontinued
Part of the U009 Series
Ordering Code: 0062289
UPC: 098268325324

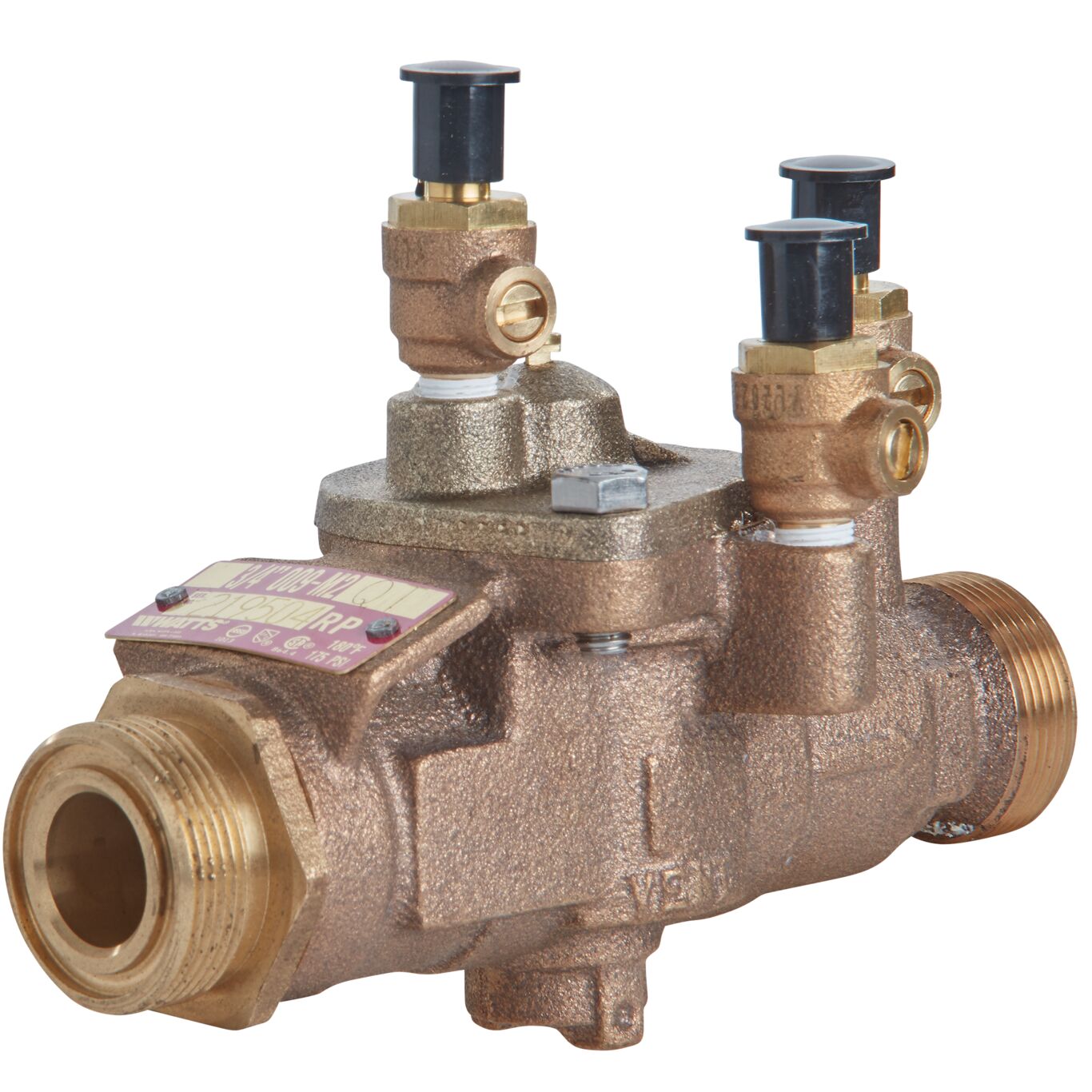

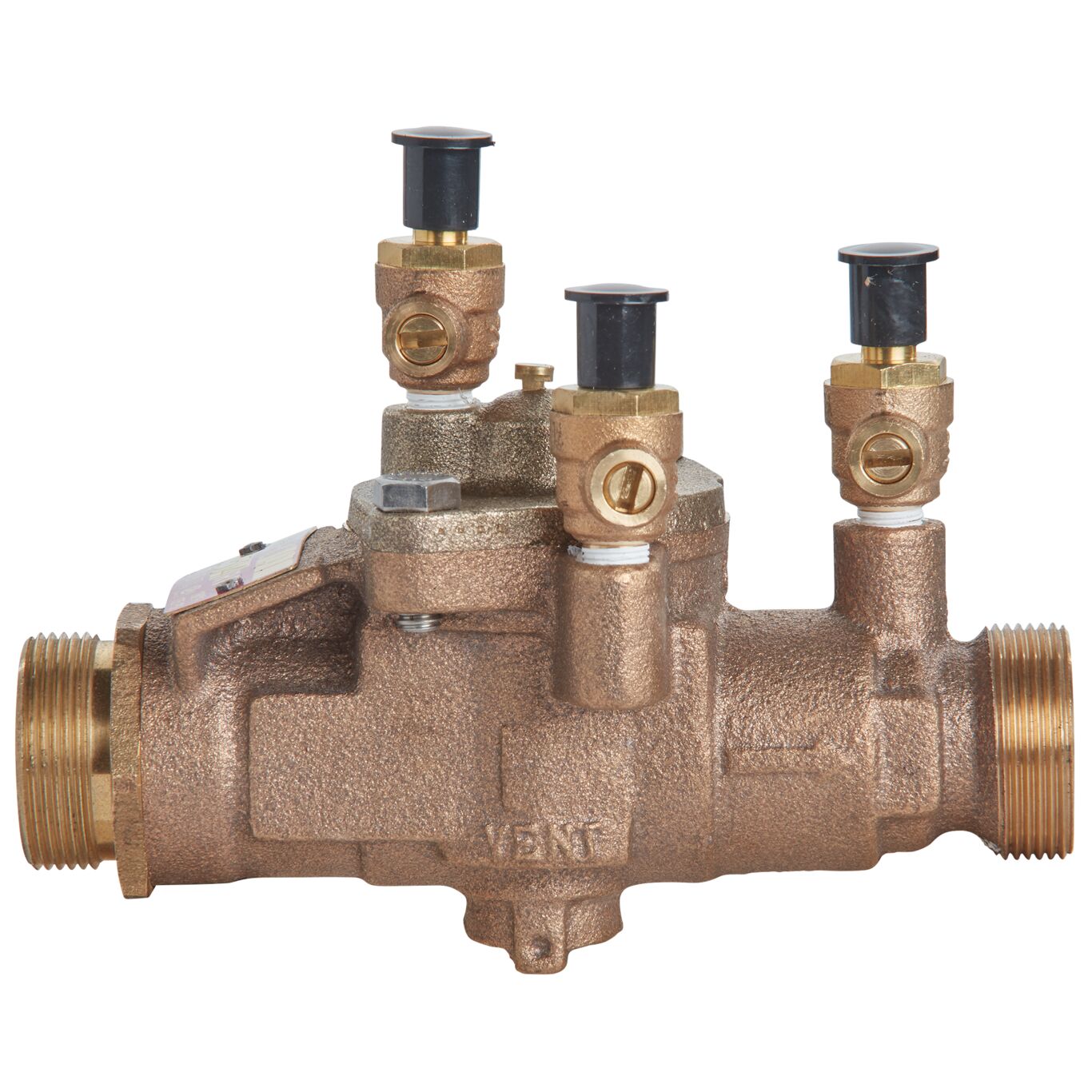

3/4 In Bronze Reduced Pressure Zone Backflow Preventer Assembly, No Shutoff Valves, Union Connections
This 3/4 inch reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body, union connections, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.
Specifications | |
---|---|
EANUCCCode | 098268325324 |
MaximumTemperature-Fahrenheit | 180 |
MaximumWorkingPressure-BAR | 12.00 |
MaximumWorkingPressure-PSI | 175 |
MinimumTemperature-Celsius | 0.50 |
MinimumTemperature-Fahrenheit | 33 |
TrademarkName-Primary | None |
