009

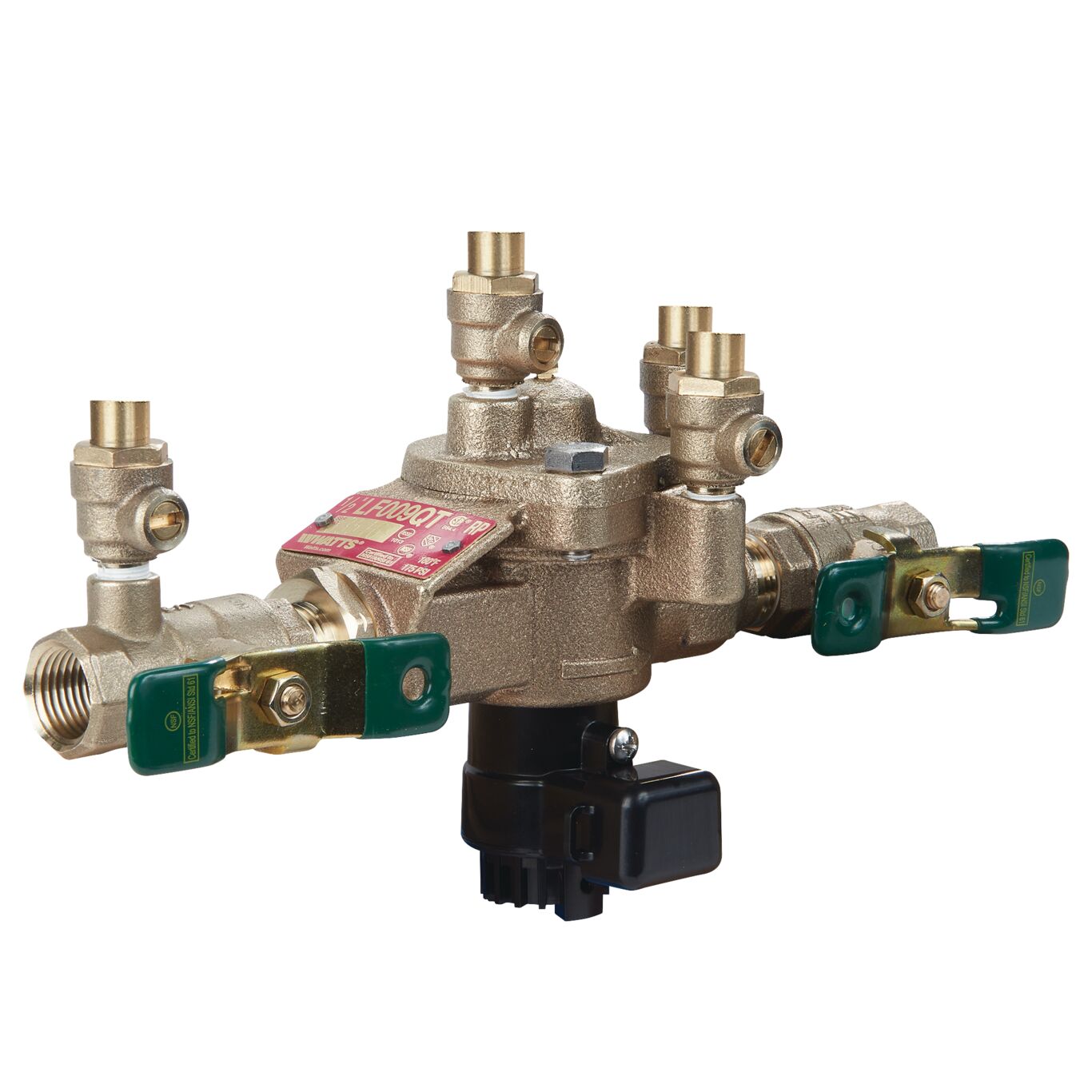

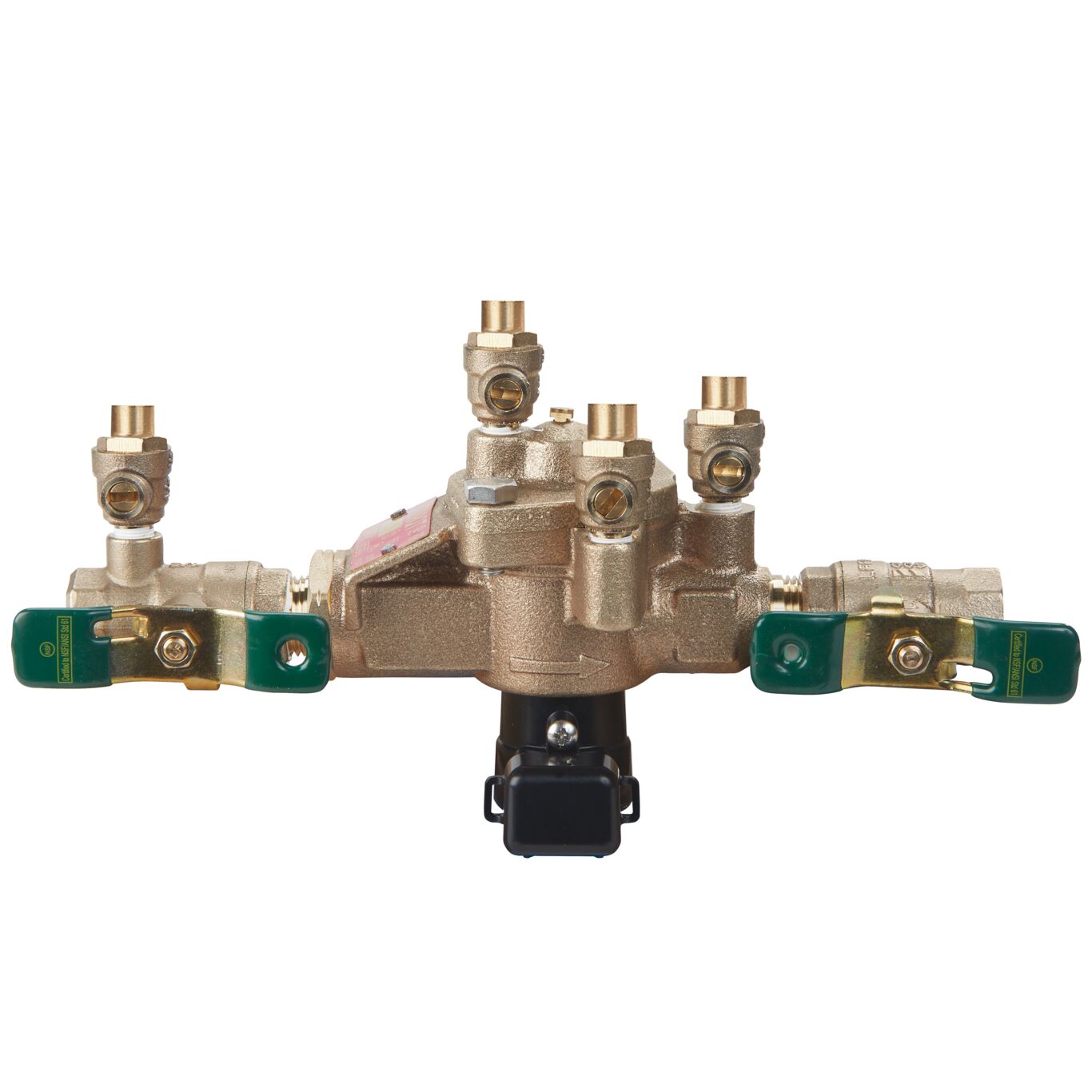

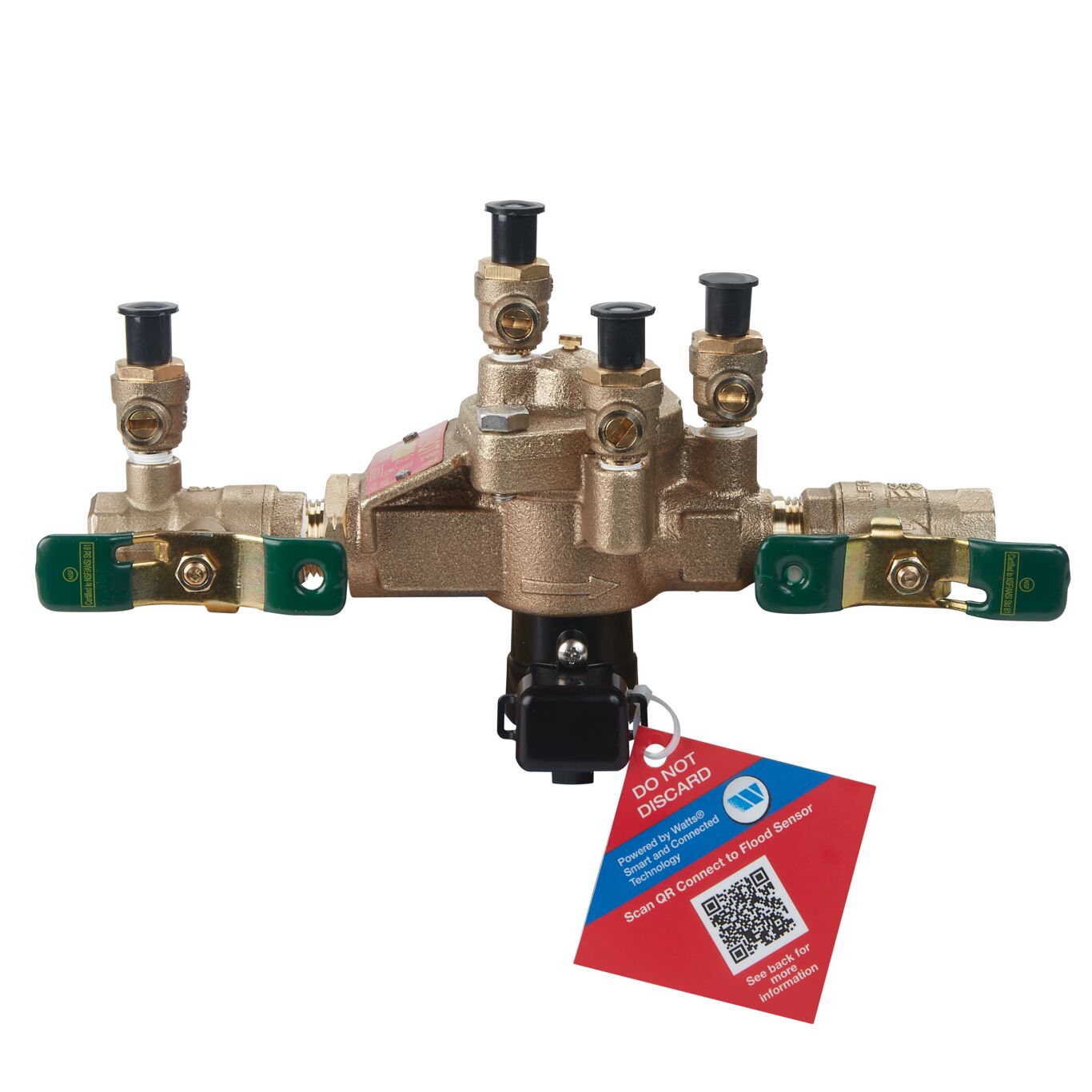

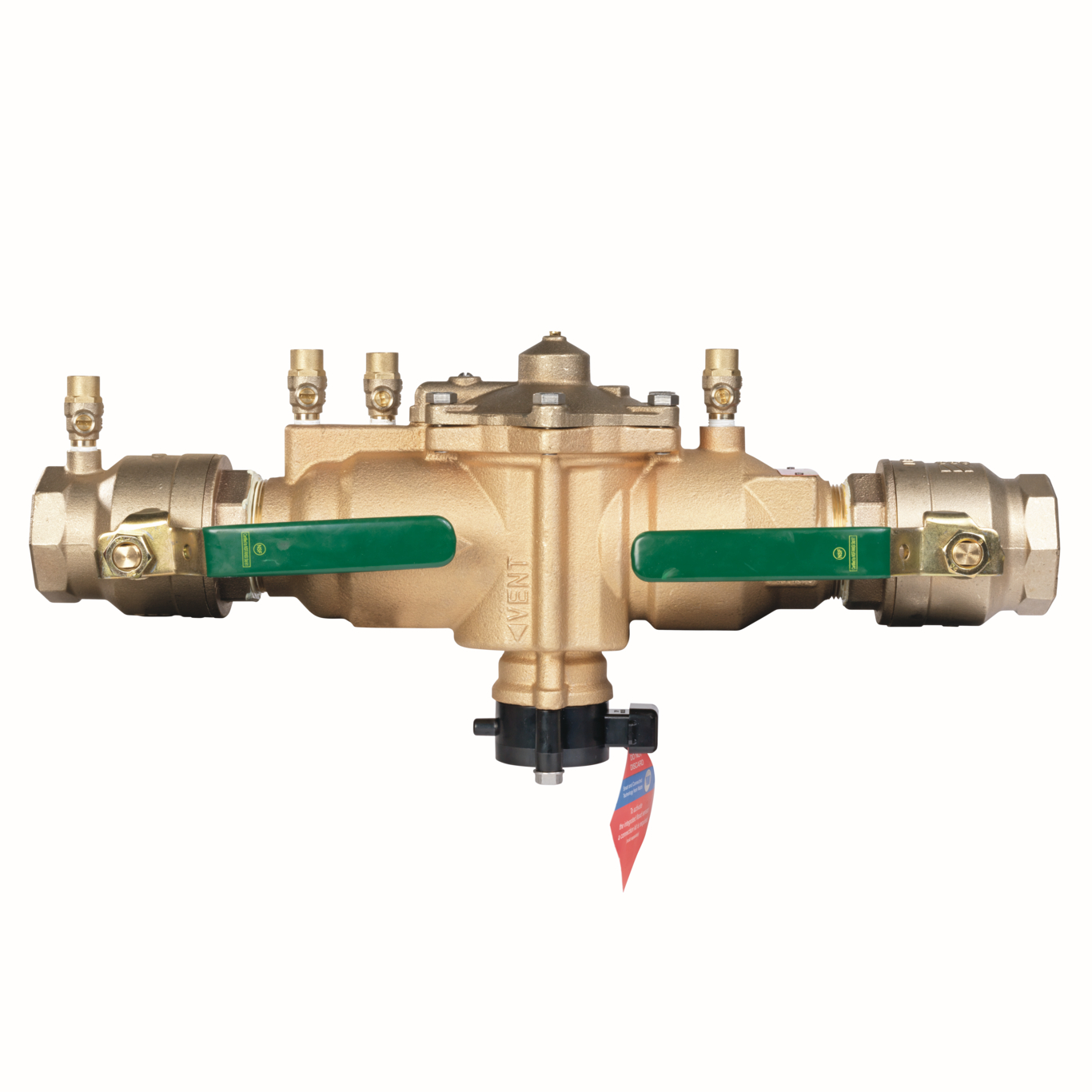

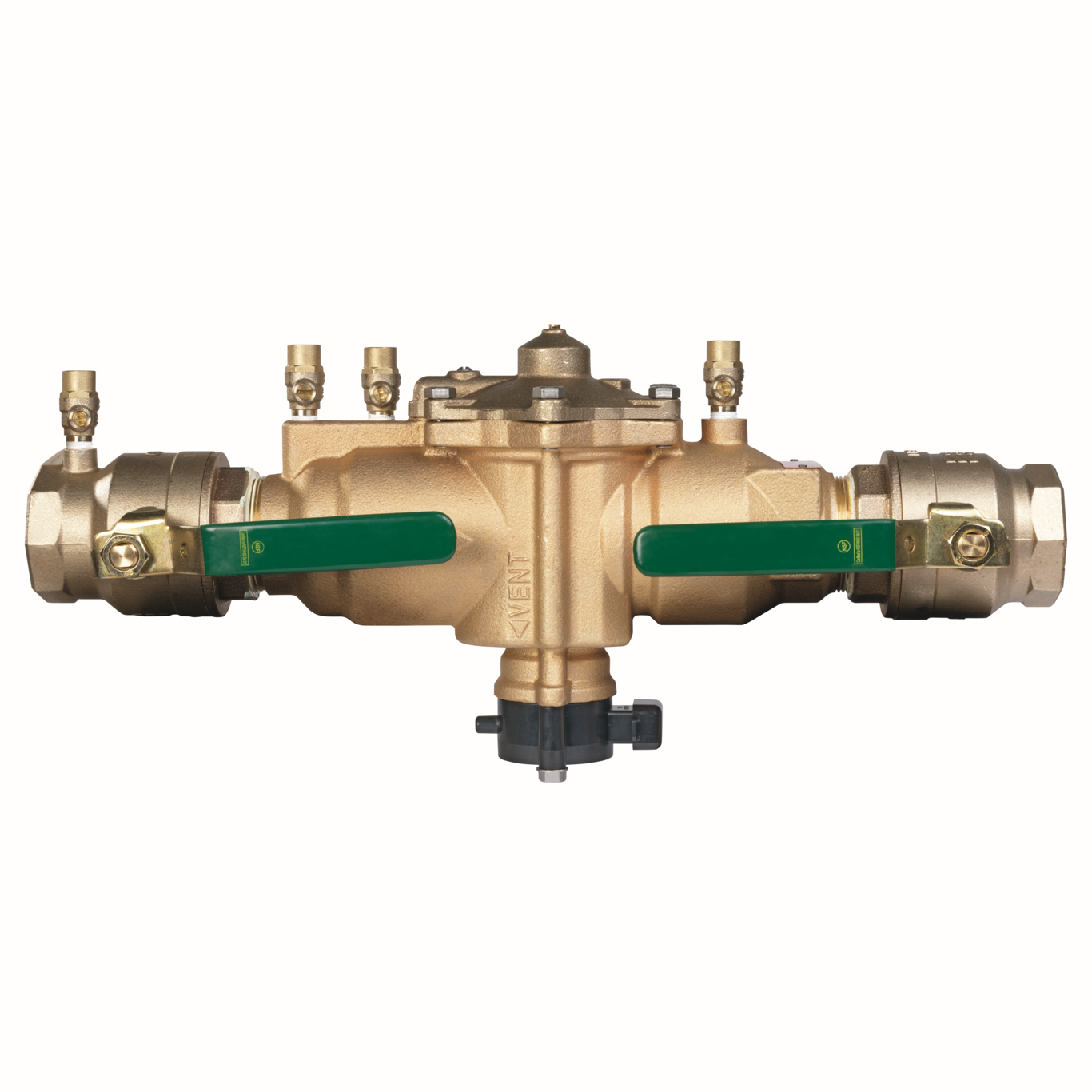

Reduced Pressure Zone Assembly Backflow Preventers, Bronze Body with Flood Sensor, Sizes 1/4 - 2 IN
Series 009 reduced pressure zone assemblies feature a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. Activated through an add-on connection kit, the sensor can trigger the alert system sending notification of flood detection to facility personnel. Connection kits are available for BMS and cellular communication.
This series prevents the reverse flow of contaminated water caused by backsiphonage or backpressure from entering the potable water supply. Ideal for protection at health hazard cross-connections or for containment at the service line entrance. Its compact modular design facilitates maintenance and assembly access. Series 009 have a bronze body construction (1/4 to 2 in.) or FDA approved epoxy coated cast iron (2 1/2 to 3 in.). Check with local water authorities for installation requirements.
To learn more visit: https://www.watts.ca/floodprotectionsystem
Features
- Sensor on relief valve for flood detection
- Flood alert feature available with add-on connection kit, compatible with BMS and cellular communication
- Compact, space-saving design
- Single cover, top-entry design allows for convenient access for maintenance
- Captured springs for safe maintenance
- Seats and seat discs are replaceable
Literature
-
- 009, LF009 1/4 to 1 IN - Repair Kits Parts Breakdown
- 009, LF009 1-1/4 to 2 IN - Repair Kits Parts Breakdown
- Brochure - Backflow Prevention and Flow Control Plumbing
- Flyer - Flood Detection for RPZ/RPDA Backflow Preventers with Flood Sensor
- Flyer - Flood Detection for RPZ/RPDA Backflow Preventers with Flood Sensor (French)
- Installation Instructions - 009, LF009, LFU009, SS009, U009
- Installation Instructions - BMS Sensor Connection Kit - 009, LF009, LFU009, SS009, U009, LF909 Small
- Installation Instructions - Cellular Sensor Connection Kit - 009, LF009, LFU009, SS009, U009, LF909 Small
- Installation Instructions - Custom Flood Sensor Settings
- Relief Valve Discharge Rates - 009, 909, 919, 957, 994
- Specification Sheet - 009
- Specification Sheet - Flood Sensor Connection Kit - Watts
- Specification Sheet - Flood Sensor Connection Kit - Watts (French)
- Specification Sheet - Flood Sensor Connection Kit - Watts (Spanish)
- Specification Sheet - Watts Air Gaps, Elbows and Test Cocks
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
