SR 709DCDA-OSY-CFM 8
Part of the 709DCDA Series
Ordering Code: 0385759
UPC: 098268793086

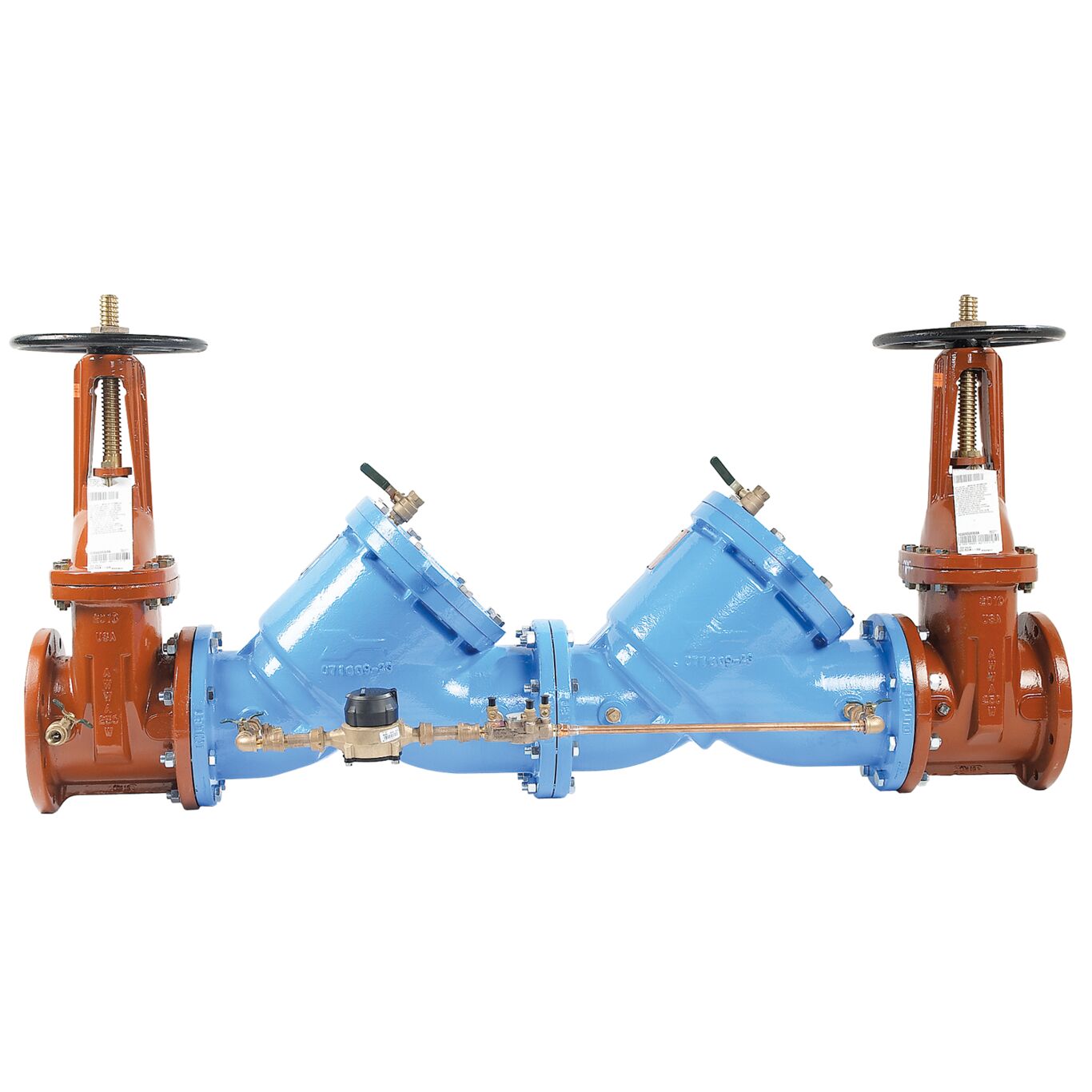

8 In Cast Iron Double Check Detector Assembly Backflow Preventer, OSY Shutoffs, Silicon Rubber Check Discs, Cubic Feet Meter, ArmorTek Coating
This 8 IN double check detector backflow preventer assembly prevents backflow of non-health hazard fire protection system substances from being pumped or siphoned into the potable water supply. It incorporates a cubic foot meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. It consists of a fused epoxy coated cast iron body using ArmorTek(TM) coating technology for advanced corrosion resistance construction. Its modular check design facilitate simple and easy installation and maintenance. It has outside stem and yoke shutoffs, and silicone rubber check components. The coating on this backflow assembly uses ArmorTek technology to resist corrosion due to microbial induced corrosion (MIC) or exposed metal substrate. Maximum working pressure is 175 psi (12.06 bar).
- Utilizes advanced ArmorTek coating technology to resist corrosion of internals
- The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
- Modular check assemblies
- Detector bypass
- Outside stem and yoke shutoffs
| Specifications | |
|---|---|
| ArmorTekTechnology | Yes |
| BodyFinish | Epoxy Coated Using ArmorTek Technology |
| BuyAmericanAct | NO |
| EANUCCCode | 098268793086 |
| MaximumTemperature-Fahrenheit | 110 |
| MaximumWorkingPressure-BAR | 12.10 |
| MaximumWorkingPressure-PSI | 175 |
| MinimumTemperature-Celsius | 0.50 |
| MinimumTemperature-Fahrenheit | 33 |
| TrademarkName-Primary | None |
