007M1DCDA
Residential/Commercial Fire Sprinkler Systems Double Check Detector Assembly Backflow Preventers with Freeze Sensor

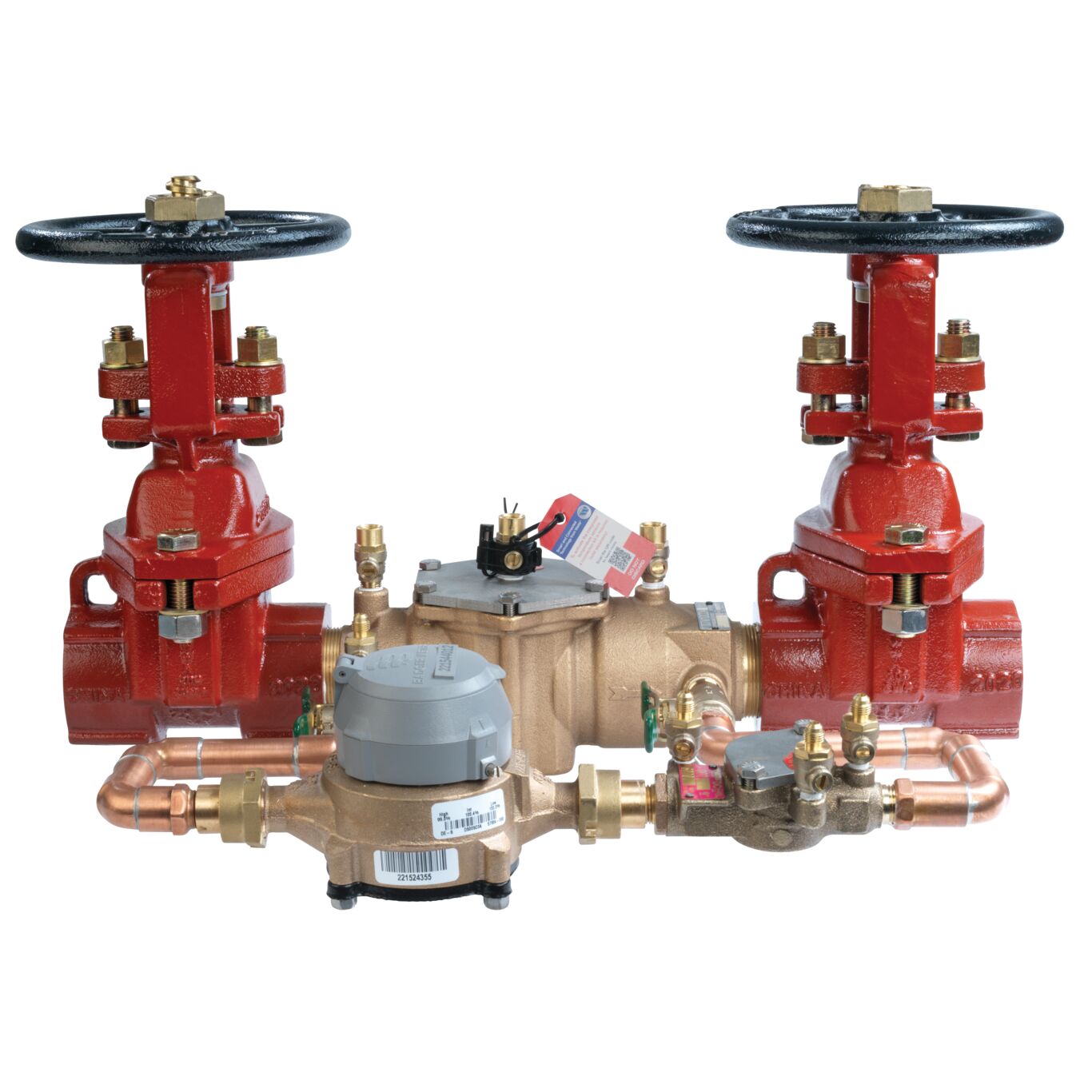

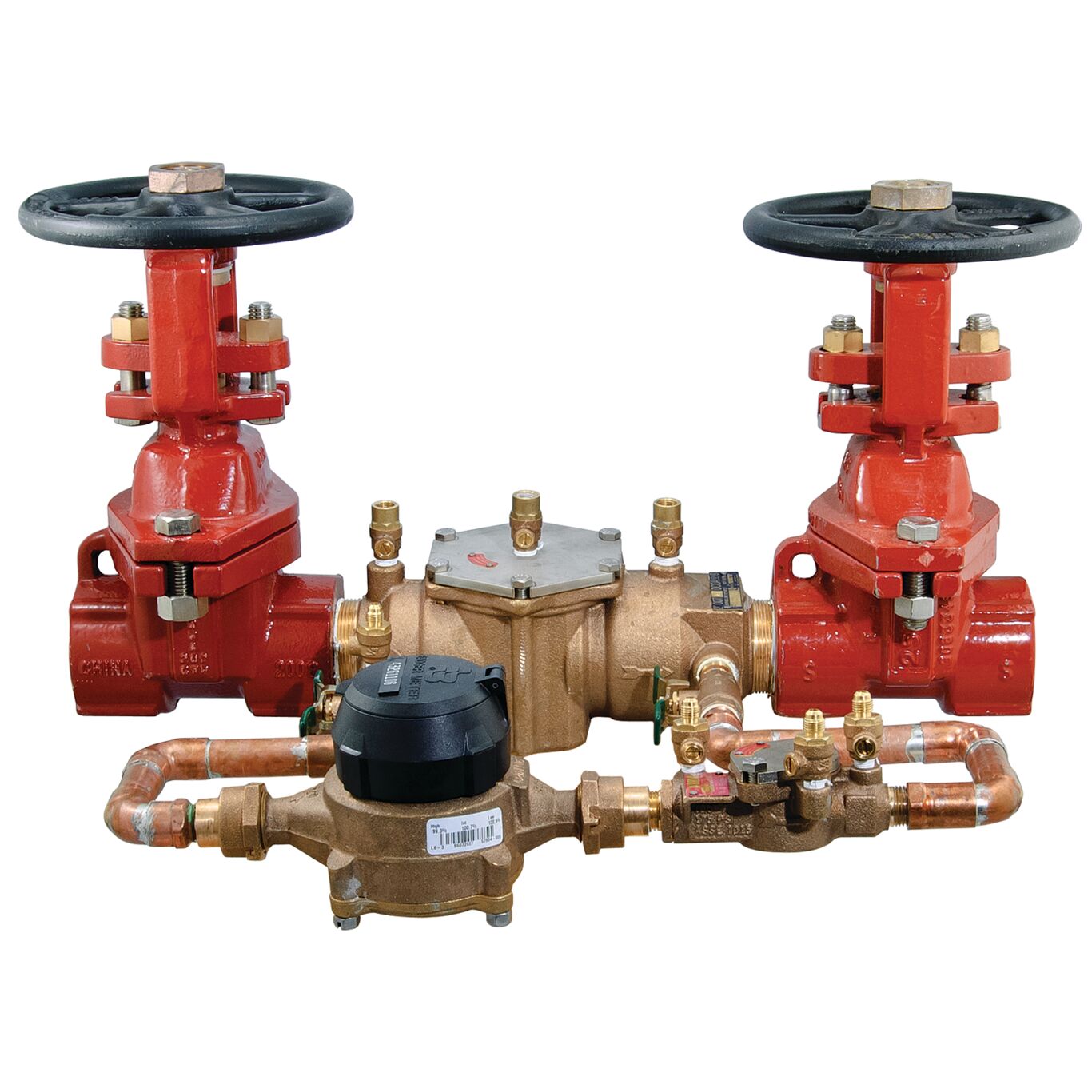

Series 007M1DCDA double check detector assembly backflow preventers include a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS).
The series is designed to prevent backpressure and backsiphonage conditions for non-health hazard application in accordance with local governing water utility code. Used primarily on commercial fire sprinkler systems where local governing code mandates protection from non-potable quality water being pumped or siphoned back into the potable water system. Maximum Working Pressure: 175 psi (12.06 bar).
To learn more visit: https://www.watts.ca/freeze-detection
Features
- Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
- Compact design for easy installation in tight places
- Single cover, top-entry design for convenient access for maintenance
- Auxiliary bypass line to detect costly underground water leaks or illegal taps
- Replaceable seats, seat discs, and auxiliary line and components
- Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS)
Literature
-
- Flyer - Freeze Detection for Backflow Protection
- Installation Instructions - 007DCDA, 007M1DCDA
- Installation Instructions - Freeze Sensor Connection Kit - Watts and FEBCO
- Specification Sheet - 007M1DCDA
- Specification Sheet - 007M1DCDA (French)
- Specification Sheet - 007M1DCDA (Spanish)
- Specification Sheet - Freeze Sensor Connection Kit
- Specification Sheet - Freeze Sensor Connection Kit (French)
- Specification Sheet - Freeze Sensor Connection Kit (Spanish)
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
