LF951GD
Ductile Iron Rate-of-Flow Control Valve with Pressure Reducing Feature

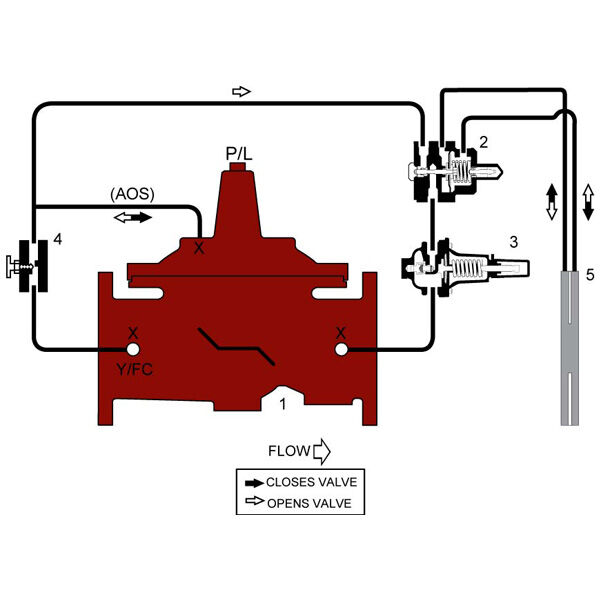

LF951GD (Globe) and LF951AD (Angle) Series is designed to automatically limit flow rate to a constant, adjustable maximum by sensing differential pressure across a remote mounted orifice plate (field installed), and reduce a fluctuating higher upstream pressure to a constant lower downstream pressure. The Orifice Plate is factory calibrated based upon minimum, maximum, and continuous flow rate requirements.
Features
- Automatically limits flow rate to a constant, adjustable maximum
- Throttles to reduce high upstream pressure to constant lower
- Orifice Plate Assembly is remote mounted (field installed)
- Rate-of-flow and Reducing setpoints are separately adjustable
