986GD
Ductile Iron Single Chamber Pump Control Valve

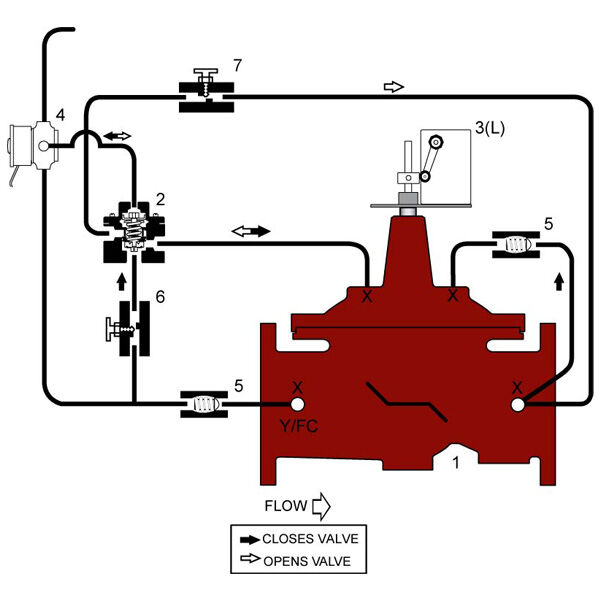

986GD (Globe) and 986AD (Angle)Series is designed to minimize the surges associated with the starting and stopping of pumps. The valve opens at an adjustable rate upon pump start-up, and closes at an adjustable rate upon pump shut-off. When the valve is near closed a limit switch is tripped, turning the pump off. The pump starts and stops against a closed valve. The Solenoid Pilot has provisions for manual operation in the event of power outage.
Features
- Minimizes the surges associated with the starting and stopping of pumps
- Valve opens at an adjustable rate upon pump start-up and closes at an adjustable rate upon pump shut-off
- Hydraulic Check Feature prevents flow reversal
- The Solenoid is equipped with manual operator
