910GS-48
Stainless Steel Pressure Reducing Control Valve with Low Flow By-Pass Feature

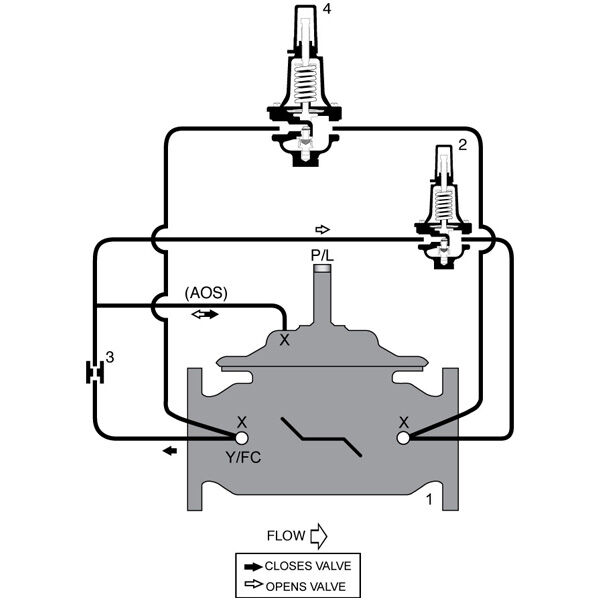

910GS-48 (Globe) and 910AS-48 (Angle) Series are designed to automatically reduce a fluctuating higher upstream pressure to a constant lower downstream pressure regardless of varying flow rates. Flow requirements below the range of the main line pressure reducing valve are handled by a separate, valve mounted, direct acting, low flow by-pass pressure reducing valve.
Features
- Reduces a fluctuating higher upstream pressure to a constant lower downstream pressure
- Flow requirements below the range of the main line are handled by a separate, valve mounted, direct acting, low flow by-pass pressure reducing valve
- Reducing and low flow by-pass setpoints are separately adjustable
- Lightweight Stainless Steel construction reduces corrosion, diaphragm wear, and labor frequency and costs
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
