905GD
×
![]()
Single Chamber - Full Port

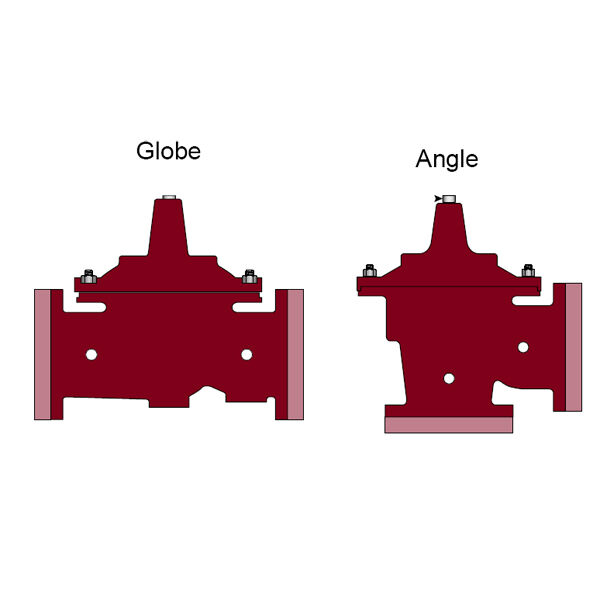

Series 905GD (Globe) and 905AD (Angle) are Ductile Iron, full port, single chamber basic valves that incorporate a one-piece disc and diaphragm assembly. This assembly is the only moving part within the valve, allowing it to open, close, or modulate as commanded by the pilot control system.
Features
- One-piece disc and diaphragm assembly opens, closes, or modulates as commanded by the pilot control system
- Lead free ductile iron body and cover with stainless steel trim
- Lined and coated with fusion bonded epoxy
- Sizes 1 1/4 in. to 16 in. (32mm to 400mm)
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
