900GS
Stainless Steel Dual Chamber - Full Port

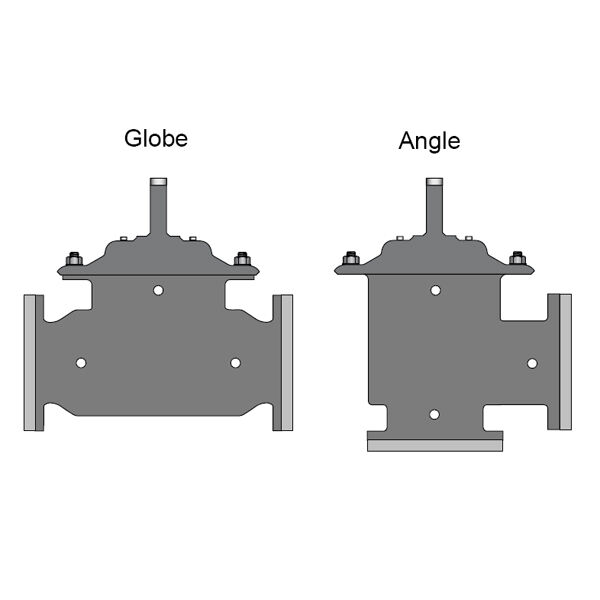

900GS (Globe) and 900AS (Angle) Series are Stainless Steel, full port, dual chamber basic valves that incorporate a one-piece disc and diaphragm assembly. When pressure is applied to the upper diaphragm chamber and released from the lower diaphragm chamber, the valve travels to a closed position. When pressure is applied to the lower diaphragm chamber and released from the upper diaphragm chamber the valve travels to a full open position. When pressure is balanced between the upper and lower diaphragm chambers, the valve will hold an intermediate position until commanded to modulate open or closed by the pilot control system. Stainless Steel construction provides superior corrosion resistance, a lightweight alternative to conventional heavy iron valves, extended diaphragm life, and reduced frequency and labor costs associated with traditional maintenance repairs.
Features
- Valve opens and closes as commanded by the pilot control system
- One-piece disc and diaphragm assembly is the only moving part within the valve
- When pressure is balanced, the valve will hold an intermediate position until commanded to modulate open
- Lightweight Stainless Steel construction reduces corrosion, diaphragm wear, and labor frequency and costs
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
