605GD
×
![]()
Single Chamber - Reduced Port

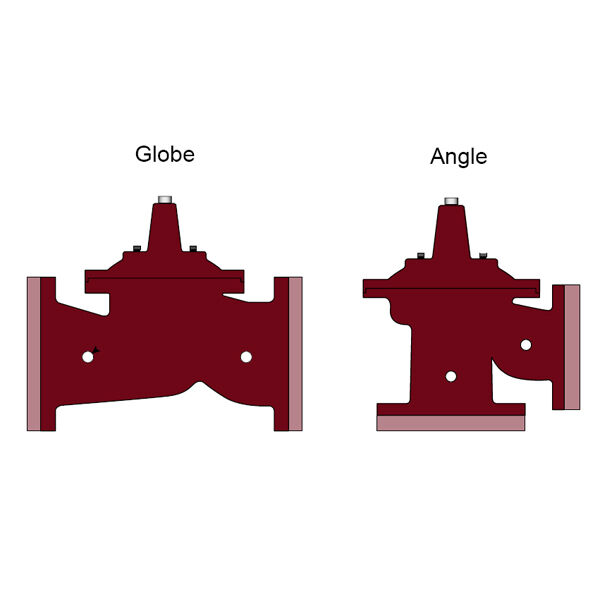

Series 605GD (Globe) and 605AD (Angle) are Ductile Iron, reduced port, single chamber basic valves that incorporate a one-piece disc and diaphragm assembly. This assembly is the only moving part within the valve, allowing it to open, close, or modulate as commanded by the pilot control system. The reduced port design offers improved low-flow performance and cavitation resistance.
Features
- One-piece disc and diaphragm assembly opens, closes, or modulates as commanded by the pilot control system
- Reduced port design offers improved low-flow performance and cavitation resistance
- Lead free ductile iron body and cover with stainless steel trim
- Sizes 3 in. to 24 in. (75mm to 600mm)
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
