600GS-16
Stainless Steel Dual Chamber - Reduced Port with Mechanical Check Feature

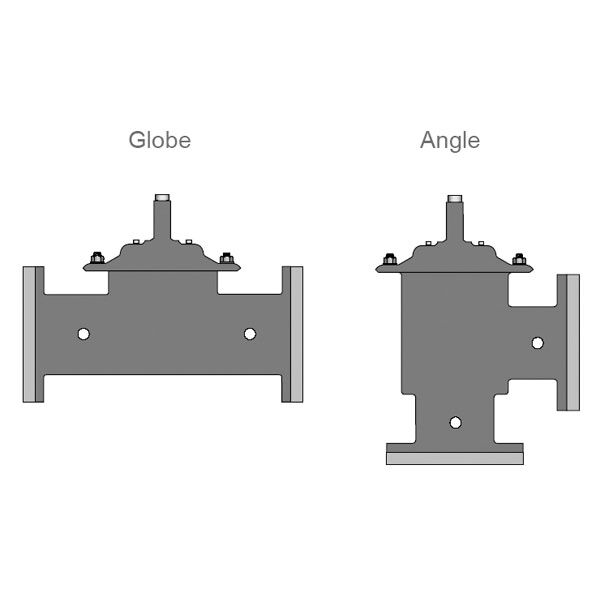

600GS-16 (Globe) and 600AS-16 (Angle) Series are Stainless Steel, reduced port, dual chamber basic valves that incorporate a two-piece telescoping disc and diaphragm assembly. When pressure is applied to the upper diaphragm chamber and released from the lower diaphragm chamber, the valve travels to a closed position. When pressure is applied to the lower diaphragm chamber and released from the upper diaphragm chamber the valve travels to a full open position. The lower portion of this two-piece assembly is a mechanical check feature, which acts independent of diaphragm position or pilot control system, and provides immediate check action when flow ceases. The reduced port design offers improved low-flow performance and cavitation resistance. Stainless Steel construction provides superior corrosion resistance, a lightweight alternative to conventional heavy iron valves, extended diaphragm life, and reduced frequency and labor costs associated with traditional maintenance repairs.
Features
- Valve opens, closes, or modulates as commanded by the pilot control system
- Mechanical check feature provides immediate check action when flow ceases
- Reduced port design offers improved low-flow performance and cavitation resistance
- Lightweight Stainless Steel construction reduces corrosion, diaphragm wear, and labor frequency and costs
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
