S113-32
Solenoid (On-Off) with Hydraulic Check for 6 & larger
Series S113-32, S1113-32 Solenoid Control Valve with High Capacity Pilot System and Hydraulic Check Feature is designed to open fully or close drip-tight as commanded by a 3-Way Solenoid Pilot, and close drip-tight when downstream pressure becomes greater than upstream pressure. The solenoid may be activated by a pressure switch, level probe, or any other electrical on-off device. The valve also has provisions for manual operation in the event of power outage. Engaging the Solenoid Manual operator simulates power to the solenoid, manually controlling the main valve. Disengaging the Solenoid Manual operator returns the valve to electrical on-off service.
Features
- Opens or closes as commanded by a 3-Way Solenoid Pilot
- Solenoid may be activated by a pressure switch, level probe, or other electrical on-off device
- Lightweight Stainless Steel construction offers superior corrosion resistance for longer life
- For 6″ and larger
Literature
-

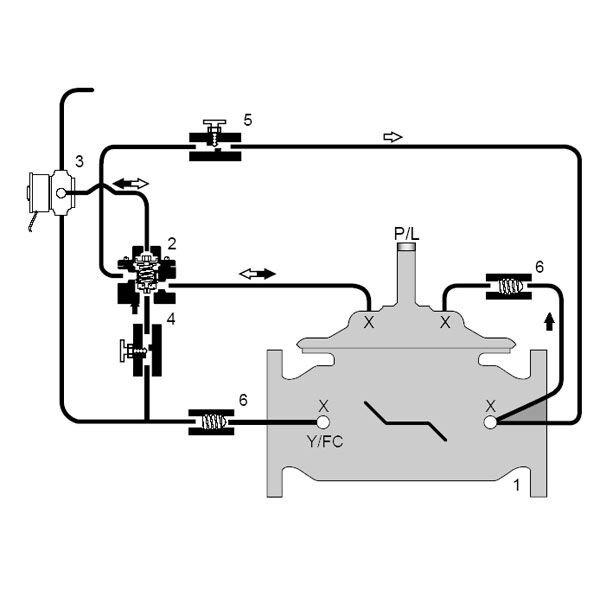

- Schematic - Automatic Control Valve S113-32
- Specification Sheet - Automatic Control Valve ACV Ball Valves
- Specification Sheet - Automatic Control Valve ACV Ball Valves (Spanish)
- Specification Sheet - Automatic Control Valve S3W 3-way solenoids
- Specification Sheet - Automatic Control Valve Single Chamber - Full Port
- Specification Sheet - Automatic Control Valve SS60 Flo-Clean Strainer
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
