LFM114-8
Rate-of-Flow Control Valve with Pressure Sustaining

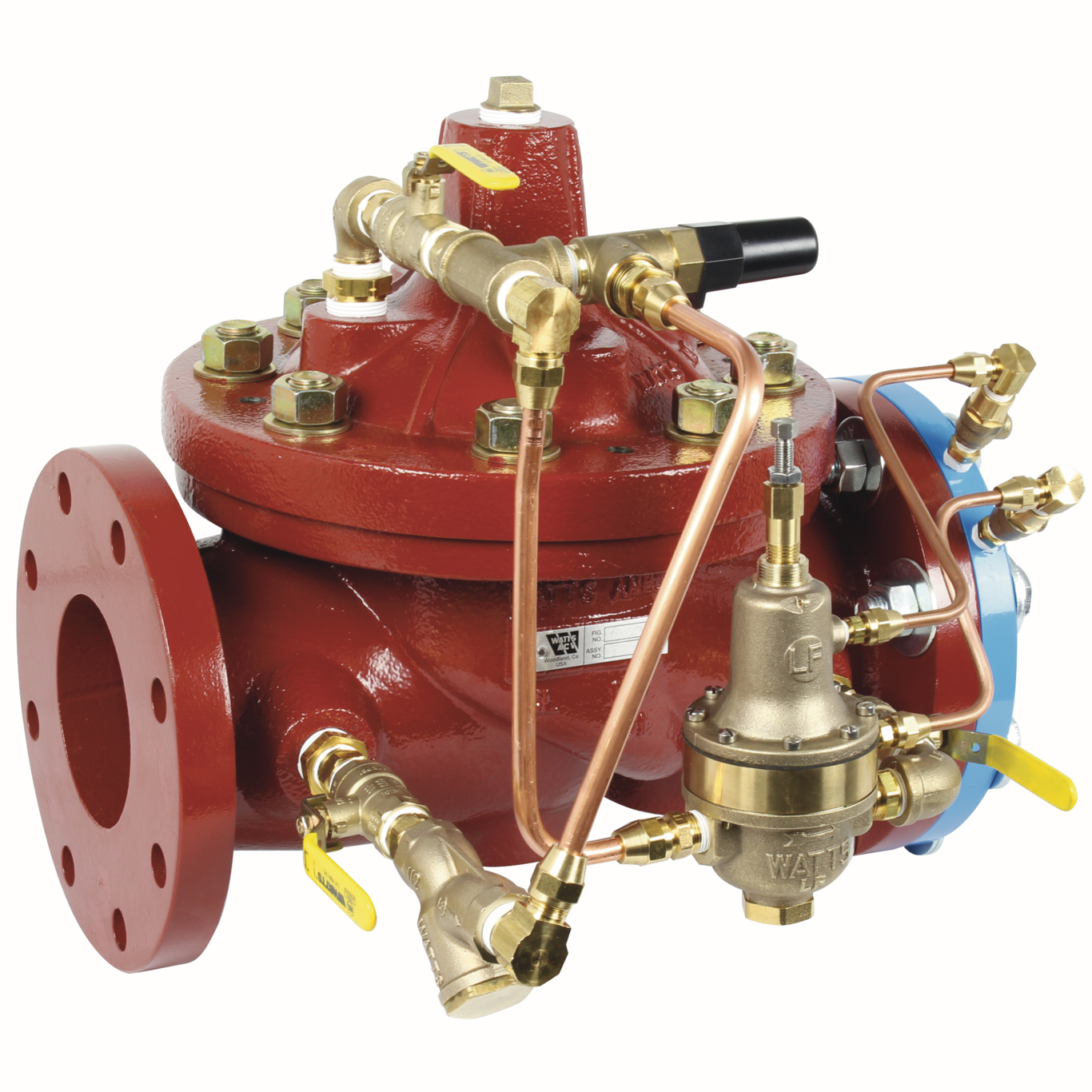

Series LFM114-8, LFM1114-8 Rate of Flow Control Valve with Pressure Sustaining Feature is designed to automatically limit flow rate to a constant, adjustable, maximum, and sustain a minimum upstream pressure. Flow control throttling action is controlled by an externally mounted modulating Flow Control Pilot, which senses differential pressure across a remote mounted orifice plate (field installed). Pressure sustaining throttling action is controlled by a separate Pressure Sustaining Control Pilot, which senses upstream pressure. The Orifice Plate is factory calibrated based upon minimum, maximum, and continuous flow rate requirements.
Features
- Automatically limits flow rate to an adjustable maximum and sustains a minimum upstream pressure
- Flow is controlled by an externally mounted modulating Flow Control Pilot
- Pressure sustaining is controlled by a separate Pressure Sustaining Control Pilot
- Orifice Plate is factory calibrated to meet flow rate requirements
