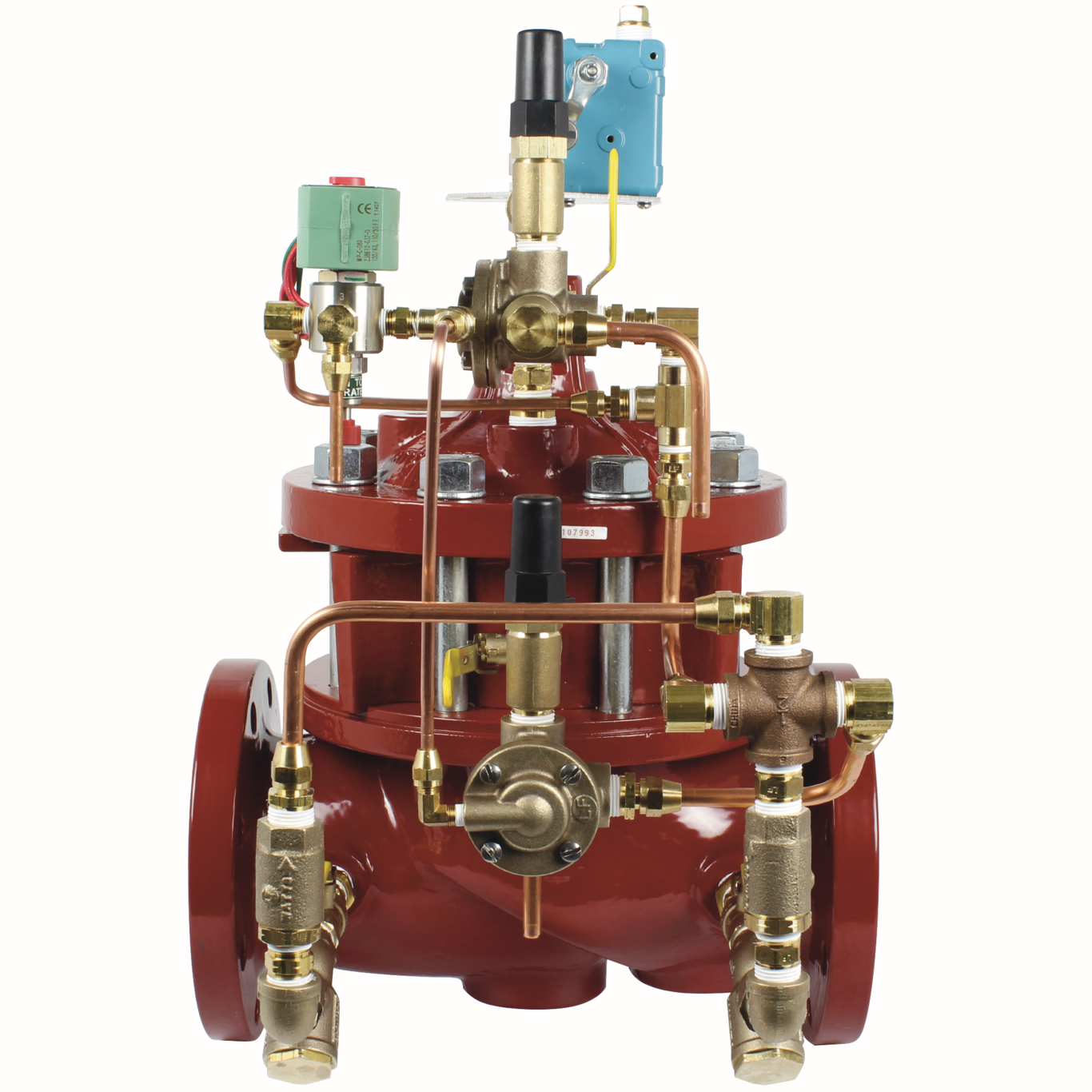

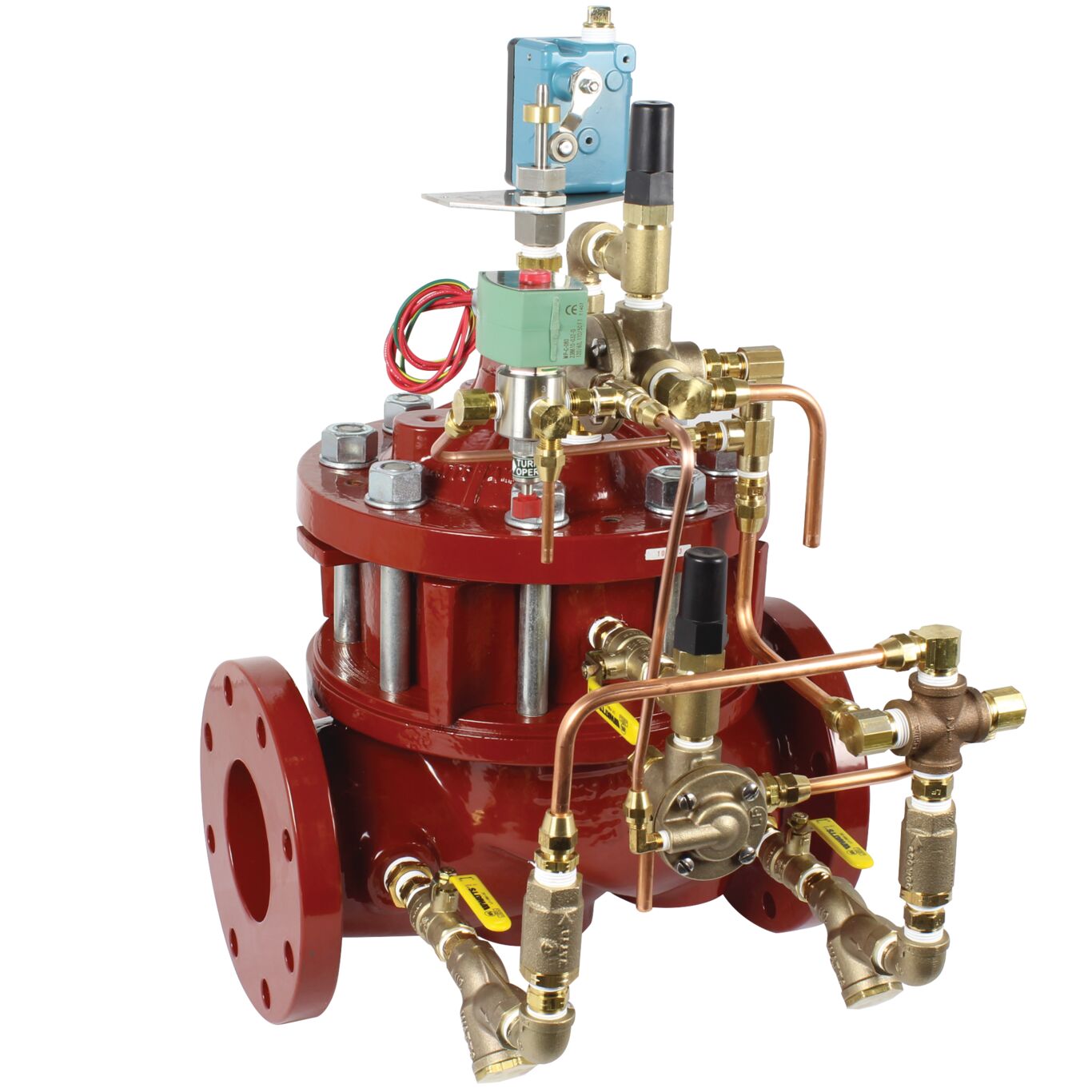

LFM513-AK
Dual Chamber Well Pump Control Valve with Mechanical Check
Series LFM513-AK, LFM1513-AK Pump Control Valve is designed to minimize the surges associated with the starting and stopping of pumps. The valve opens at an adjustable rate upon pump start-up, and closes at an adjustable rate upon pump shut-off. When the valve is near closed a limit switch is tripped, turning the pump off. The pump starts and stops against a closed valve, and has provisions for manual operation in the event of power outages. The valve also incorporates a two-piece telescoping stem design, which acts as a mechanical check feature, that closes preventing reverse flow the moment flow ceases.
Features
- Minimizes surges associated with the starting and stopping of pumps
- Mechanical check feature provides immediate check action when flow ceases.
- Body and cover are constructed of strong and durable ductile iron (ASTM A536)
- Simplified and efficient design is easy and economical to maintain
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
