S127-2
Two-Way Flow Altitude Valve

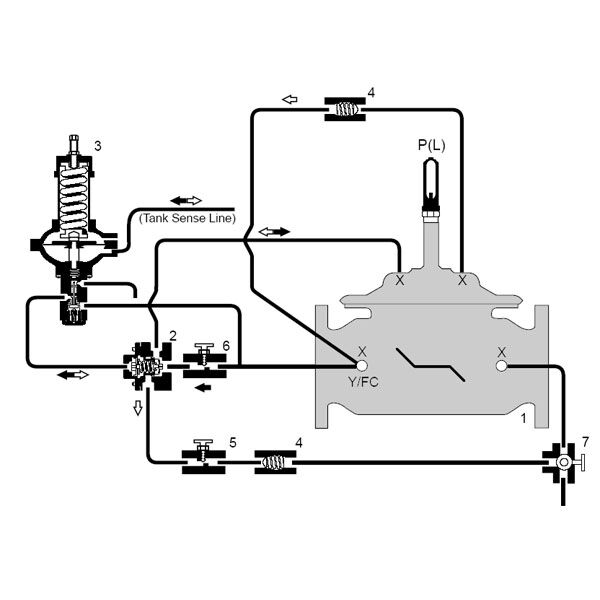

Series S127-2, S1127-2 Two Way Flow Altitude Valve is designed to open, allowing flow into a reservoir or elevated storage tank (tank fill), and close drip tight when high water level is achieved. The valve also opens allowing return flow (tank discharge), when upstream pressure falls below reservoir head pressure. It controls water level by remotely sensing static tank head pressure through a field installed sensing line, and opens when the water level is below the adjustable setpoint and closes drip tight when the level is above the adjustable setpoint.
Features
- Allows flow into a reservoir or elevated storage tank
- Valve also opens to allow return flow (tank discharge), when upstream pressure falls below reservoir head pressure
- Water level is controlled by remotely sensing static tank head pressure through a field installed sensing line.
- Lightweight Stainless Steel construction offers superior corrosion resistance for longer life
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
