DUOVENT-NPT 1/8
Part of the DUOVENT Series
Ordering Code: 0590719
UPC: 098268861884

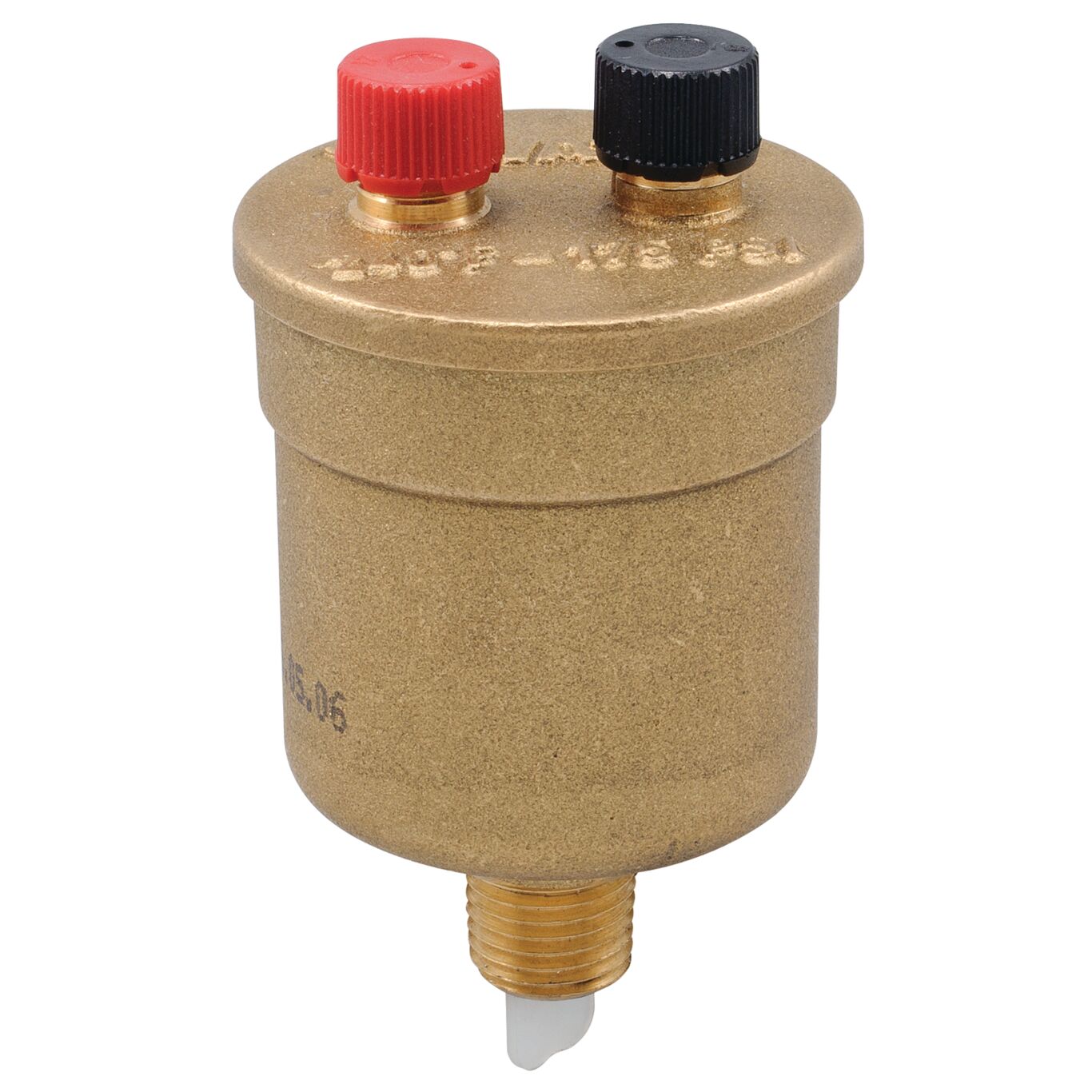

1/8 In DuoVent High Capacity Air Vent with Manual Vent Feature
This 1/8 inch high capacity air vent includes a manual vent feature and is used in commercial and residential hydronic heating applications to provide automatic air venting for hot or cold water distribution systems. It consists of a brass body construction with female NPT connection, brass cover, air vent with silicone rubber seal, shutter, polyethylene float with valve plug, automatic vent with black cap, and manual vent with red cap. It has a high capacity and high temperature rating and is ideal for use with glycol systems or for use as an anti-vacuum device. It can be disassembled for inspection and cleaning. The maximum pressure is 150 psi (10 bar).
| Specifications | |
|---|---|
| EANUCCCode | 098268861884 |
| MaximumOperatingTemperature-Fahrenheit | 240 |
| MaximumPressure-PSI | 150 |
| MaximumSteamPressure-PSI | 9999 |
| MaximumTemperature-Fahrenheit | 240 |
| MaximumWaterPressure-PSI | 9999 |
| MaximumWorkingPressure-PSI | 150 |
| MinimumPressure-PSI | 9999.00 |
| MinimumWaterPressure-PSI | 9999.00 |
| MinimumWorkingPressure-PSI | 1.50 |
| PressureReliefSetting-PSI | 9999 |
