2131
×
![]()

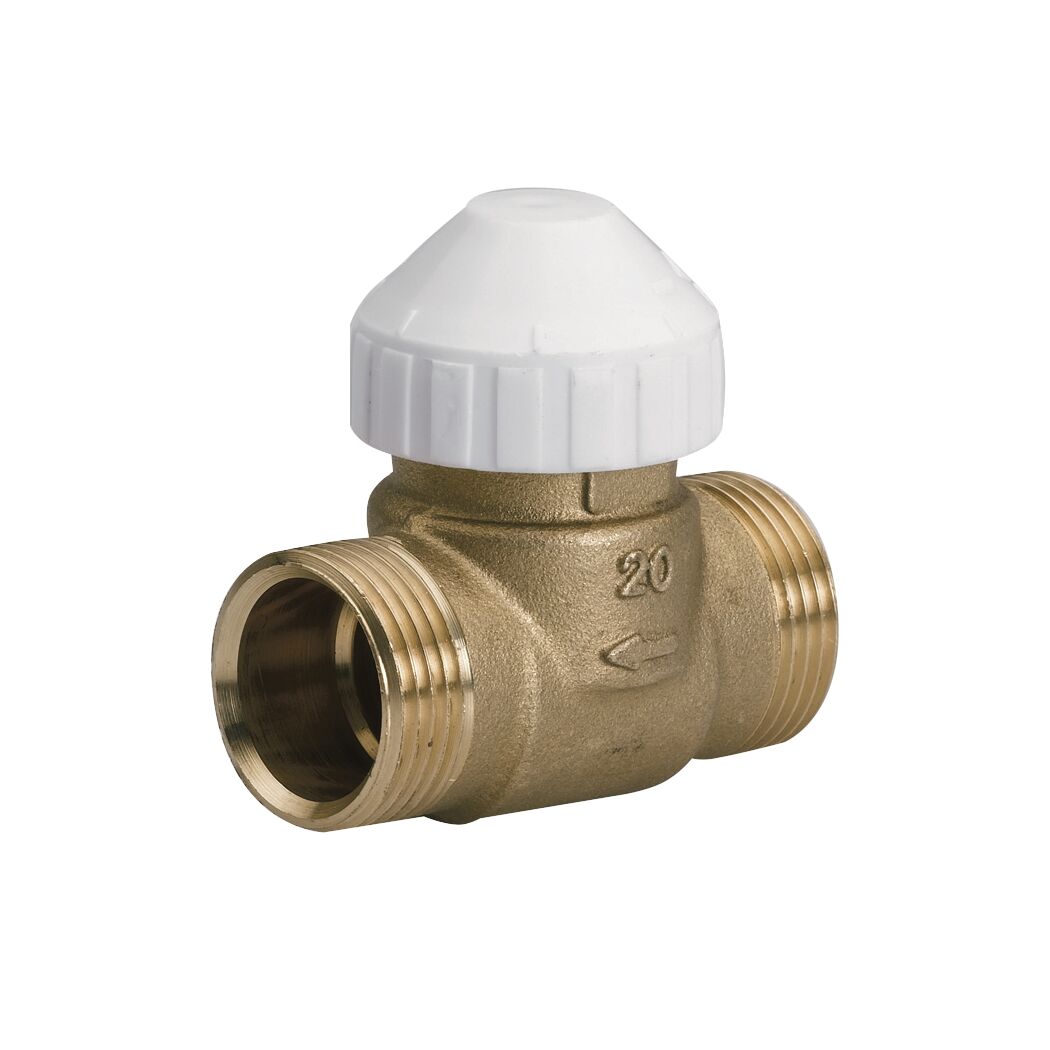

2-Way Fan Coil Valve
The 2131 Series 2-Way brass fan coil valves are used for controlling the flow of hot or cold water in heating and air conditioning systems. They are operated by electric actuators with a maximum stroke of 2.5 mm. such as the electrothermic actuator series 22C. Models are available in 1/2, 3/4 and 1 inch sizes with MPT connections.
Features
- Models are available in 1/2, 3/4 and 1 inch sizes with MPT connections
- Operated by electric actuators with a maximum stroke of 2.5 mm
- Max operating temperature of 100 degrees C
- Nominal pressure of 16 bar
